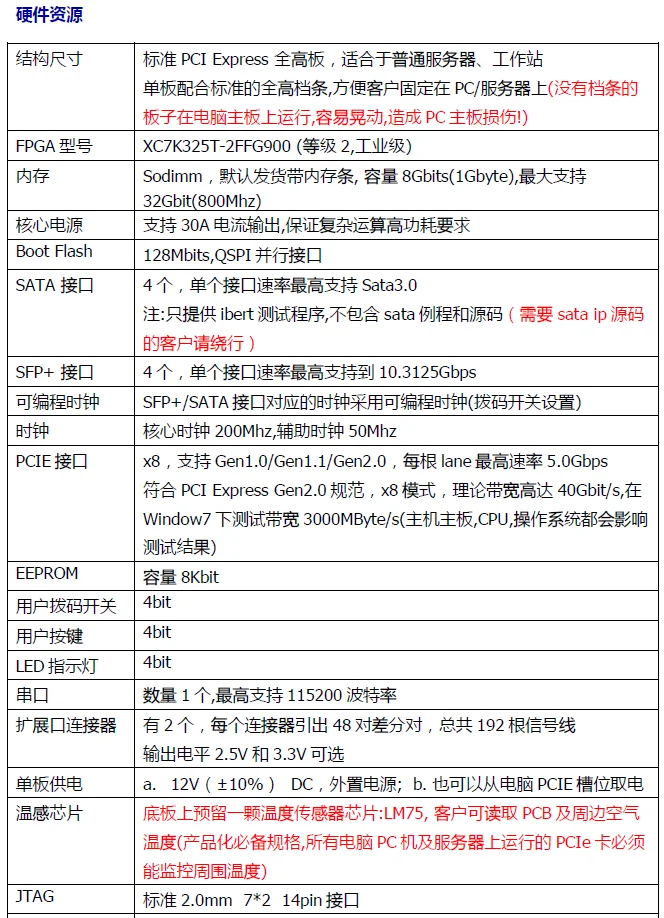

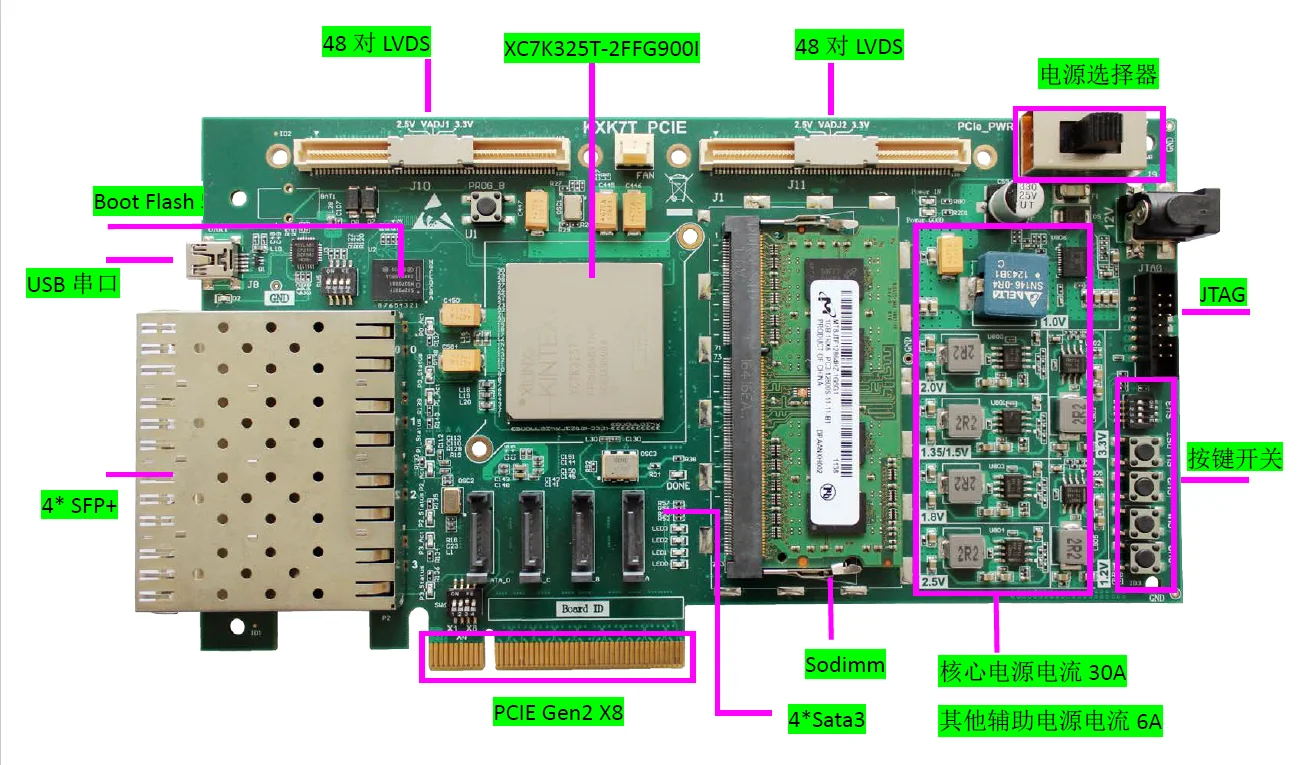

1. MC01 BoardIt Is a High-Bandwidth and High-Performance Development Platform Including PCI Express2.0 X8, Four SFP + Interfaces Supporting 10G Ethernet, High-Speed DDR3, and Rich Expansion Interfaces.

2. High-Speed Resource 4-Way 10 Gigabit SFP +,4-Way SATA Interface, PCIe Gen2 X8

3. The Maximum Supporting Capacity of the Ddrinterface Is 32gbit SODIMM, the Data Bit Width Is 64bit, and the Maximum Running Speed Is 800MHz (1600mt/S)

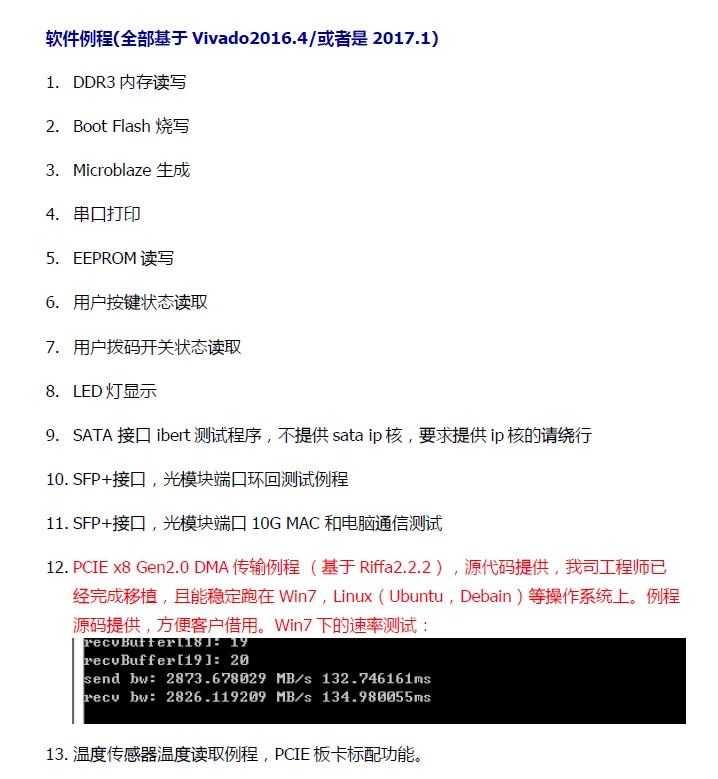

4. Provide the Source Code of the Transplanted Riffa2.2.2 Version PCIe DMA and Support Gen2.0 X8.

5. Powerful Power Supply Design, Kintex-7 Core Current Generally Requires More than 20a to Ensure Complex Operation. The Main Reason Why Most Customers Have Downtime When Running Algorithms Is That the Core Current on the Board Is Not Enough.

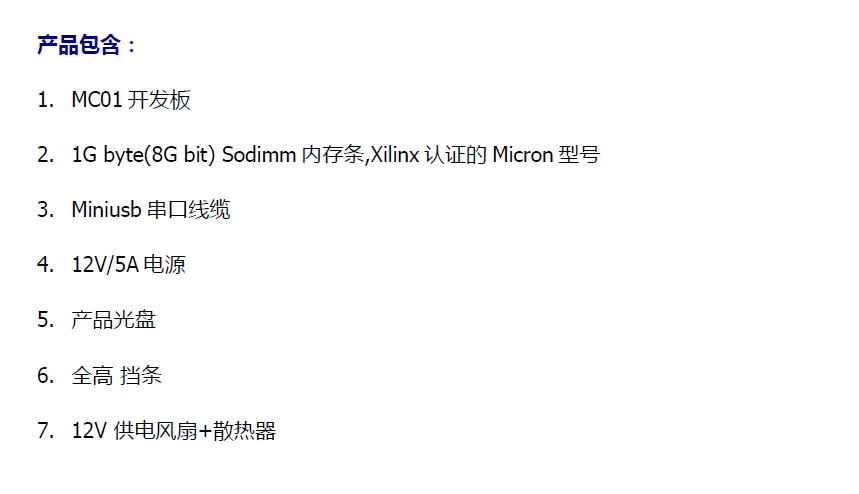

6. All the External Power Supplies Supplied by Our Company Are 12V/5A, the Current Reaches 5A, and the Maximum Output Power Consumption Is 60W,To Meet the Demand of High-Speed Computing of Single Board, as Long as It Is Kintex-7 and Uses More than 60% Internal Resources, the Chip Power Consumption Will Exceed 25W, and Low-Power External Power Supply Cannot Provide Enough Power.

7. Our Company Provides PCIe DMA Transmission Customization Service for a Long Time. If You Have Customized Needs, Please Contact Customer Service for Quotation.

8. Provide Complete Hardware Schematic Diagram (PDF Format)
