1. The long handle potentiometer adjusts the voltage and current, and can be operated freehand

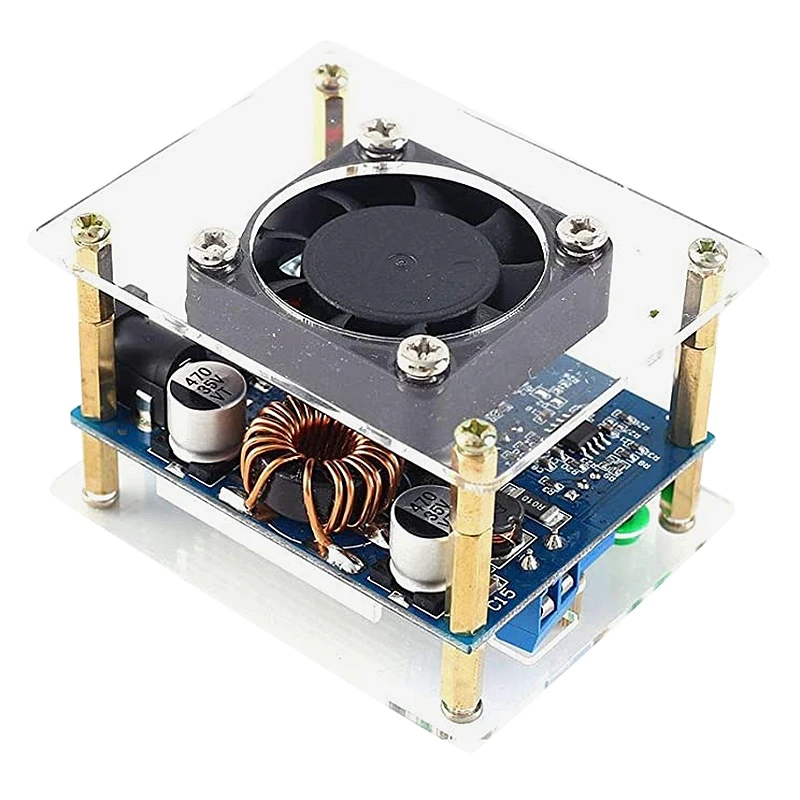

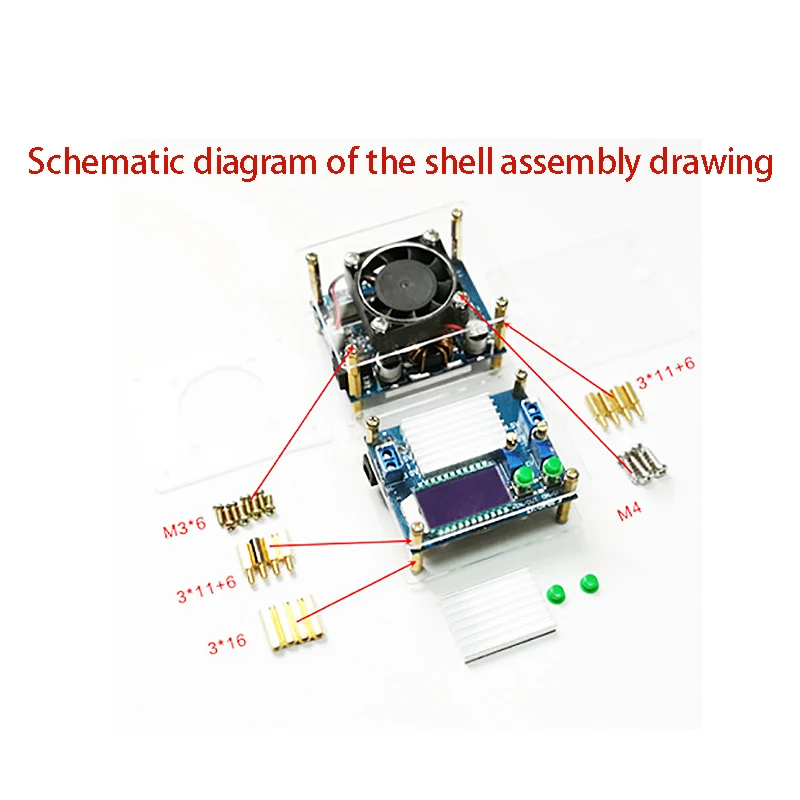

2. With large volume heat sink, with shell, optional with fan.

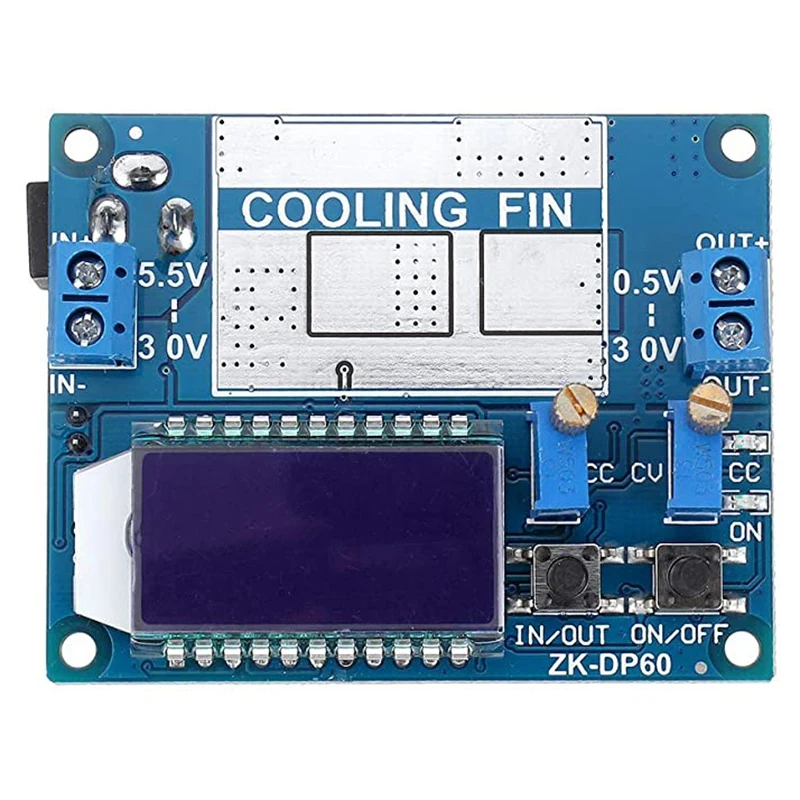

3 liquid products display input, output voltage, temperature, output current and output power.
4. Hardware protection:input terminal anti-reverse protection, the reverse connection will not burn out; output terminal anti-backflow, no additional anti-backflow diode is needed when charging the battery; software protection:overcurrent protection, overpower protection, overtemperature protection.

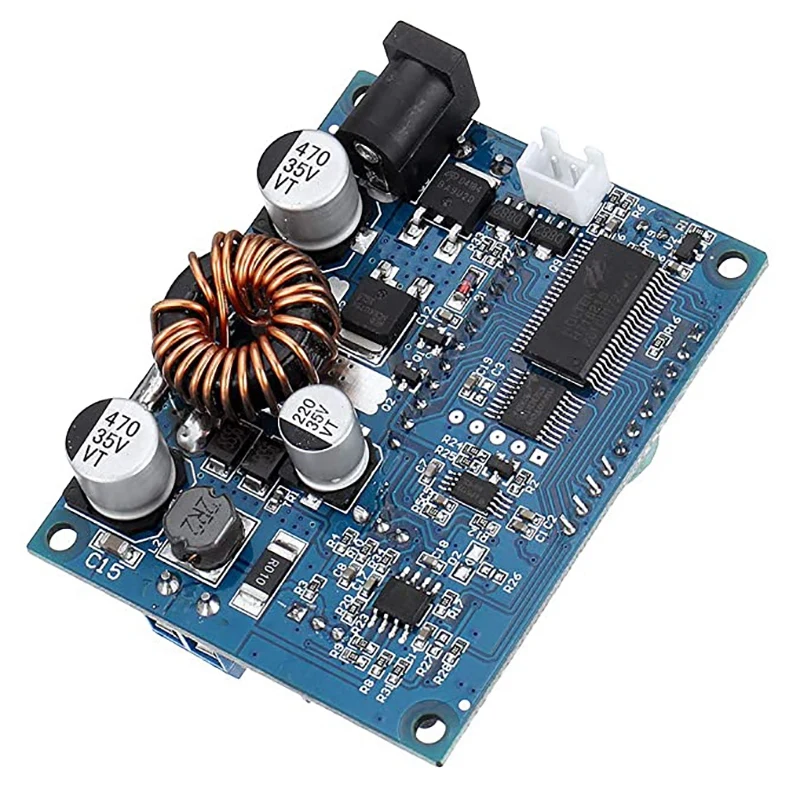

5. Can be boosted and depressurized, the output voltage can be adjusted arbitrarily from 0.5-30V, and the current can be adjusted from 0-6A With LC filter, the output ripple is small;
specification:
Input voltage:DC5.5-30V (when the input voltage is 5V, it can also achieve buck-boost, but the voltage and current measurement is not accurate; when it is lower than 4.7V, undervoltage protection)
Output voltage:DC0.5-30V

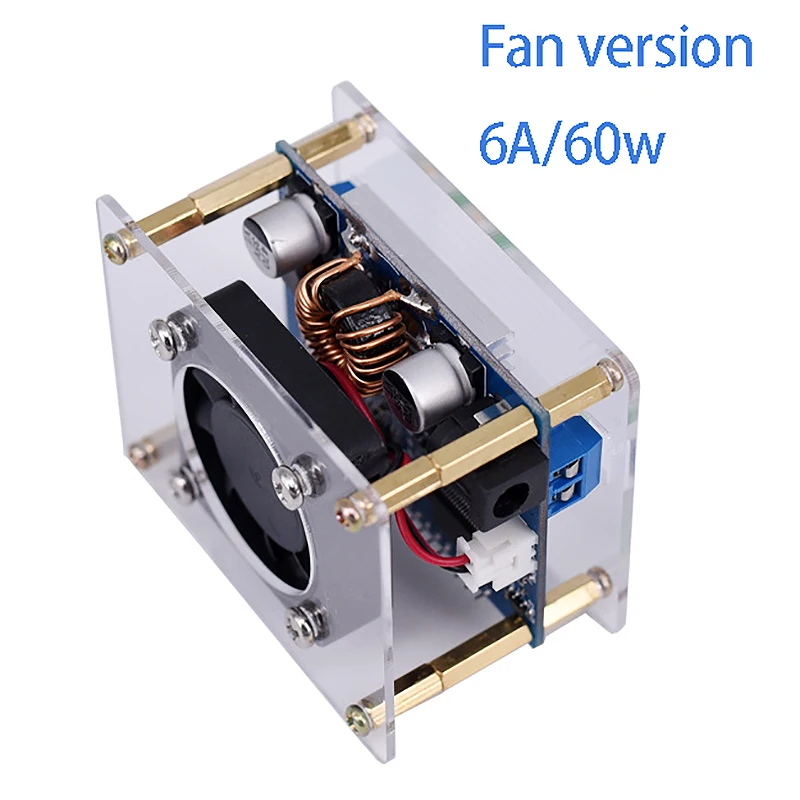

Output current:The fanless version can work stably at 4A for a long time, and the fan version can reach 6A
Output power:35W flat version without wind, 60W version with fan
Voltage display resolution:0.01V, accuracy error 1%
Current display resolution:0.001A, accuracy error 1%
Conversion efficiency:about 88%
Soft start:yes (very high power load module may fail when starting)
Input reverse connection protection:yes, reverse connection does not burn
Anti-backflow at the output:yes, can be directly connected to the battery
Short circuit protection:yes, the output can be shorted directly
Temperature protection:100Celsius
Power protection:60W
Overcurrent protection:6A
Working frequency:180KHZ

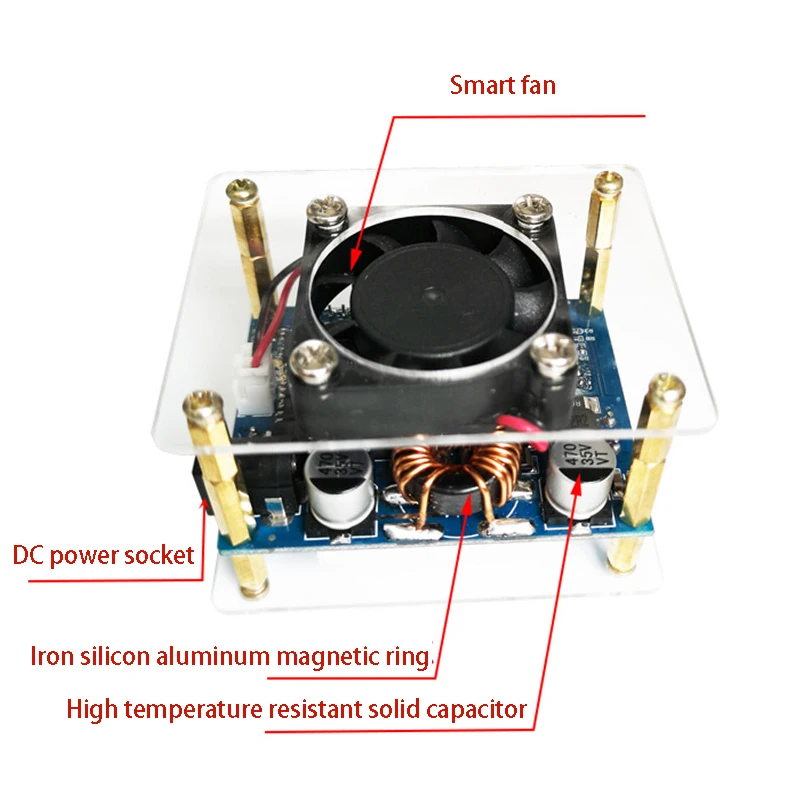

Fan rotation conditions:current is greater than 3A, or power is greater than 20 watts, or temperature is greater than 40 Celsius.
Mounting hole:diameter m
colour:Photo Color
Material:ABS
size:72*59*4m
Package Contents:
1 * 60W buck-boost power module
Only the above package content, other products are not included.
