2Pcs Mx50 Se 100Wx2 Dual Channels o Power Amplifier Board Hifi Stereo Amplifiers Diy Kit 2Pcs Mx50 Se 100Wx2 Dual Channels o Power Amplifier Board Hifi Stereo Amplifiers Diy Kit Supply voltage: + -15 v to + -45 v
Output power: 100W8R (+ -42 v)
Voltage gain GAIN: 34 times
Input sensitivity: 1.2 v 100 w RMS 8 Europe
SNR: more than 98DB
Distortion: Less than 0.009 THD 1 K HZ 1OW
Output current quiescent current per IQ channel Approx. 30MA
Installation: 649 669 must be installed on the support the radiator.
After installation it does not require any adjustment, the quiescent current of each tube is approximately 30MA. This version does not need a flight line. Just take two bundle installed in the radiator can be.

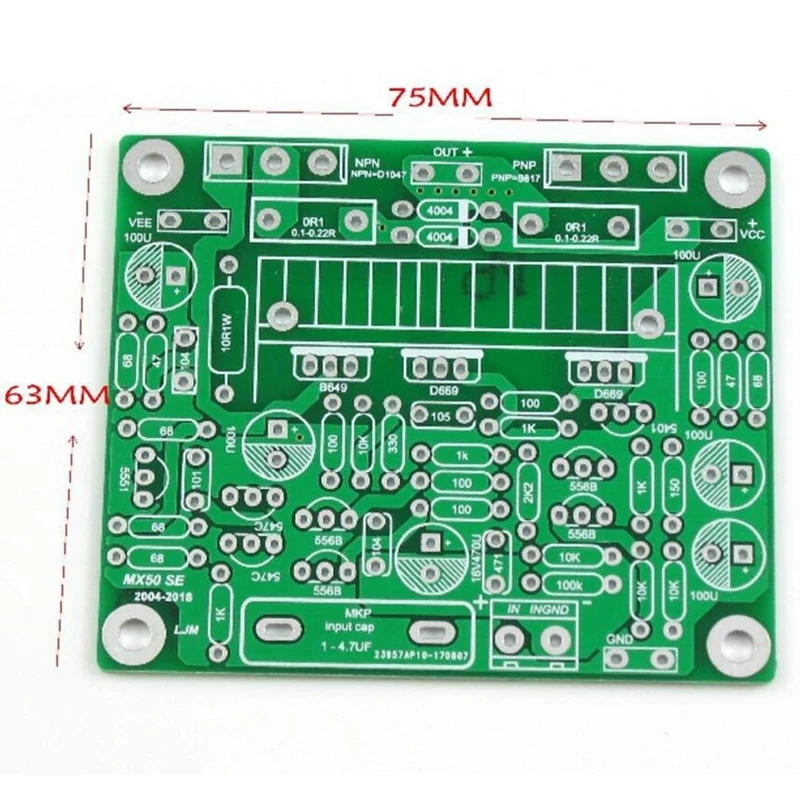

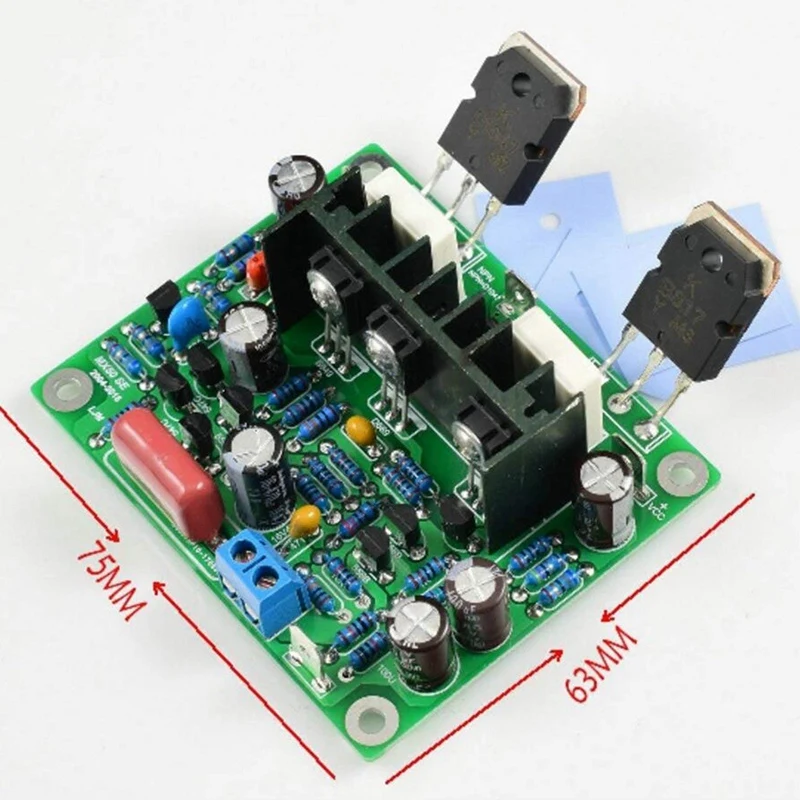

size:63*75mm
Material:PCB
colour:green
Package Contents:
2 * Power amplifier board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
