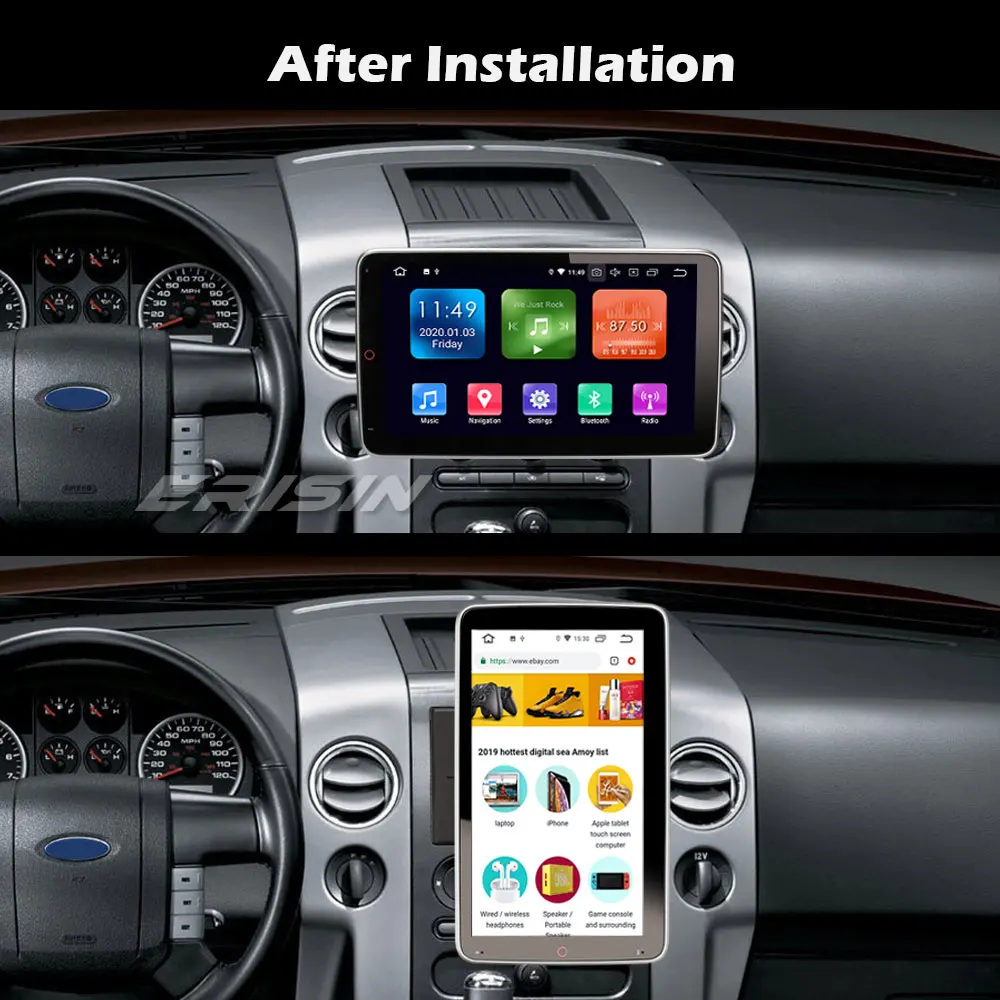

This autoradio is a ISO 2 Din Universal Unit, if you confirm the 2 din body with dimension 178mm*120mm*100mm can be put into your dashboard, then welcome to buy!

Before this purchase, you can check if our shop has special unit for your car, it will have canbus to fit and use related functions.

Key Features:

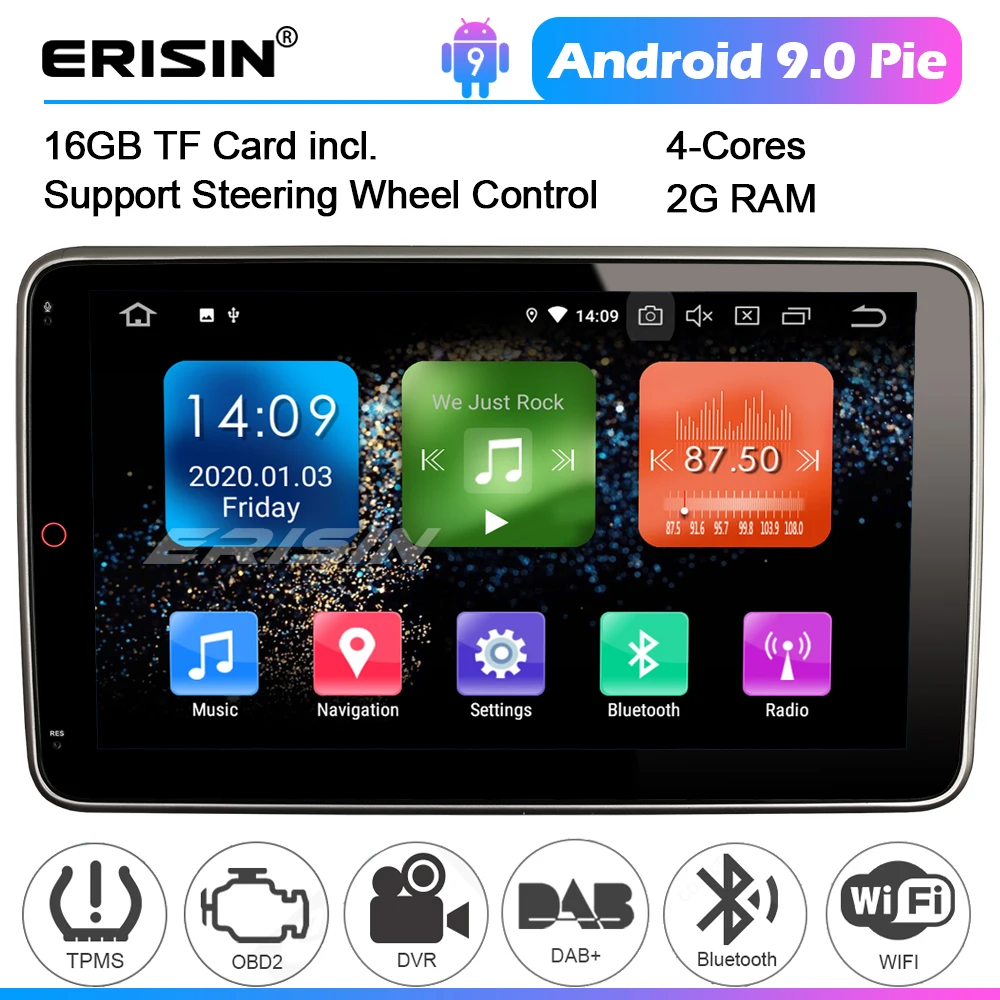

- Android 9.0 Pie OS, Quad Core, 2GB RAM and 16GB ROM, 1 Card/4 USB up to 5*128GB extended Storage.
- ISO Double 2 Din universal unit with 10.1 Inch super wide 2.5D G+G IPS Capacitive Touchscreen

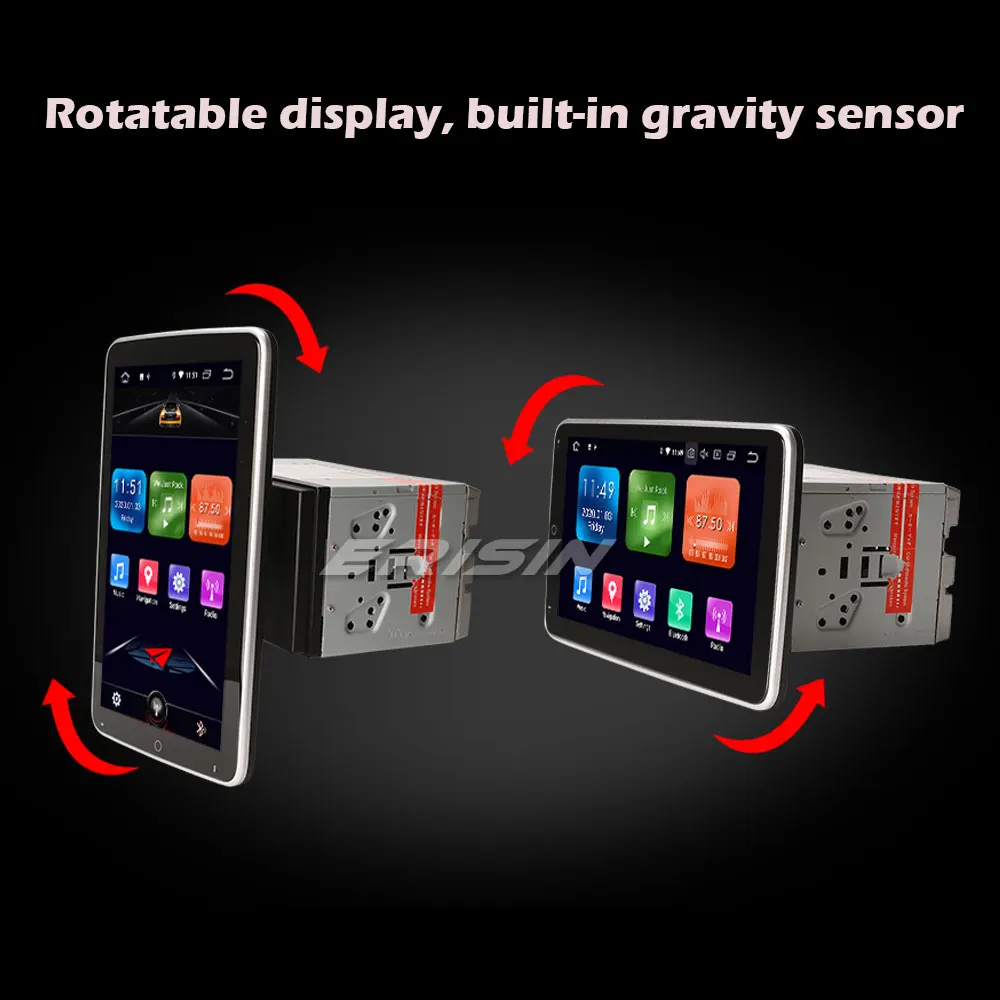

- Detachable Screen design with rotating joint, The Screen can be freely rotated to get the optimal viewing angle.
- Built-in gravity sensor and support rotatable display. One unit, two screen display methods

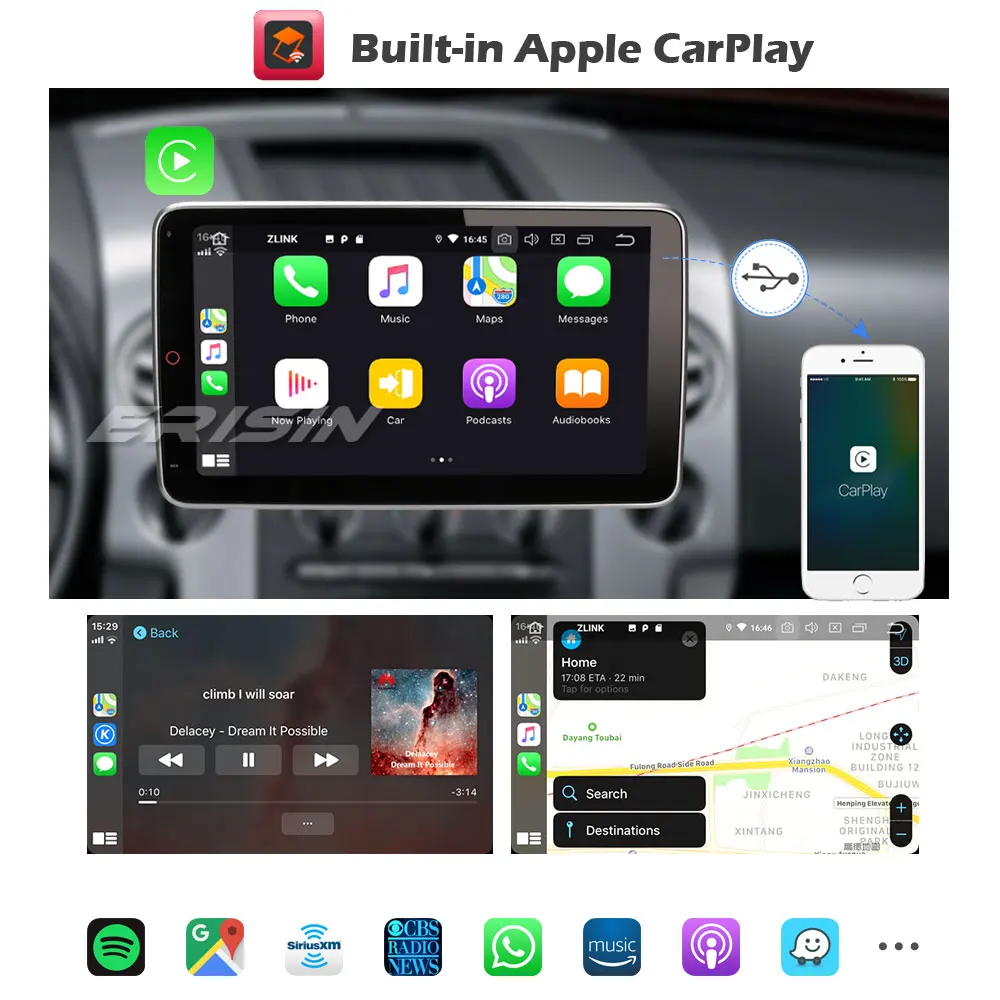

- Built-in Apple CarPlay module, support iPhone iOS 7.1 and above version to use the latest CarPlay function.
- Built-in Bluetooth 5.0 with APT-X Audio technology, BT-Music can achieve CD-like sound quality.
- Built-in GPS, USB, TF, Radio, RDS, WiFi, Clock, Calculator, Calendar.
- Support DAB+, DVB-T/T2, TPMS , OBD2, DVR, Rear Camera, AV-IN, 4G etc. Need to buy optional accessories.

- Support Mirror Link with iPhone via WiFi and with Android Smartphone via USB or WiFi.

Buy optional items to get more function!

​

ES1123U 10.1" IPS Screen Android 9.0 Car Multimedia with GPS/BT5.0/TPMS/DVR/DTV-IN/DAB+/CarPlay...

General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 10.1 inch
- Install Size: 2Din Size: 178mm*120mm*100mm
- Package Size: 340mm*260mm*210mm
- Shipping Weight: 4.0kg

System
- Operation System: Google Android 9.0
- CPU: Rockchips PX30 1512MHz Cortex A35
- RAM: 2GB
- ROM: 16GB
- Extended Storage: support TF Card/U-Disc up to 128GB

Display
- Screen Type: 2.5D G+G IPS Screen
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 5 live wallpapers, 43 standard wallpapers, support User's wallpaper
- Change Apps-Icon Position: Yes

Internet
- WiFi Internet: Built-in WiFi Module, support 802.11b/g/n, support WiFi Hotspot
- 3G/4G Internet: USB 3G/4G Dongle not included, just contact us to buy it together
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail...
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT

Audio
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB

Video
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG,
DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP,
MPG ect. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: Common Video Output (AV)

GPS
- Operation System: Android 9.0
- Support Maps: IGO, Sygic, Waze maps for Android 9.0
- Support offline navigation: Yes, 16GB TF Card incl.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as google maps

Bluetooth 5.0
- Hands Free: Yes
- Qualcomm APT-X Audio Technology with Kalimba DSP: Yes, BT-Music can achieve CD-like and close to lossless sound quality.
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back, external Mic. incl.

Radio
- Main Chips: TEF6686
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)

USB
- Position: 4 USB On the Back, can be connected with Media, 3G/4G, TPMS, Camera, DAB+ Box, Smartphone
- Function: 3 USB Port can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB+ Box, Smartphone etc. and 1 USB can be connected with iPhone to use CarPlay function
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

TF
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 128GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P

CarPlay
- Built-in CarPlay Module: Yes, just connect your iPhone with USB charging cable to use this function
- Built-in CarPlay App: Yes, the name is ZLINK
- Support Device: iPhone iOS 7.1 and above
- Connection Port: USB
- Support wireless connecting: No
- Support download other apps in CarPlay interface to use: Yes

Mirror Link
- Ready to use: Yes
- Built-in Mirror Link App: Yes, the name is EasyConnection
- Support Device: iPhone iOS 7.1 and above, Android phone with Android 5.0 and above
- Connection: iPhone via WiFi and Android Phone via WiFi or USB
- Unit's Screen Control Phone: Just support the most of Android SmartPhones

Car DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes
- Play recorded Video directly: Yes
- Storing Position: Card/USB Storage can be changed

TPMS-IN
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control: Yes

DAB(+)-IN
- Built-in DAB Player App: Yes, just connect a DAB+ Box to use this function
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch unit's screen to control the connected DAB+ Box: Yes

DTV-IN
- Built-in DAB Player App: Yes
- Connection Port: Special
- Power Supply to connected DTV Box directly: Yes, you can connect our DTV Box to achieve this function
- Touch unit's screen to control the connected DTV Box: Yes, you can connect our DTV Box to achieve this function

Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support steering wheel control, built-in CanBus decoder (it cost GBP30 in the market) included
- Support change panel light colors, many RGB-colors can choose
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB/TF
- Detachable Screen design with rotating joint, The Screen can be freely rotated to get the optimal viewing angle.
- Built-in gravity sensor and support rotatable display. One unit, two screen display methods

Input
- AUX Video In: One
- Rear-View Camera Video In: One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS Box In: One
- DTV Box In: One
- DAB+ Box In: One
- Car DVR In: One
- CarPlay In: One

Output
- Video Out: Two
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

Accessories
- 1*User's Manual in English
- 1*RCA AV Cable
- 1*Power Cable with ISO Connector
- 1*SWC and other Control Cable
- 1*External microphone Cable
- 1*USB OTG Cable
- 1*GPS Antenna
- 1*WiFi Antenna
- 1*Install Frame and Fittings
- 1*16GB TF Card
