Specification:

Size: 79 * 43 * 48mm / 3.1 * 1.7 * 1.9"

Installation size: 76 * 39mm / 3 * 1.5"

Voltage measurement range: AC 80 -300V / AC 200 -450V (Optional)

Current measurement range: AC 0A -99.99A, the current display resolution is 0.01A, when it exceeds 100A, it is displayed as 100.0A

Active power range:

When the "display range" is between 0 -10000W, the power display range is: 0 -9999.9W,

When the "display range" is higher than 10000W, the power display range is: 10000 -22000W

Power range:

When the "display range" is within 0 -100 KWH, the power display is 9999.999.

Above 10KWH, power display 00000.99KWH

The maximum display is: 9999999KWH

Accuracy: 1% ± 2

Measurement speed: 2 times / sec

Working temperature: -10°C -50°C

Working humidity: 10 -80% (no frost)

Working pressure: 80 -106kPa

Precautions:

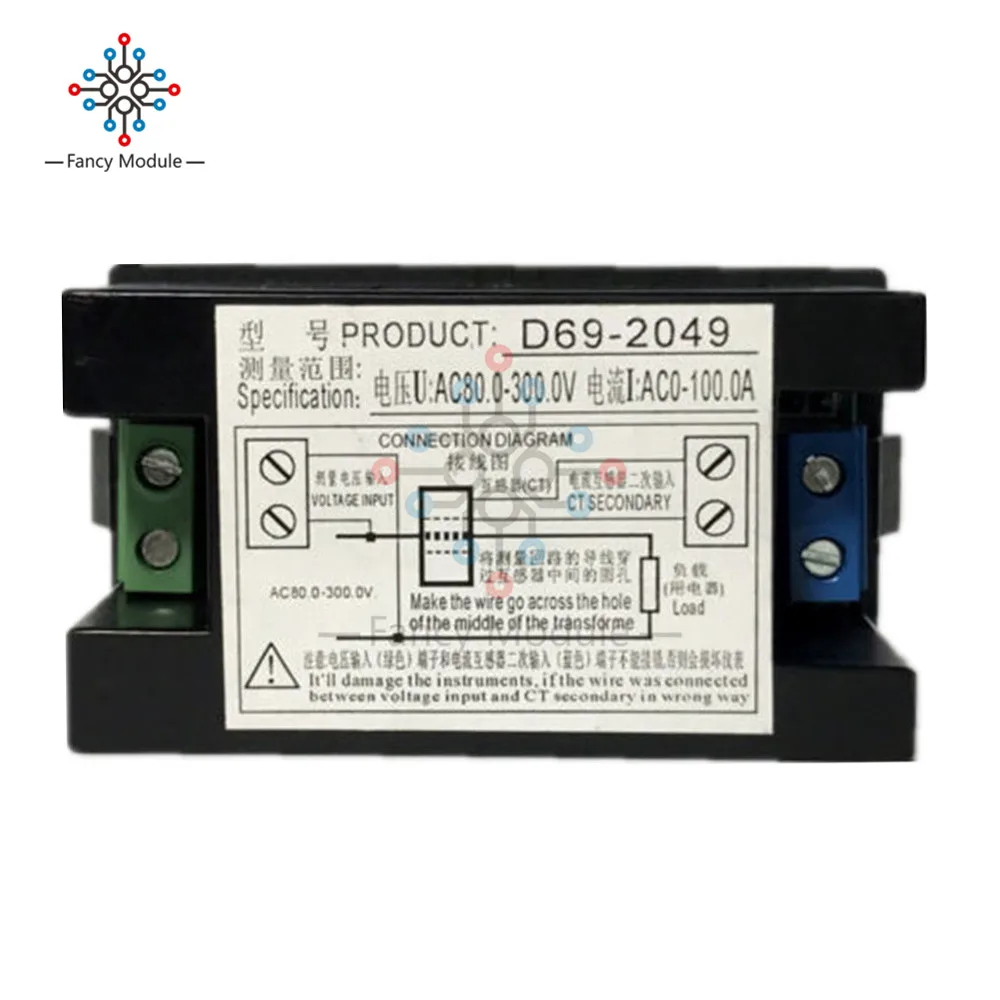

The voltage input (green) terminal and the current transformer secondary input (blue) terminal wiring must not be wrong, otherwise the instrument will be damaged.

This instrument is only suitable for AC 50-60HZ mains power supply. It can't be used for square wave. The inverter output and calibration are measured by positive wave circuit, otherwise the instrument will be damaged.

The installation process can not squeeze the LCD screen of the instrument, otherwise there will be garbled/breaking code.

Package Included:

1 * Multimeter

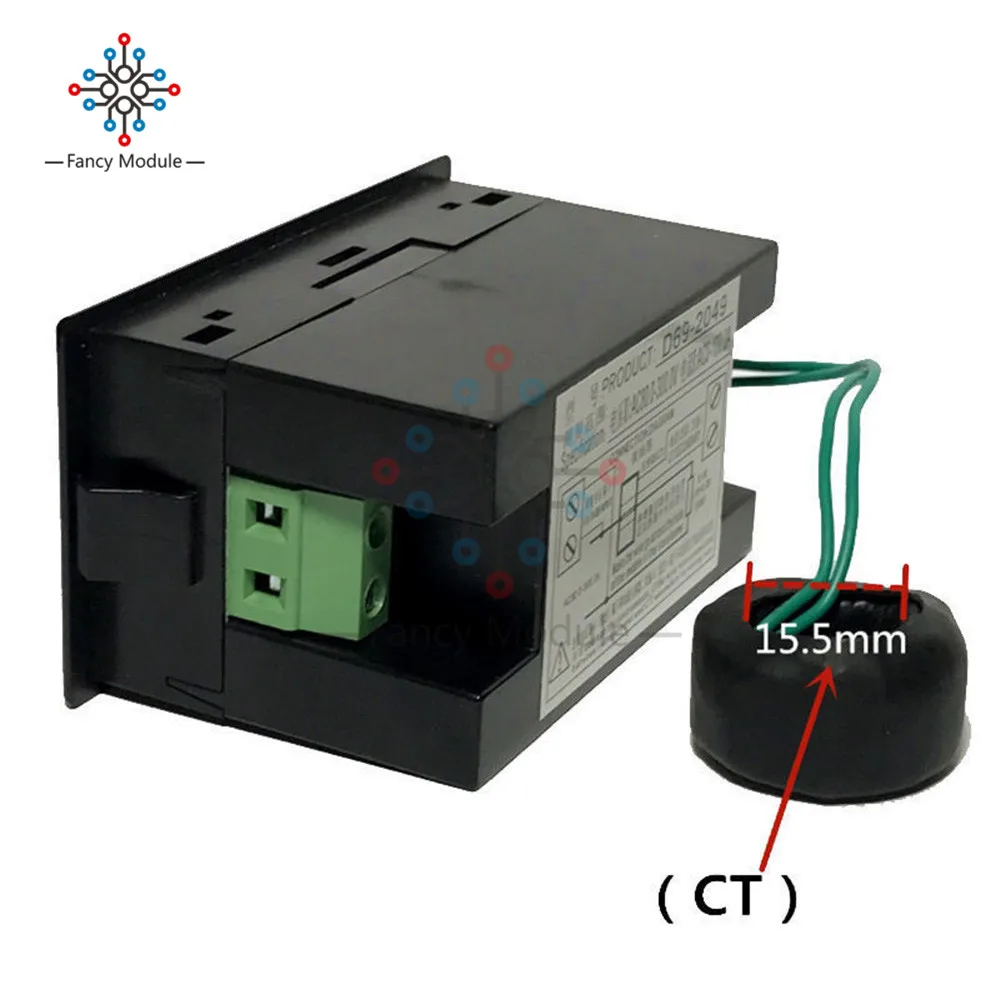

1 * 100A Coil
