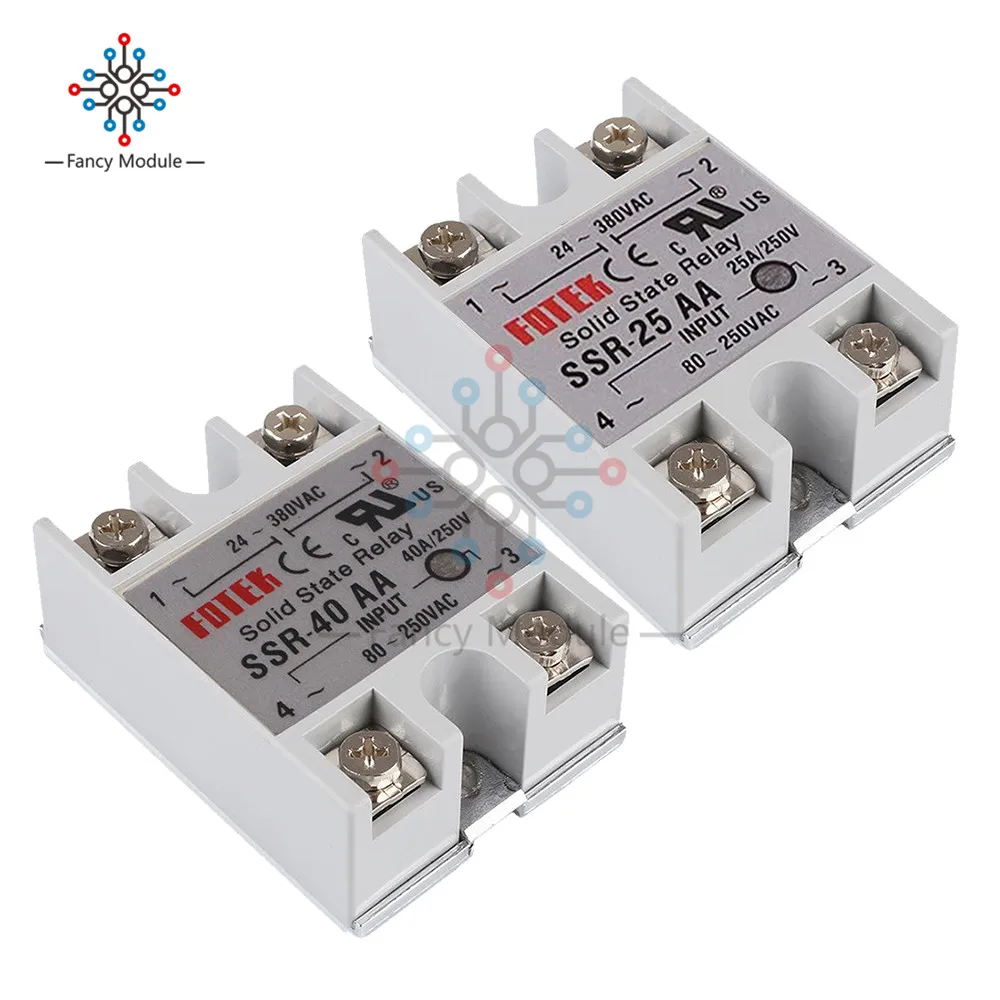

[Solid State Relay]

Description:

SSR series solid state relay with flame-retardant plastic housing, epoxy casting compound, wiring screw terminals with high structural strength, impact strength, vibration resistance, the input drive current small can be convenient and computer terminals and a variety of digital programmable circuit interface.

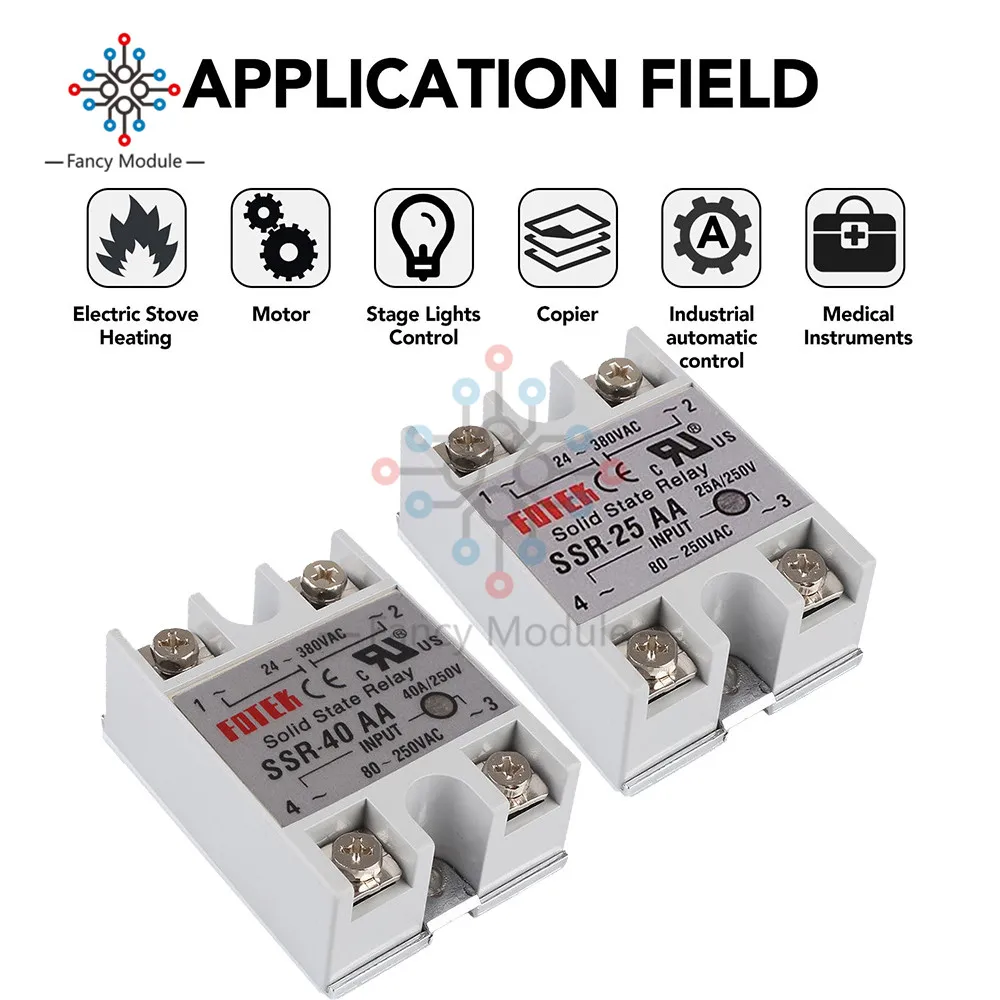

Widely used in automation and automation Control of petrochemical plants, food machines, packaging machines, textile machines, machine tools, plastic machines, fitness machines, entertainment possibilities. Especially suitable for corrosion, moisture, dust, and other harsh environments, and frequent switching the occasion, AC contactor is updated alternative.

Specification:

Item name:Solid State Relay

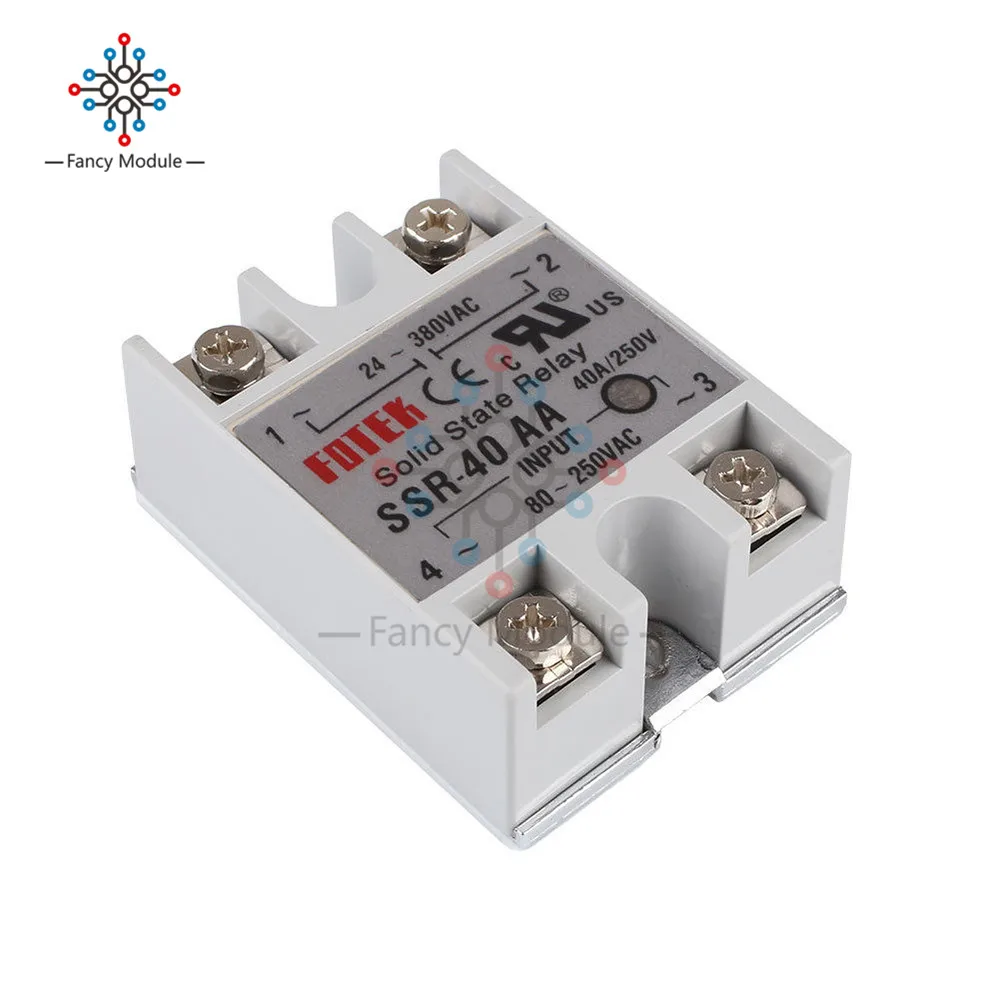

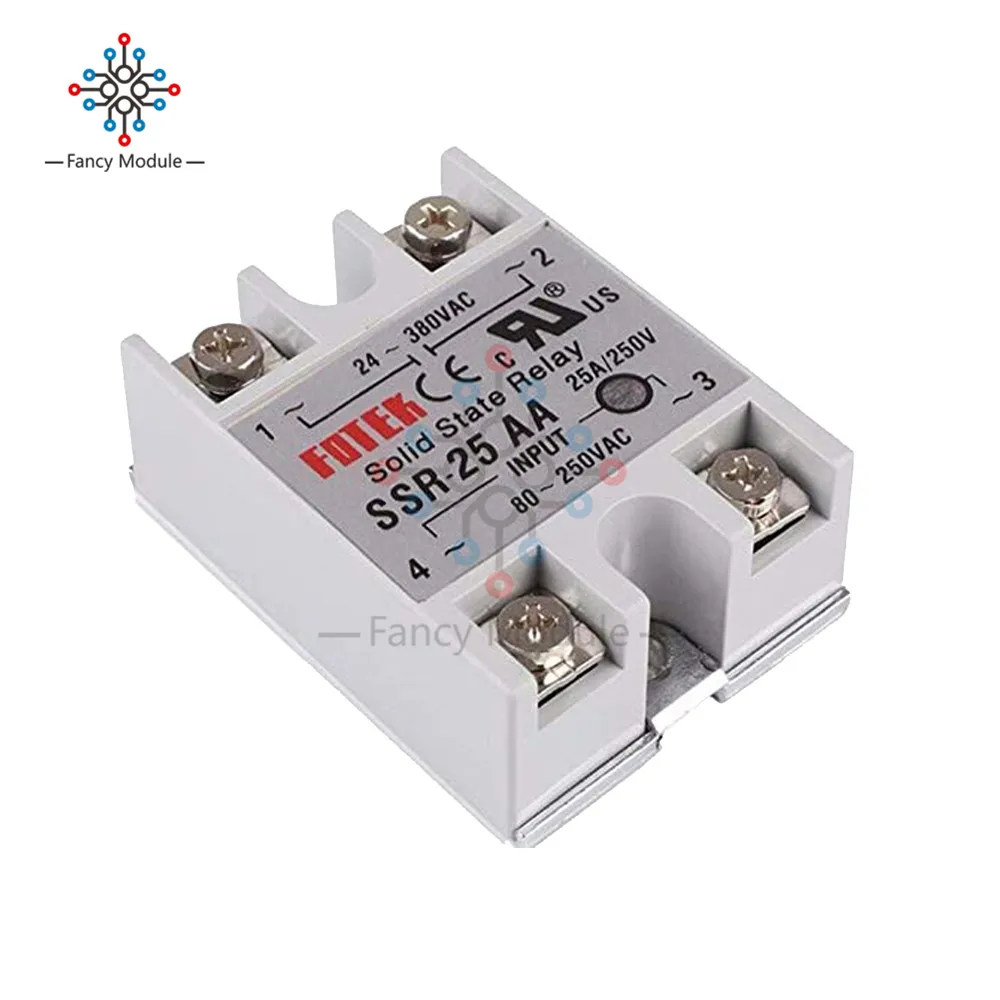

Product model: SSR-25AA, SSR-40AA (optional)

Rated current: 40A/25A

Materiel: Metal + ABS

Theory: Solid State Relay

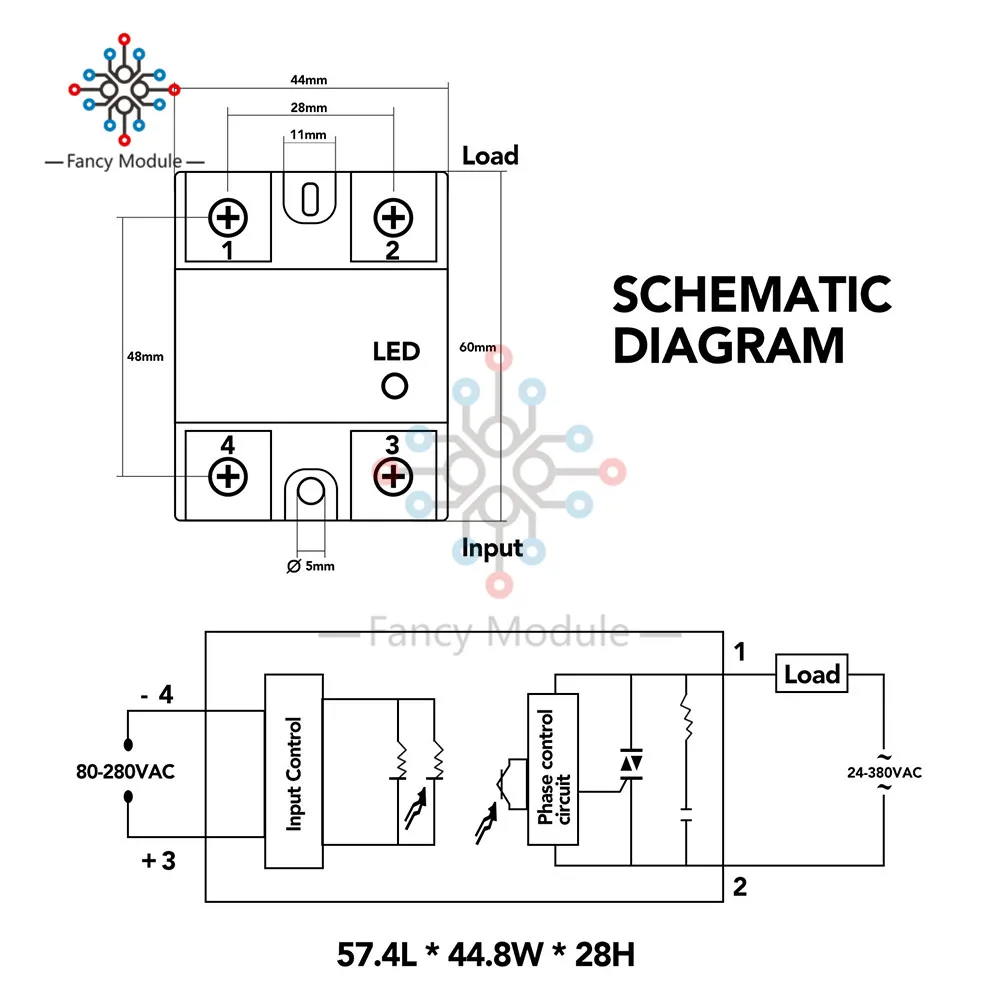

Input: 80-250V AC

Output: 24-380V AC

Rated operating frequency: 50/60Hz

Control type: zero-crossing trigger type

On-off time: ≤10MS

Electrical life: 21 million

Working temperature: - 20 - 85℃

Medium Pressure Resistance: 2500V

Package Included:

1 x Solid State Relay

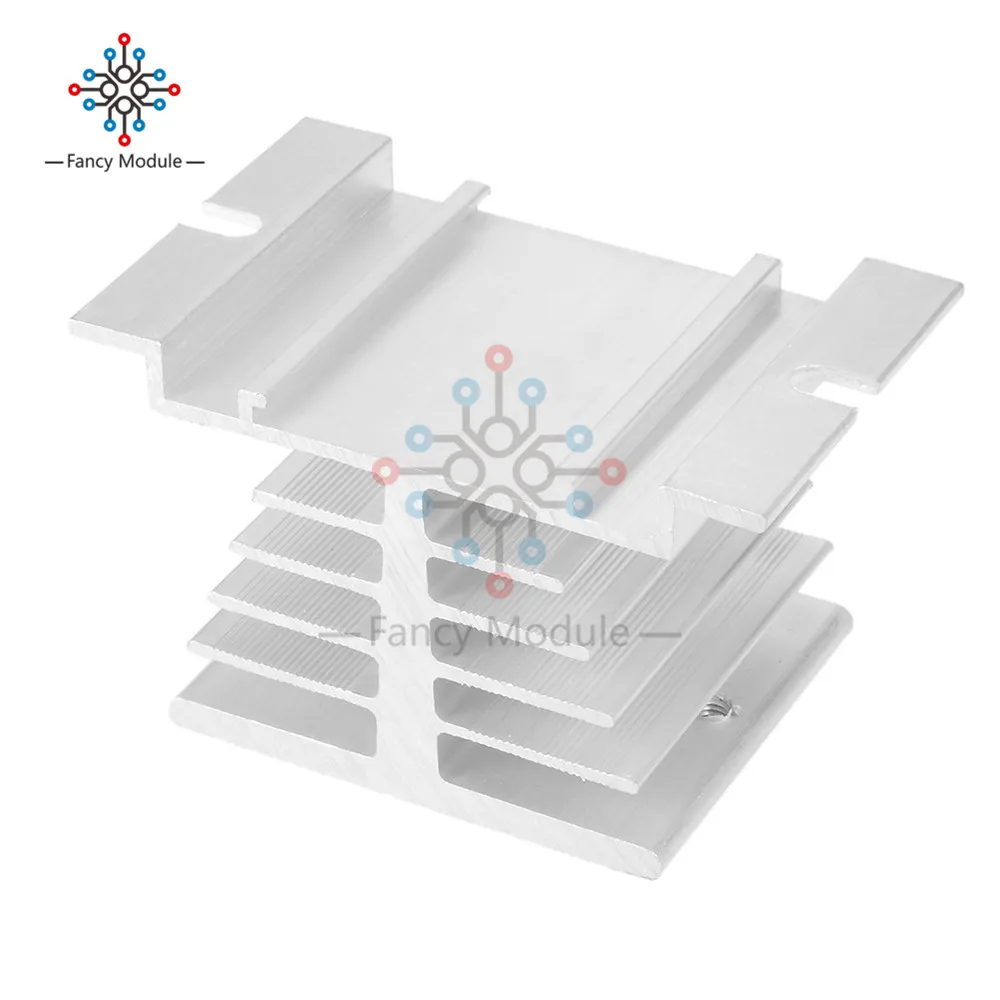

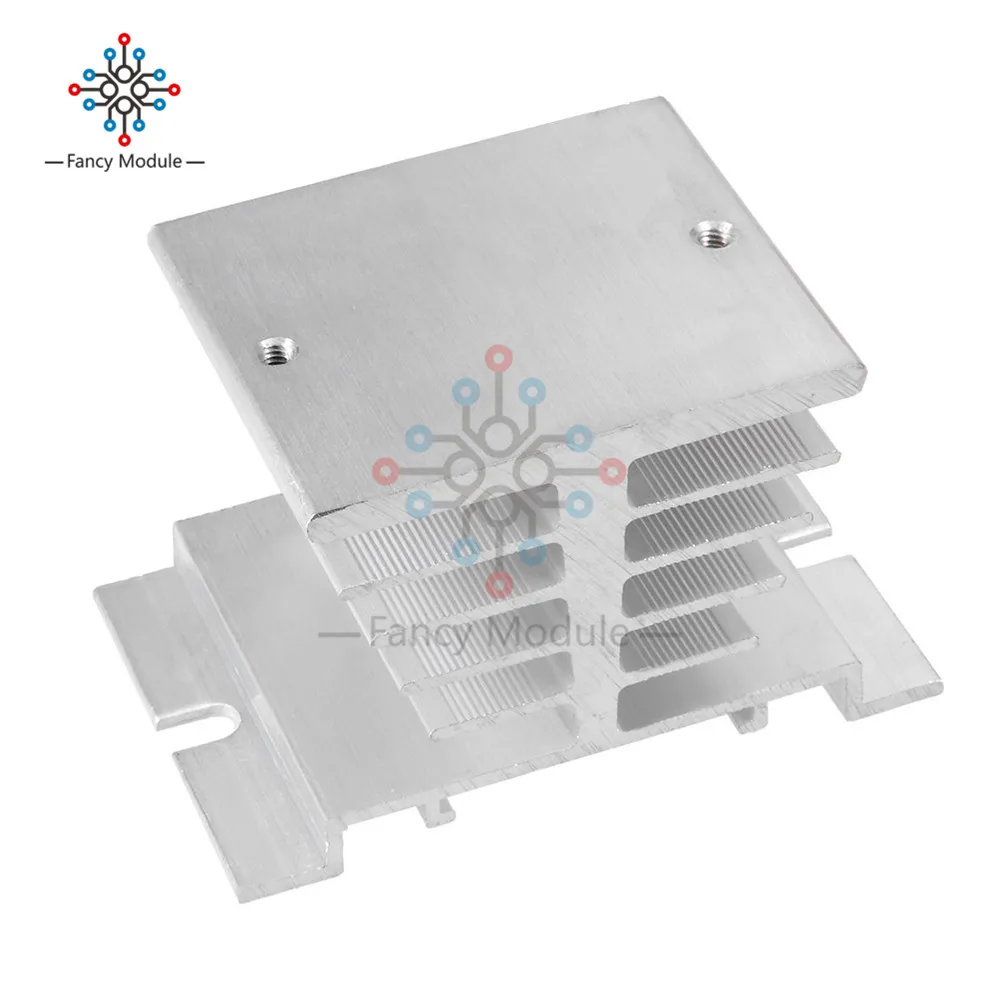

[SSR Heatsink]

Specification:

Product Name: Aluminum Heat Sink

Fit for Single Phase SSR

Material: Aluminum

Main Color: Silver Tone

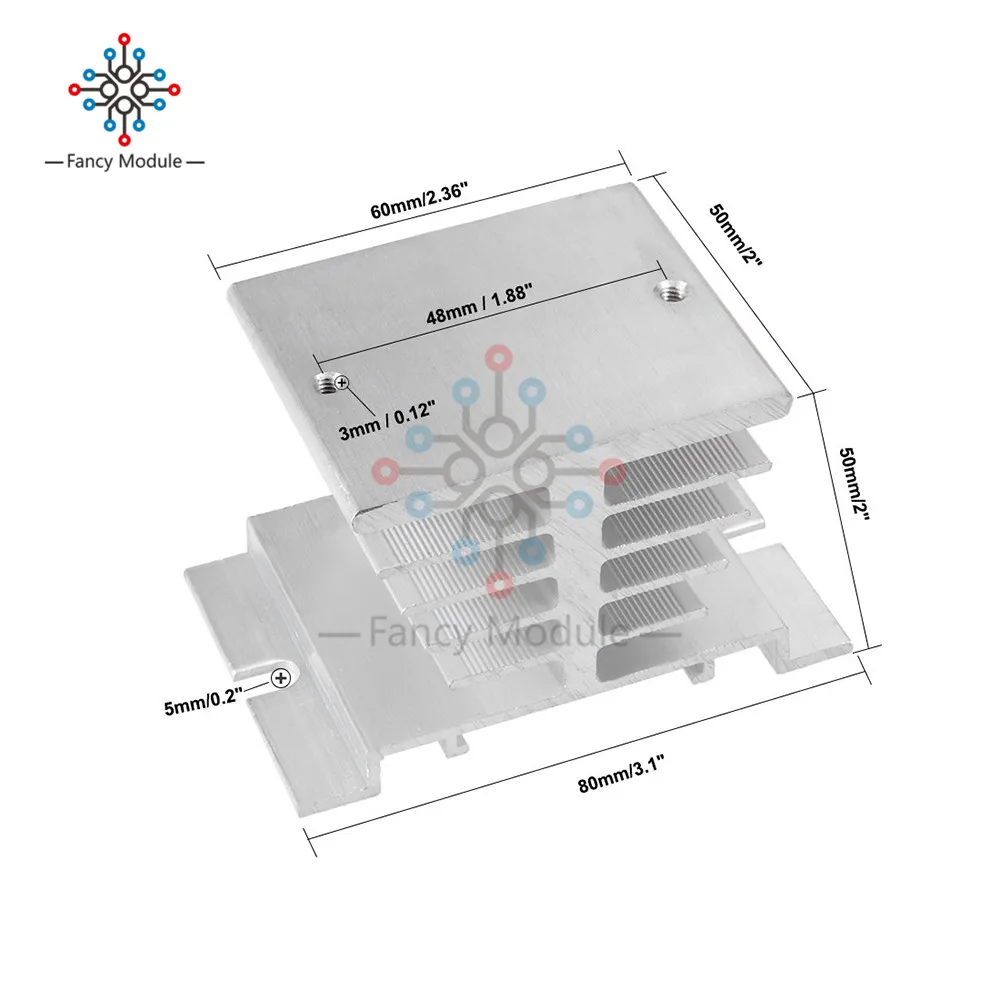

Total Size (Approx.): 8 x 5 x 5cm / 3.1-inch x 2-inch x 2-inch (L*W*H)

Mounting Hole Diameter (Approx.): M4

Threaded Hole Distance: 48mm / 1.88-inch

Base Mounting Hole Diameter: 9 x 5mm / 0.4" x 0.2"(L*W)

Size Roof (Approx.): 60 x 50mm / 2.36-inch x 1.97-inch (L*W)

Size Foot (Approx.): 80 x 50mm / 3.15-inch x 1.97-inch (L*W)
