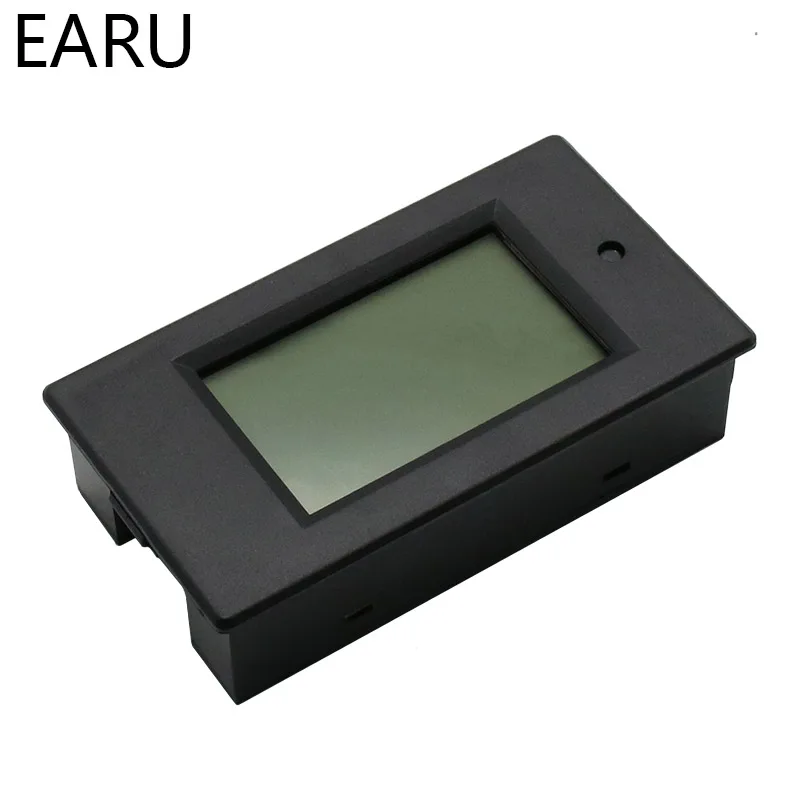

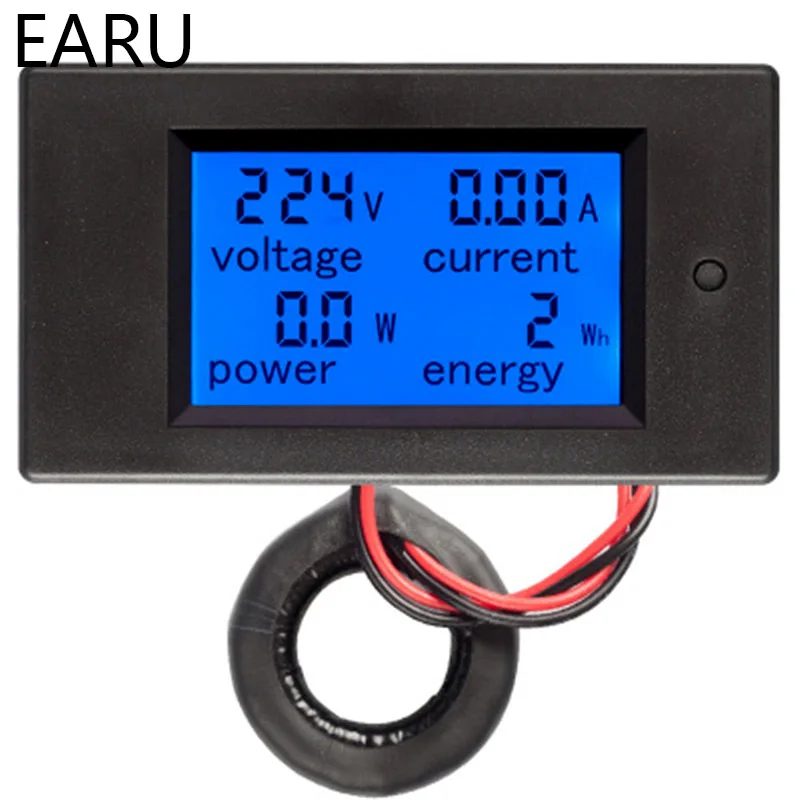

Latest AC 100A 20A power meters monitor Volt Amp kWh watt digital cambo meter with case,100% brand new and high quality

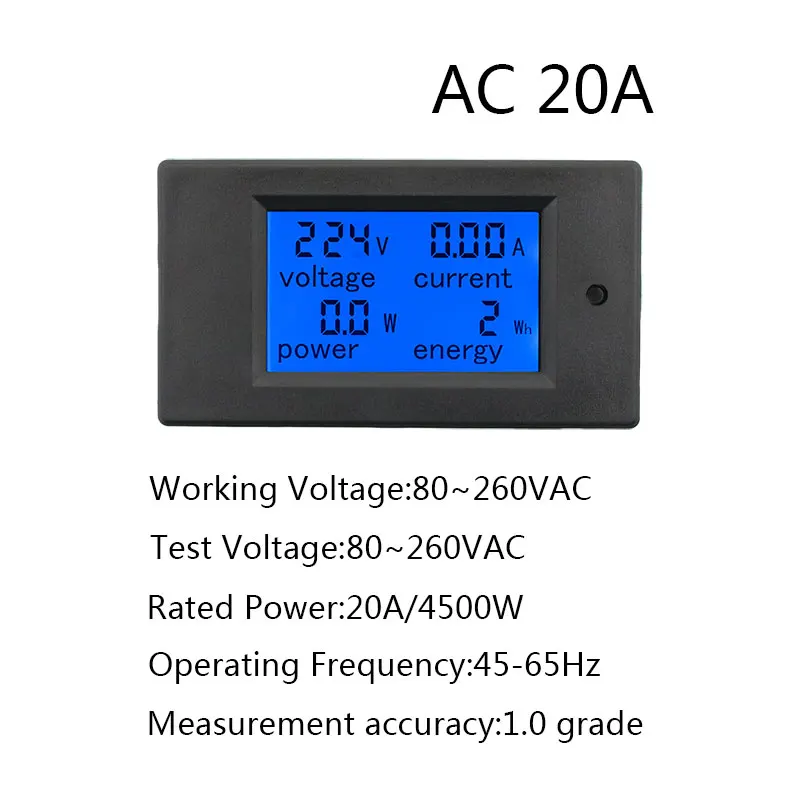

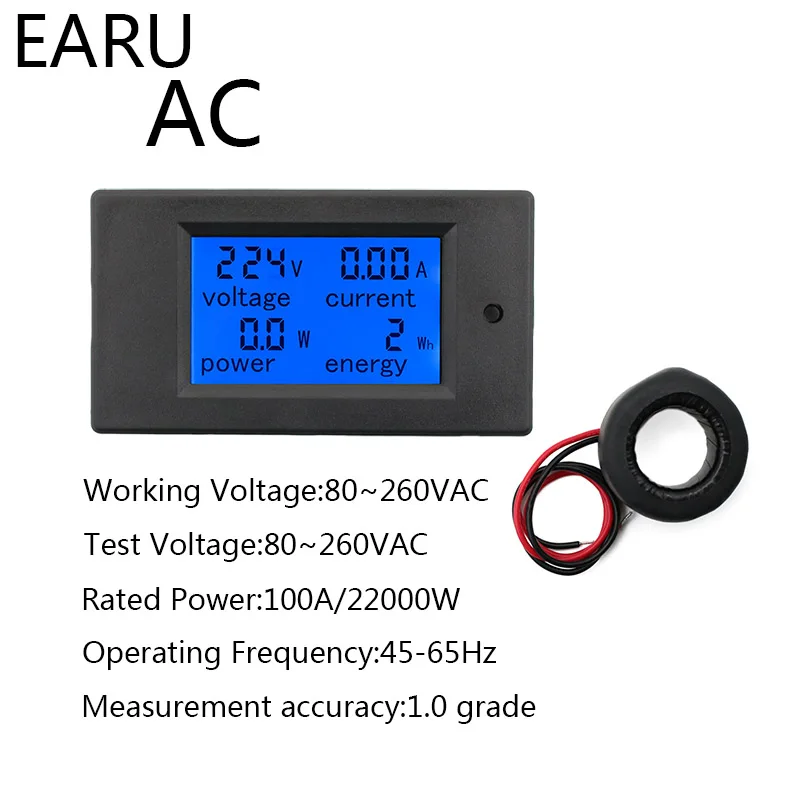

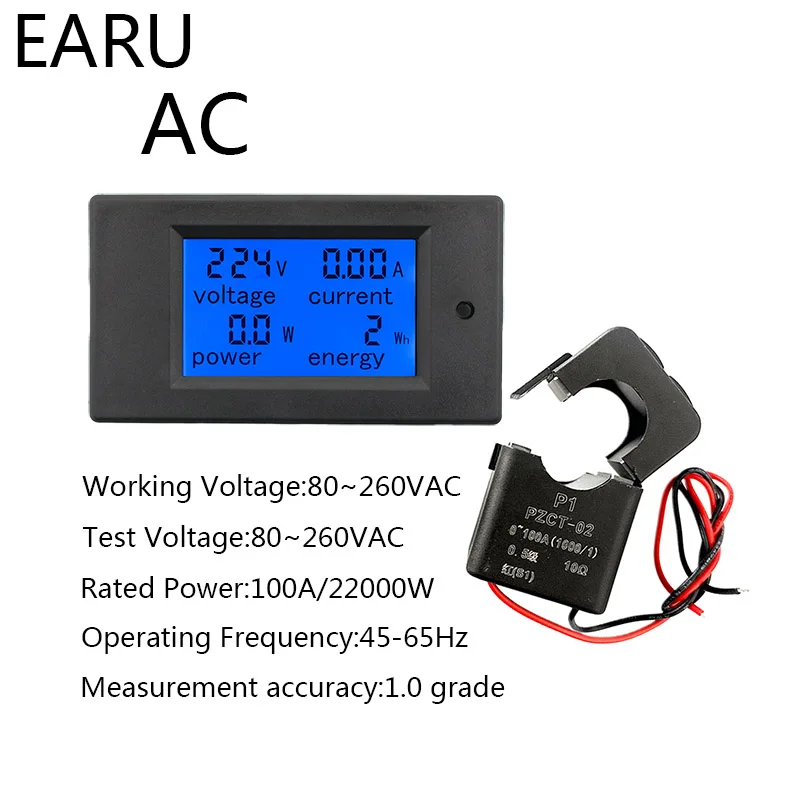

Specification:
- The working voltage: 80-260VAC
- Test voltage: 80-260VAC
- power: 100A (20A) /22000W
- Working frequency: 45-65Hz
- The measurement precision: Class 1

About Function:
- Measurement and monitor the electrical parameters(voltage, current, kwh, watt)
- Overload alarm function(more than watt alarm threshold, backlight flashing)
- Power alarm threshold preset function(can set up their own power alarm threshold)
- Power(kwh)button reset function
- When power off ,store the data, when on ,continue the date
- Large screen LCD liquid crystal screen full display function(voltage, current ,kwh,watt)
- Backlight function

About Display:
Display interface. By the large screen LCD display LCD monitor voltage and current,kwh,watt,electric parameters
1. Watt: the measurement range of 0-22kW
  less than 1kW: 0.0-999.9W
  less than 10kW: 1000-9999W
  less than 22kW: 10.0-22.0kW
2. kwh: the measurement range of 0-9999kwh
  less than 10kWh:0-9999Wh
  more than 10kWh:10-9999kwh
3. The test voltage range of 80-260V
  Display format 80-220V
4. Current test range:0-100A/ 0-20A
  Display format: 0.00-99.99A

About Button:
- Backlight control
can turn on/off backlight by short press
- Power reset
Step 1: long press the button (about 5 seconds),til display flicker, then release the button
Step 2:if short time press the button again, the power(kwh)reset zero and exit flicker
Step 3:if long time press button for 5 seconds until it is no longer flicker, power(kwh)data is not cleared and exit

- Set the alarm(watt)
Step 1: long press the button, till the LCD screen display "SET CLr",release the button
Step 2: show the alarm (watt)value,short time press, value (number)increase
              don't press the button for 3 seconds, the setting switch to other bit
Step 3: long time press the button(about 5 seconds)---->save the threshold watt value
threshold setting watt range:0-22.0kW

Notices:
1. Suitable for indoor ,not outdoor
2. should not exceed te rated power

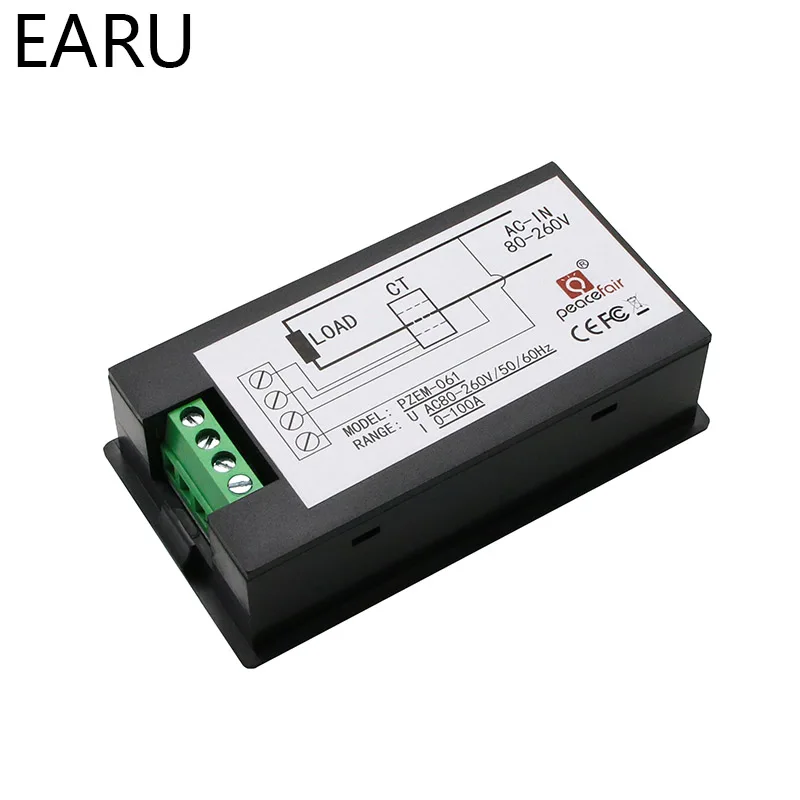

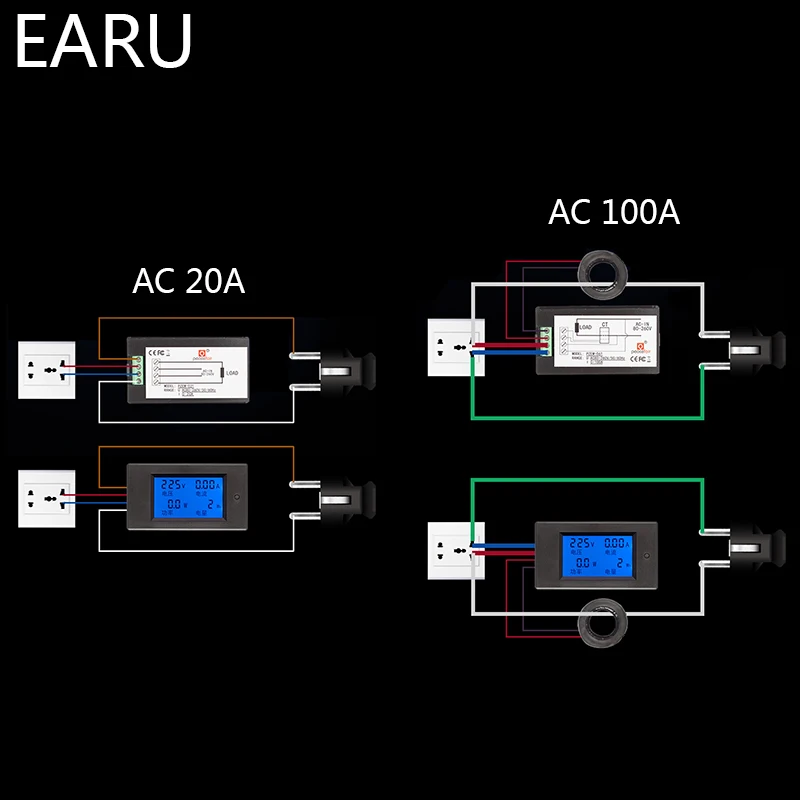

3. wiring can not be wrong

Package Includes:

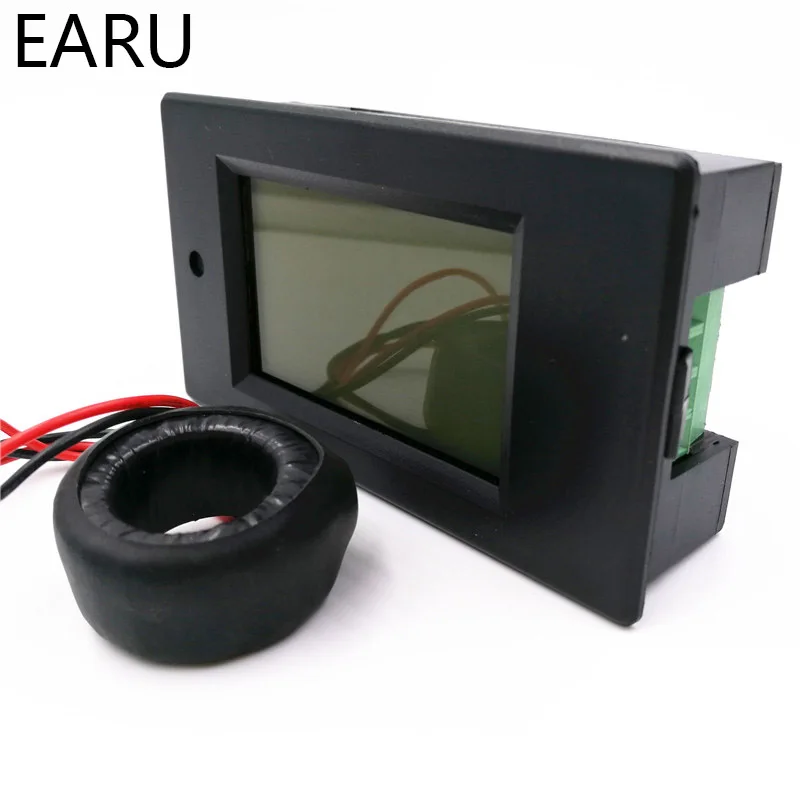

1  x  AC Meter
1  x  CT( 20A is without CT Coil)
