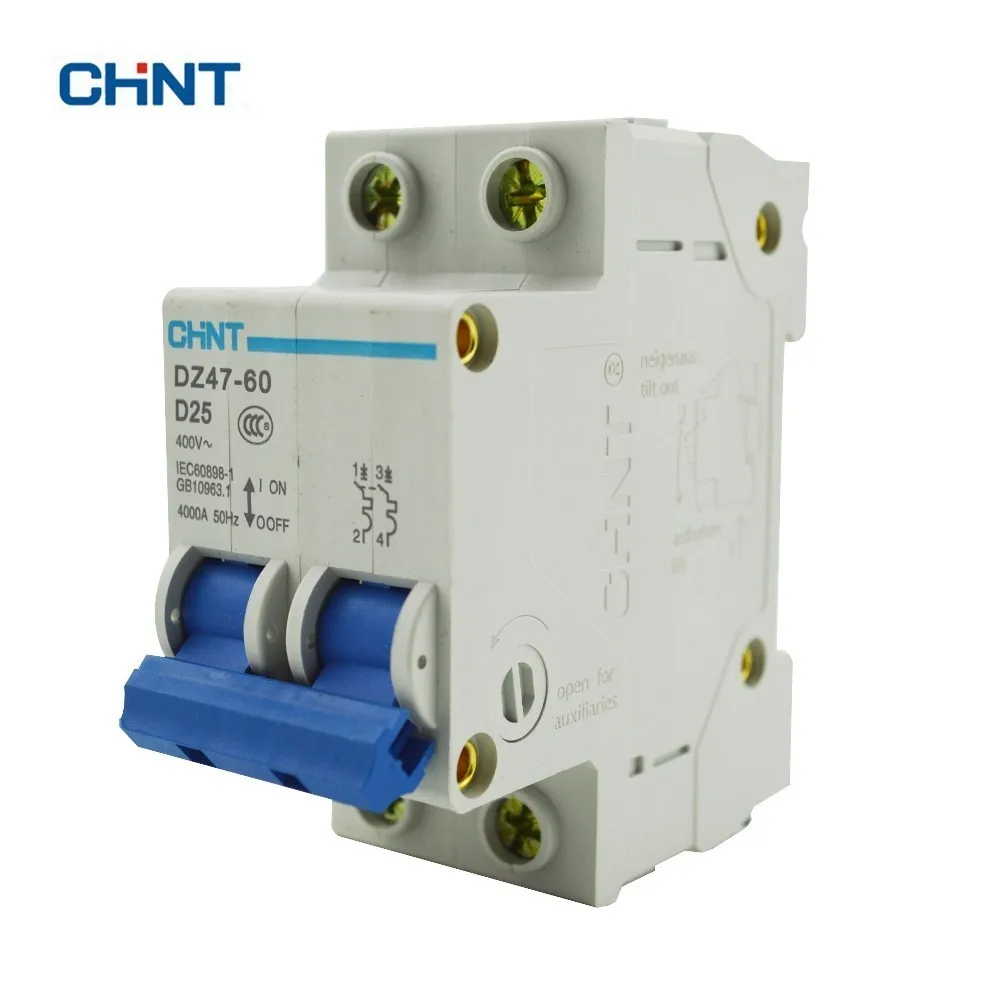

dz47-60 chint mini circuit breaker DZ47-60 2P D25
CHINT rated current of 60A and below, to act overload, short-circuit protect

DZ47-60 miniature circuit breaker, only available for sales in Commonwealth of Independent States, is mainly used in the circuit of AC 50Hz/60Hz, rated voltage of 400V and below, rated current of 60A and below, to act overload, short-circuit protection. It can also turn on or off the electrical appliance and lighting circuit infrequently under normal conditions, but not applicable for direct protection of high sensibility and high capacitive load of motor and electric equipment, capacitor cabinets, etc.

Standard: IEC 60898-1.

dz47-60 chint mini circuit breaker Normal working conditions:

environmental temperature: 5 C ~ + 40 C; The average no more than 35 C within 24 h.

Height: installation location altitude does not exceed 2000 m.

dz47-60 chint mini circuit breaker the main parameters and technical performance:

according to the rated current In points: 1A, 2A, 3A, 4A, 5A, 6A, 10A, 15A, 16A, 20A, 32A, 40A, 50A, 60A.

the number:

A. unipolar;

B. diode;

C. three pole;

D. quadrupole.

according to instantaneous tripping circuit breaker type points:

A.C type (5 ~ 10 in);

B.D type (10 ~ 16 in);

mechanical and electrical life:

Home Garyical life: not less than 4000 times;

Mechanical life: not less than 10000 times.

dz47-60 chint mini circuit breaker DZ47-60(C) Type

Rated current(A)

number

Voltage (V)

On-off capacity (A)

C1-C40

1

230/400

6000

C1-C40

2,3,4

400

6000

C50-C60

1

230/400

4000

C50-C60

2,3,4

400

4000

dz47-60 chint mini circuit breaker DZ47-60(D) Type

Rated current(A)

number

Voltage (V)

On-off capacity (A)

D1-D60

1

230/400

4000

D1-D60

2,3,4

400

4000

Connection: for 25 mm below the wire connection, 2.0 N · m torque.

Rated current(A)

Copper wires nominal cross-sectional area (mm)

1-6

1

10

1.5

16,20

2.5

25

4

32

6

40,50

10

60

16

dz47-60 chint mini circuit breaker Appearance and installation dimensions:

dz47-60 chint mini circuit breaker Installation guide rail size:

what's the payment term?

We accept T/T, L/C, D/P, WEST UNION, , CASH

What kind of product quality ?

Best quality In China, Chint Brand.

what kind of material of circuit breaker?

Two types, one copper coil with silver point and the other is brass coil with copper point from china market. Copper and silver is better Chint Electric only produce Copper and silver.
