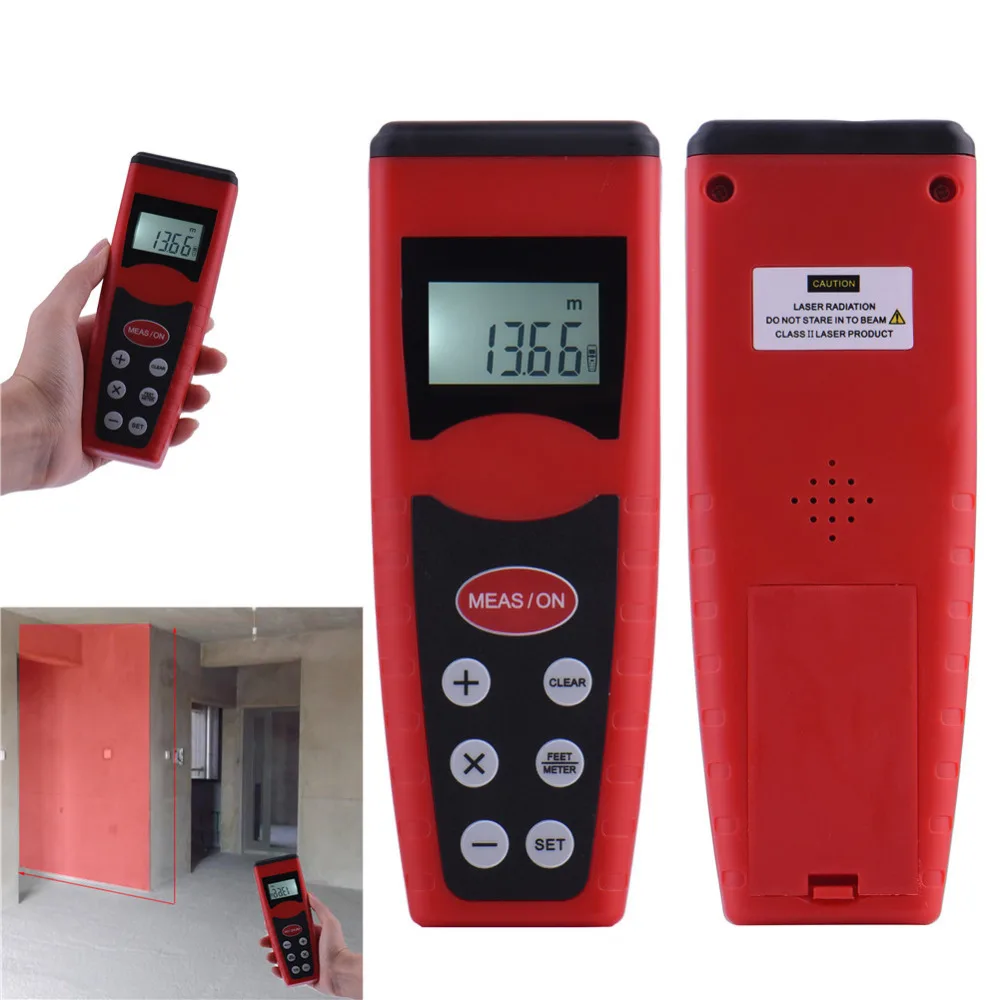

Hot Worldwide Ultrasonic Measure Distance Meter Measurer Laser Pointer Range Finder CP3000

Features:

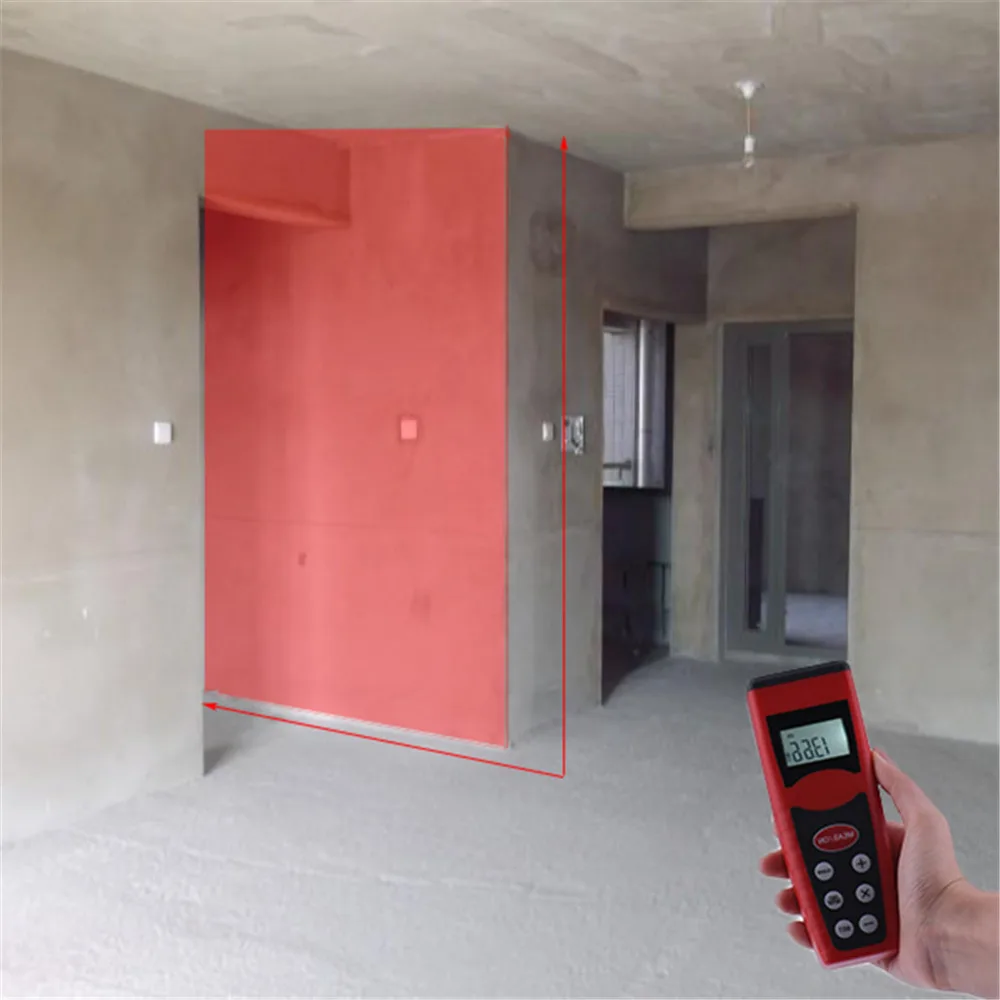

Ultrasonic range finder is fully applicable to home decoration, buy air conditioning calculation area of volume, real estate agents or construction workers must, need fast measurement tool room and room area, ultrasonic range finder capable of measuring linear distance from 0.50M to 18M. (1.5 feet -60 feet) is the use of ultrasonic waves ultrasonic distance to the object, and then calculate the round trip time ultrasound to determine the measurement distance.

Specifications

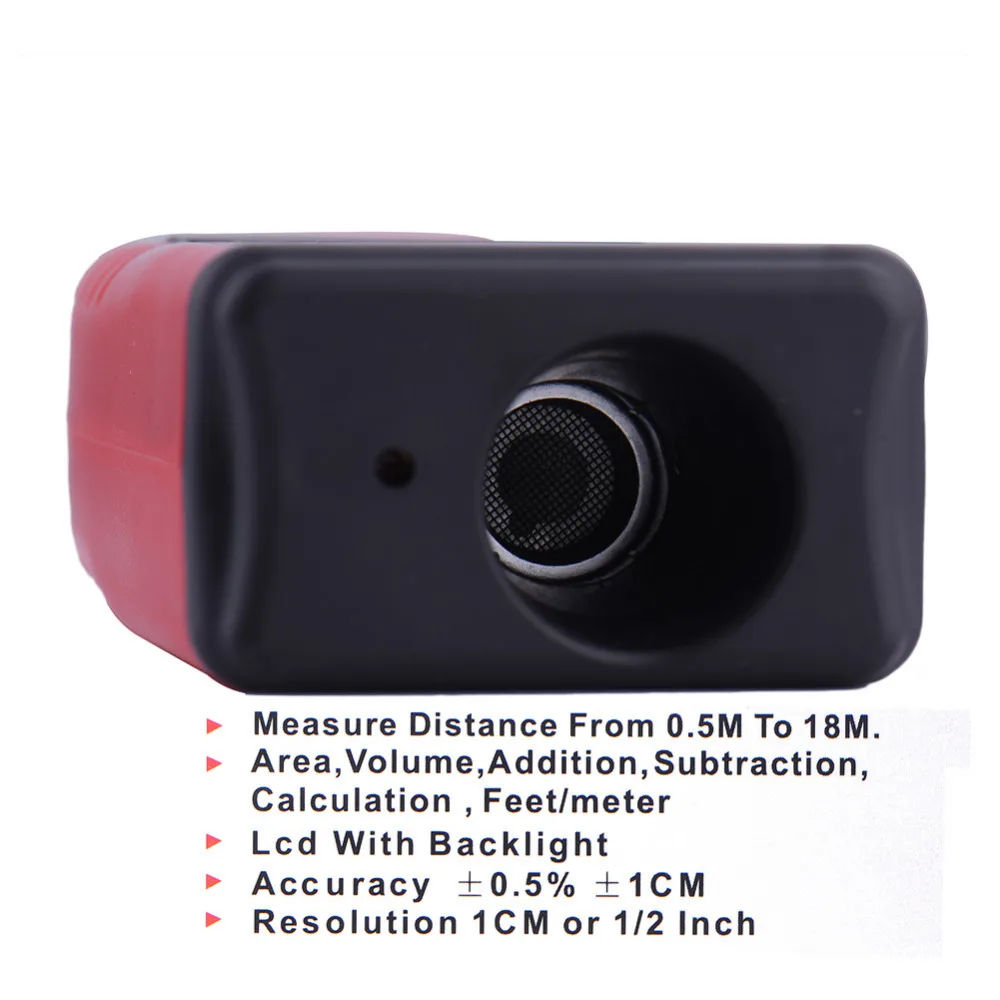

Measuring range: 50 cm to 18 m
Resolution: 0.01 m
Maximum measurement distance: 18 meters
And the maximum distance: 180.00 m
And the maximum distance: 180.00 m
Maximum volume calculation: 1800.0 cubic meters
Power: 9v battery
Transmission frequency: 40kHz
Operating temperature: 0 ° C ~ 43 ° C
Size; approx 15x 5x 3cm
Color: red
Net weight: 91g

Rangefinder Instructions:
Warning: If you are not more than a month or a month, please remove the battery to avoid battery long time without leakage damaged instruments.

Usage:
Rangefinder switches:
To open this instrument, please press "MEASURER" Even in the dim light can easily display screen.
30 seconds if you do not shut down automatically.

Measurements:
1. Click on the "MEASURE", this instrument will measure radar instrument reaches the other end to be measured.
2. Make the bottom of the instrument close to the wall, probably from the ceiling to the floor. Make sure there are no obstacles between you measure the distance, your head or your hands do not in front of the measurement instrument.
3. Repeat Press "FEET" or "METER", "FEET" expressed in feet measured, or the emergence of "METER" indicates measured in meters.

Explanation:
Meter display is generally about 30 seconds, if you change to another mode is about 30 seconds.
If you measure a range of less than 2 feet (0.5 meters) or greater than 60 feet (18.288 meters) will show "ERROR"

Measurement tips:
Some curtain can absorb sound waves, resulting in Measurement are not allowed. If you have curtains indoor measurements, please first the curtain into the window on the other side, but also to close the window.
If there is an obstacle in the distance measurement, then the ultrasonic measured data is incorrect, for example tables, chairs, or other obstructions. If you are not sure you are measuring is correct, then you make multiple measurements from different angles.
If it is not where you are measuring flat or very narrow corner, then you come to the data that is in error.
If you want to measure a distance greater than 60 feet (18.288 meters) then choose the house in the middle of the point, for example: measuring from point to each side, then add it.

Laser function. Reducing errors:
1. Follow these steps to use the "measure" to measure a size
In the memory card M1, M2 or M3 card data storage 2. Click "STORE" button, you will be able to measure the inside.
3. If necessary, repeat the above first and second steps to store data.
4. If you want the data stored in what? Deceive M1, M2 or M3 card. So that data exist inside.
5. If you want to store the new data, then it directly to the original data can be deleted.
6. If you want to delete all the data, then it would press "ALL MEMORY CLEAR" hold for 3 seconds, and then there are M1, M2, M3 and the like all of the data will be temporarily lost.
Note: After you delete date and sound can not be saved

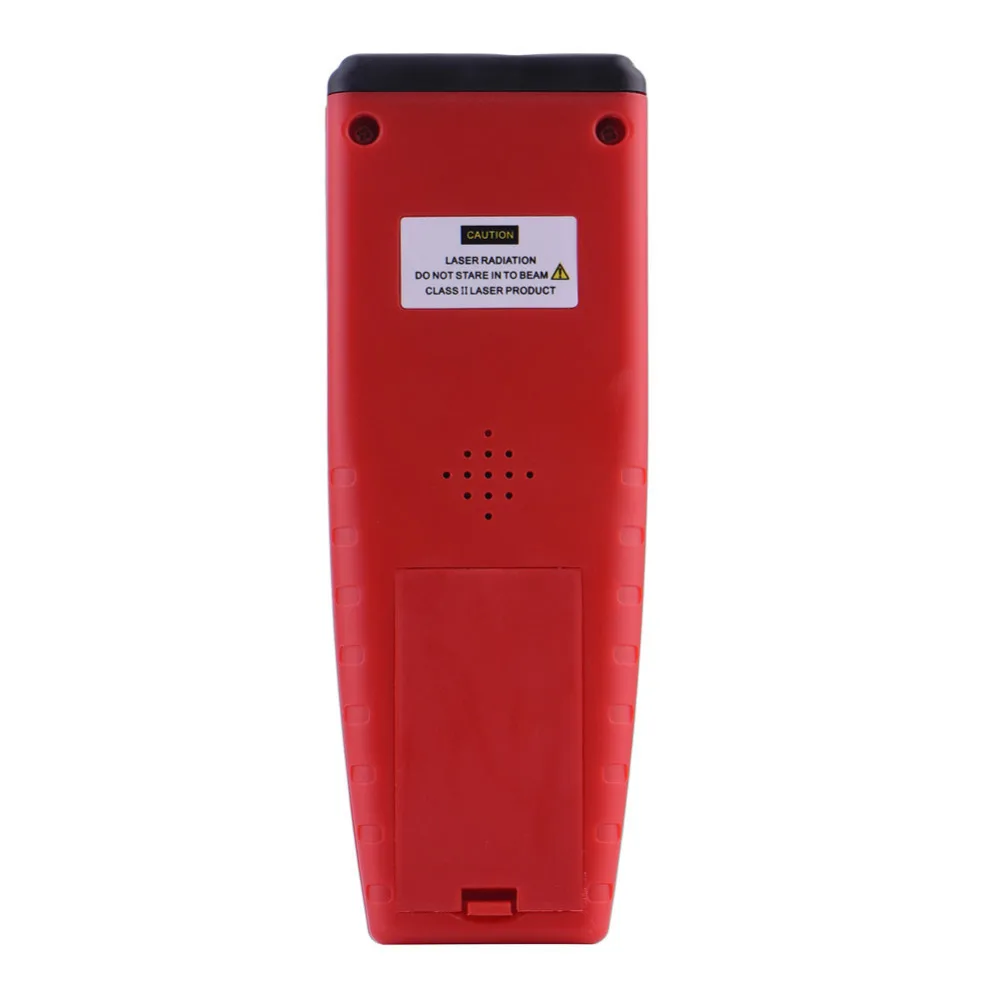

Laser:
To use the laser, press the "LASER", if you do not move for 5 seconds, then will automatically shut down

Note:
650 nm laser emission of visible laser wavelength.
Do not stare at the laser beam to see, do not use the laser shoot anyone's eye

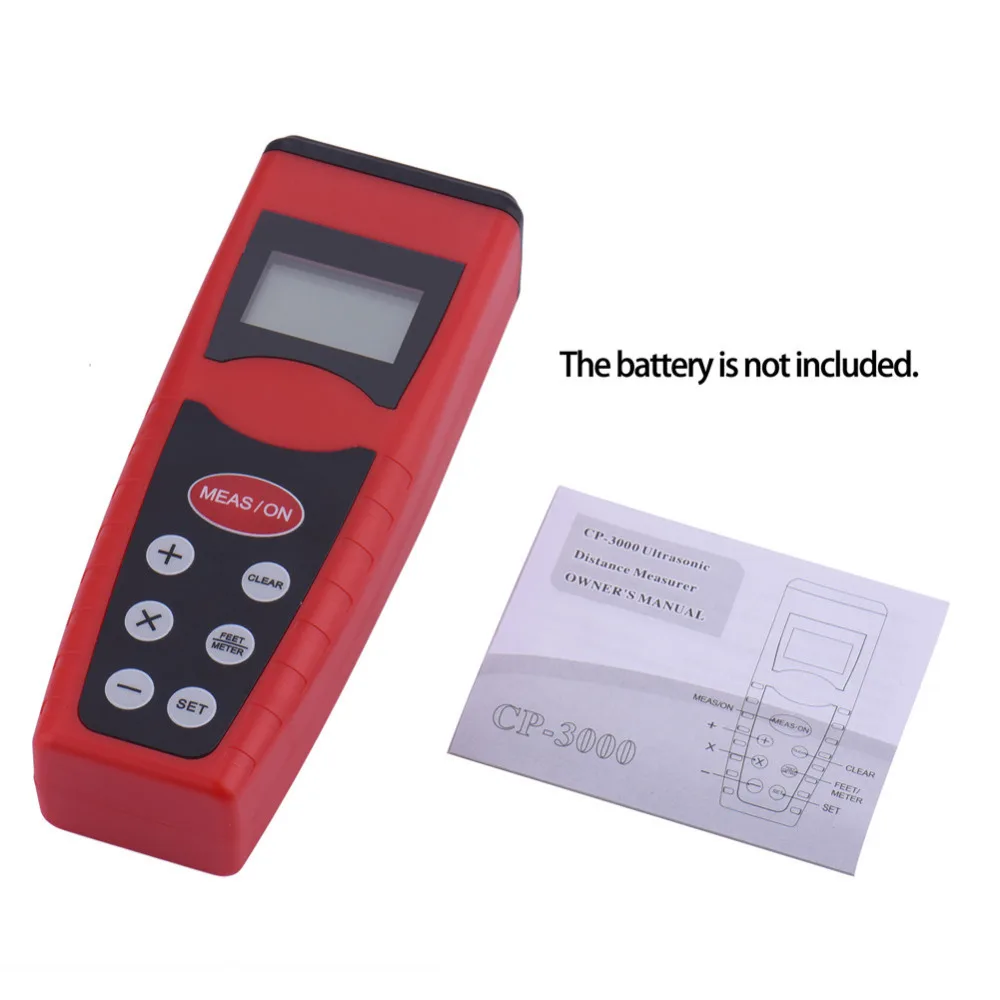

Package Includes:
1 x Distance measurer
1 x Manual
