SF - HC30A3 updated

Stepper motor replaces conventional dc motors

SF - HC30A flame/plasma cutting torch height controller adopts the stepper motor control technology, to subvert the traditional dc motor by high mode, making rapid, smooth, and greatly improve the service life of the product.
Mechanical hoisting device and high controller integration
The integrated design of detector, controller and actuator, which enables the product to be highly integrated and adjust the journey 10Cm;
All digital technology
The circuit adopts the technology of patch, which is not available, and the full digital control technology ensures the high reliability of the product.
Can be used in bad environment
The shell is designed to prevent and interfere with the design of waterproof and waterproof aluminum box, especially suitable for flame cutting, high temperature of plasma cutting and high electromagnetic interference.
Multiple interfaces are easy to use
The interface is easy to control, suitable for all flame cutting, plasma cutting nc system, and can be used separately
Key technical indicators
power requirement: DC 24V plus or minus 2 V 3 A
Applicable motor: 17hs (42) series of stepper motors
Manual adjustment range: 0 ~ 100 mm
Automatic high control range: 3 ~ 30 mm
Automatic adjustment speed: 3000 mm/min
Control accuracy: plus or minus 0.5 mm
Box size: 155 x 87 x 71 mm
L working environment temperature: - 10 ~ 50 ℃
Weight: 1.5 Kg
Detection system: capacitive detector, arc pressure height detector

Product Introduction：

Plasma and flame dual-purpose cutting height controller

SF-HC30A0 and SF-HC30A1 have been upgraded to SF-HC30A3, the wiring is the same, the function is the same, please rest assured to use!

The SF-HC30A3 flame/plasma cutting torch height controller is an automatic control module for the height of the cutting torch, which is designed

for portable flame and plasma cutting machines with integrated mechanical lift and electronic control.

Technical features:

1. The stepper motor replaces the traditional DC motor. The SF-HC30A flame/plasma cutting torch height controller adopts stepper motor control technology, which overturns the traditional DC motor height adjustment mode. It works fast, smoothly, and greatly increases the height. The service life of the product.

2. The mechanical lifting device and the height adjustment controller are integrated, and the detector, controller, and driver are integrated design, so that the product is highly integrated, and the adjustment stroke is 10cm.

3. All-digital technology, the circuit adopts patch technology, without any adjustable components, and all-digital control technology ensures the product has a high degree of reliability.

4. It can be used in harsh environments. The shell is designed with a sealed, interference-proof, waterproof and moisture-proof aluminum box design, which is especially suitable for flame cutting, plasma cutting, high temperature, and high electromagnetic interference.

5. A variety of interfaces are easy to use, the interface is simple and convenient to control, suitable for all flame cutting, plasma cutting systems, and can also be used alone.

Main Specifications:

Power requirements: DC 24V 3A

Applicable motor: 17hs(42) series stepping motor

Manual adjustment range: 0--100mm

Automatic height adjustment control range: 3--30mm

Automatic height adjustment speed: 2400mm/min

Control accuracy: ±0.5mm

Box size: 155*87*71mm

Working environment temperature: -10～50℃

Detection system: capacitive detector, arc voltage height detector

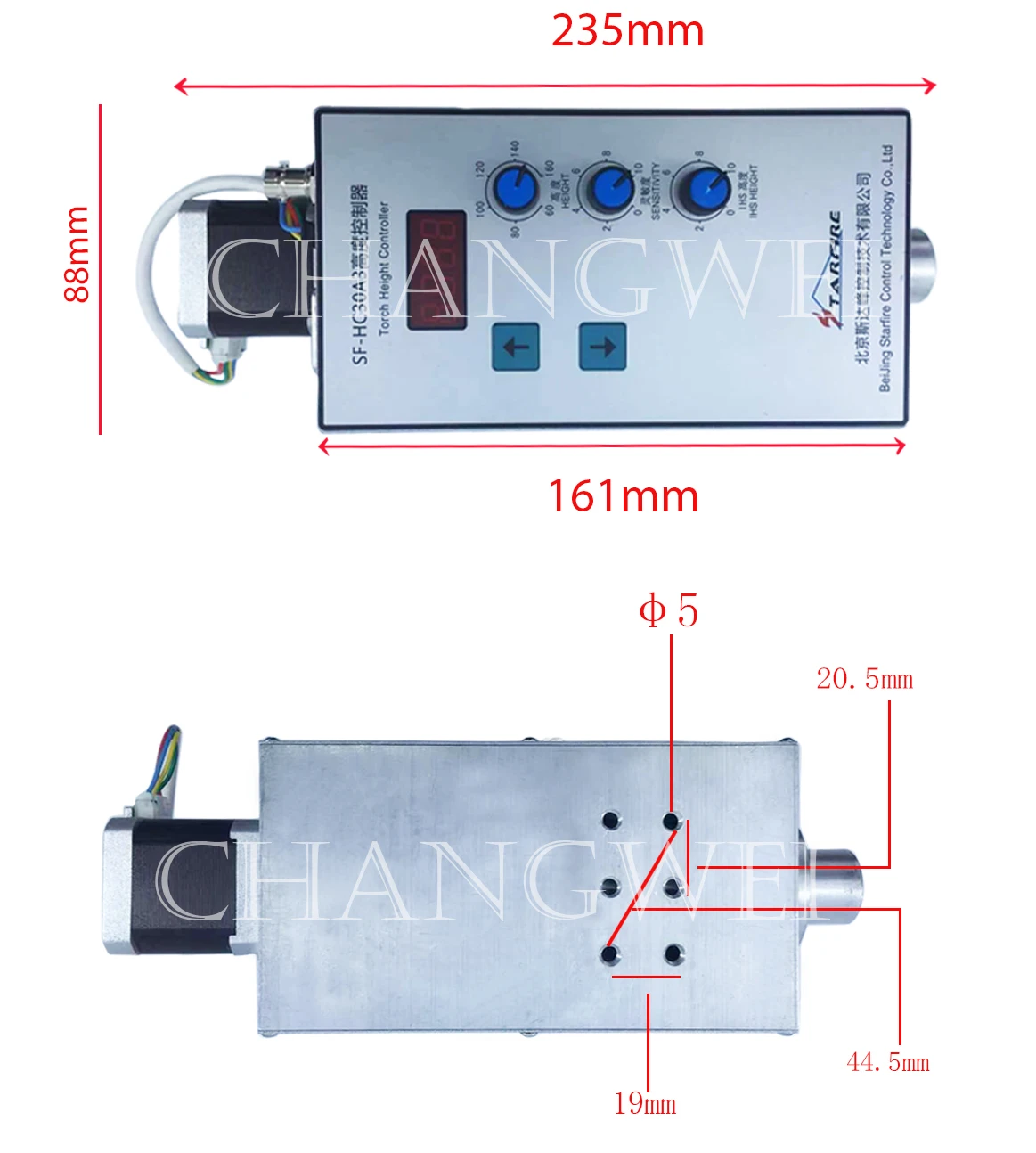

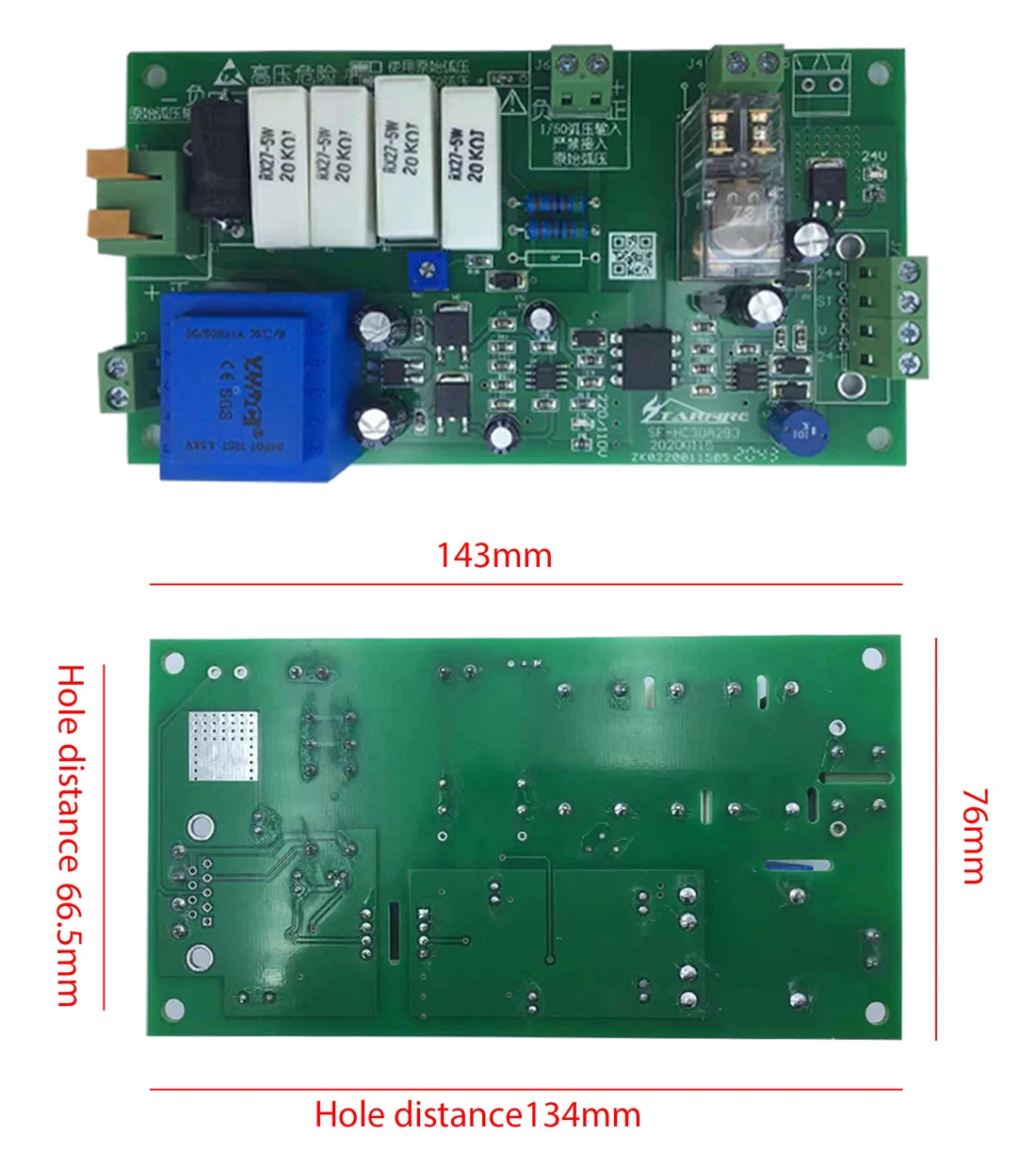

Product Size：

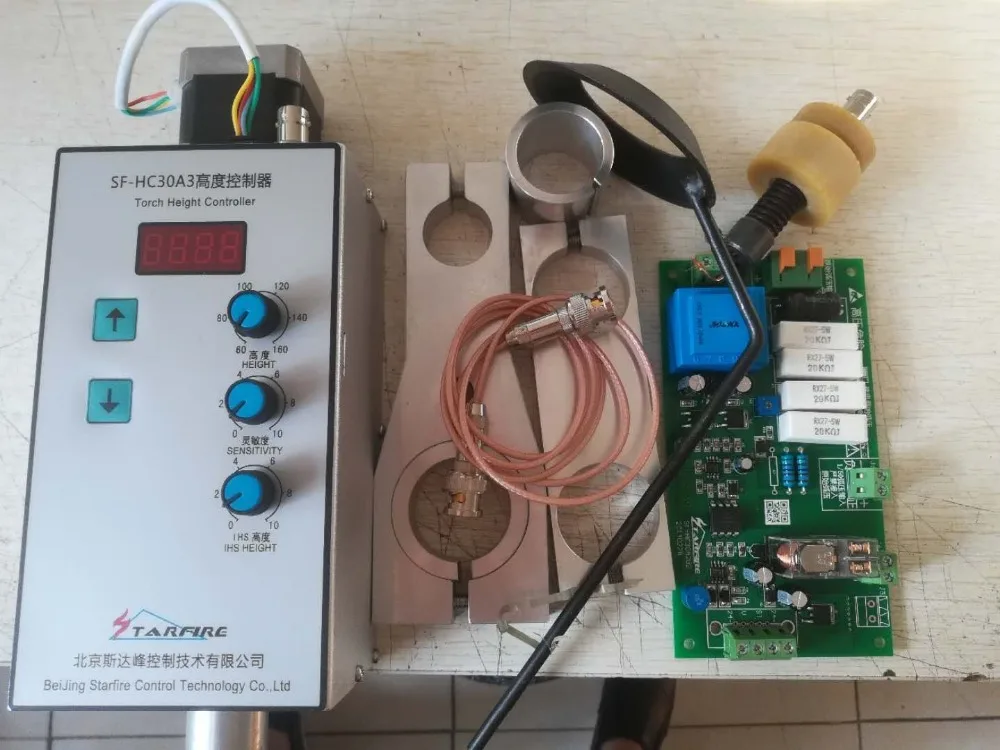

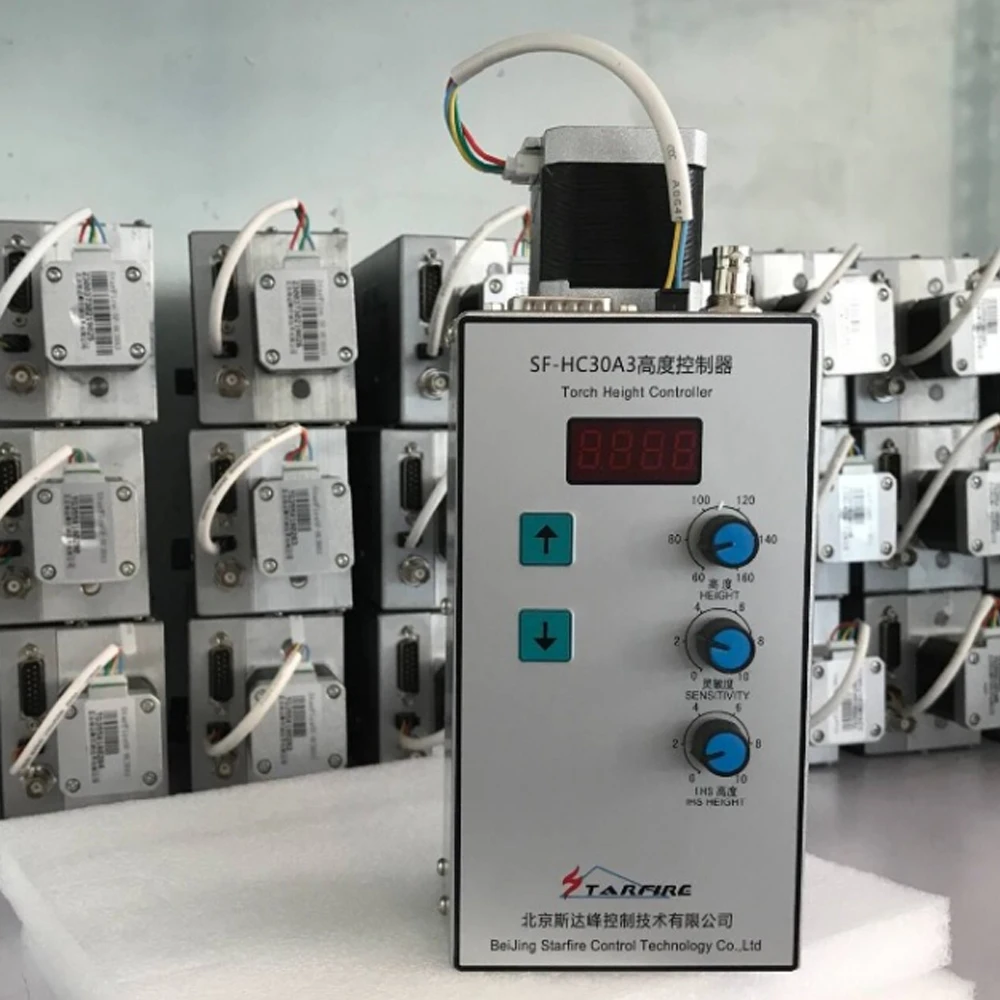

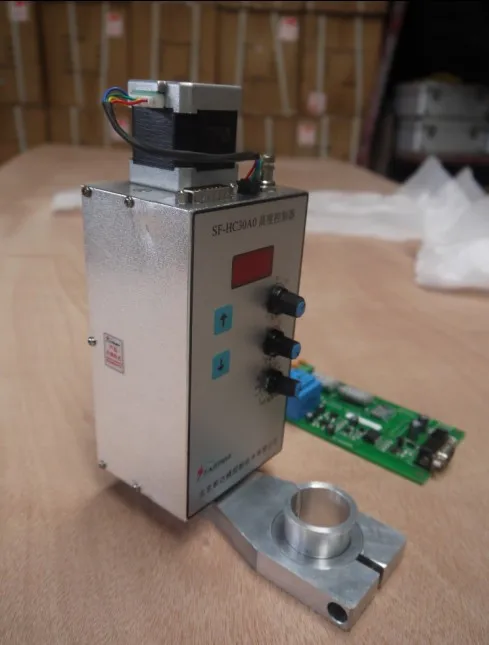

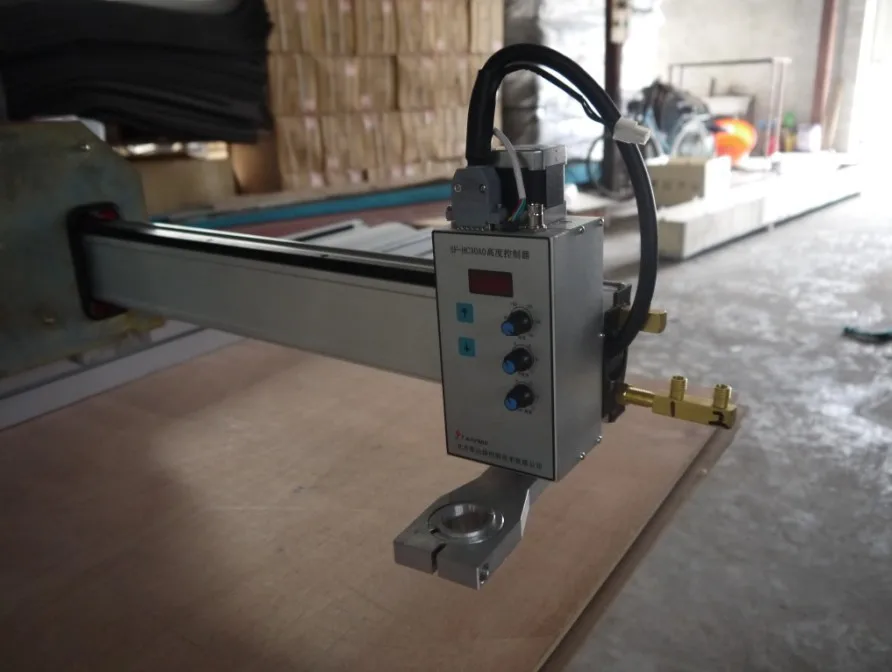

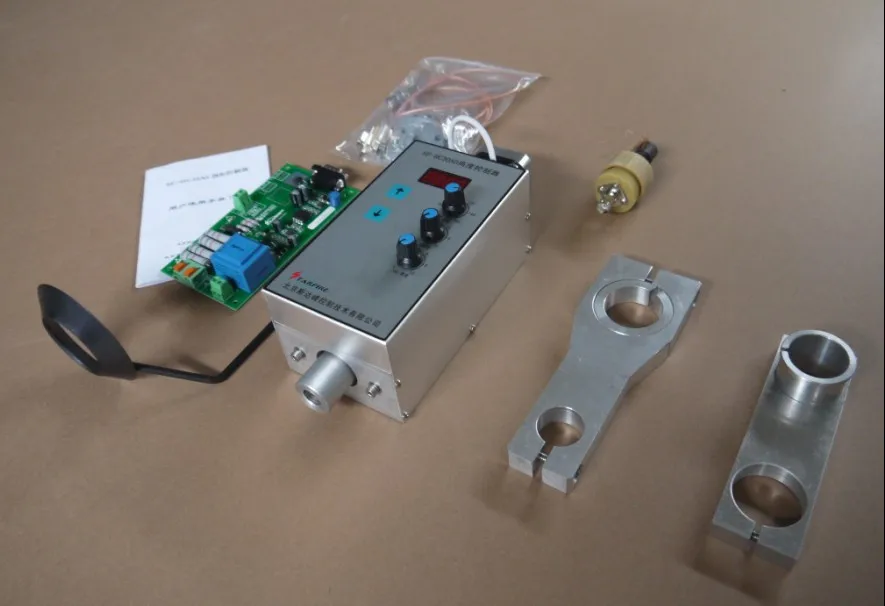

The whole machine show:
