Мини-ПК 11-го поколения без вентилятора Intel Core i7 1165G7 i5-1135G7 4Intel i225 2 5G LAN DDR4 NVMe Celeron N5105

Мини-ПК 11-го поколения без вентилятора Intel Core i7 1165G7 i5-1135G7 4Intel i225 2 5G LAN DDR4 NVMe Celeron N5105

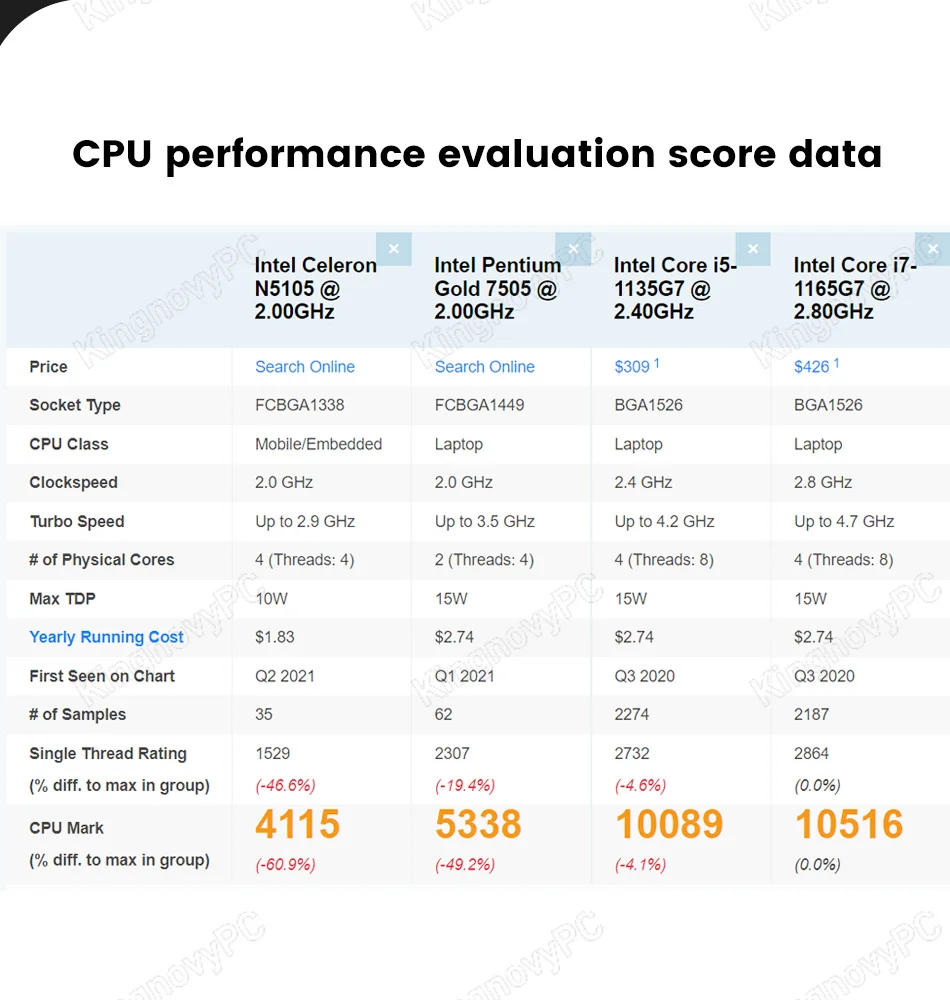

Processors

Cores & Threads

Cache

Base Frequency

Max Turbo Frequency

Graphics

Celeron N5105

4 cores, 4 threads

4M

2.00 GHz

2.90GHz

Intel UHD Graphics 450MHz-750MHz

Pentium Gold 7505

2 cores, 4 threads

4M

2.00 GHz

3.50 GHz

Intel UHD Graphics 1.25 GHz

Core I5-1135G7

4 cores, 8 threads

8M

2.40 GHz

4.20 GHz

Intel Iris Xe Graphics 1.30GHz

Core i7-1165G7

4 cores, 8 threads

12M

2.80 GHz

4.70 GHz

Intel Iris Xe Graphics 1.30GHz

Product Highlight

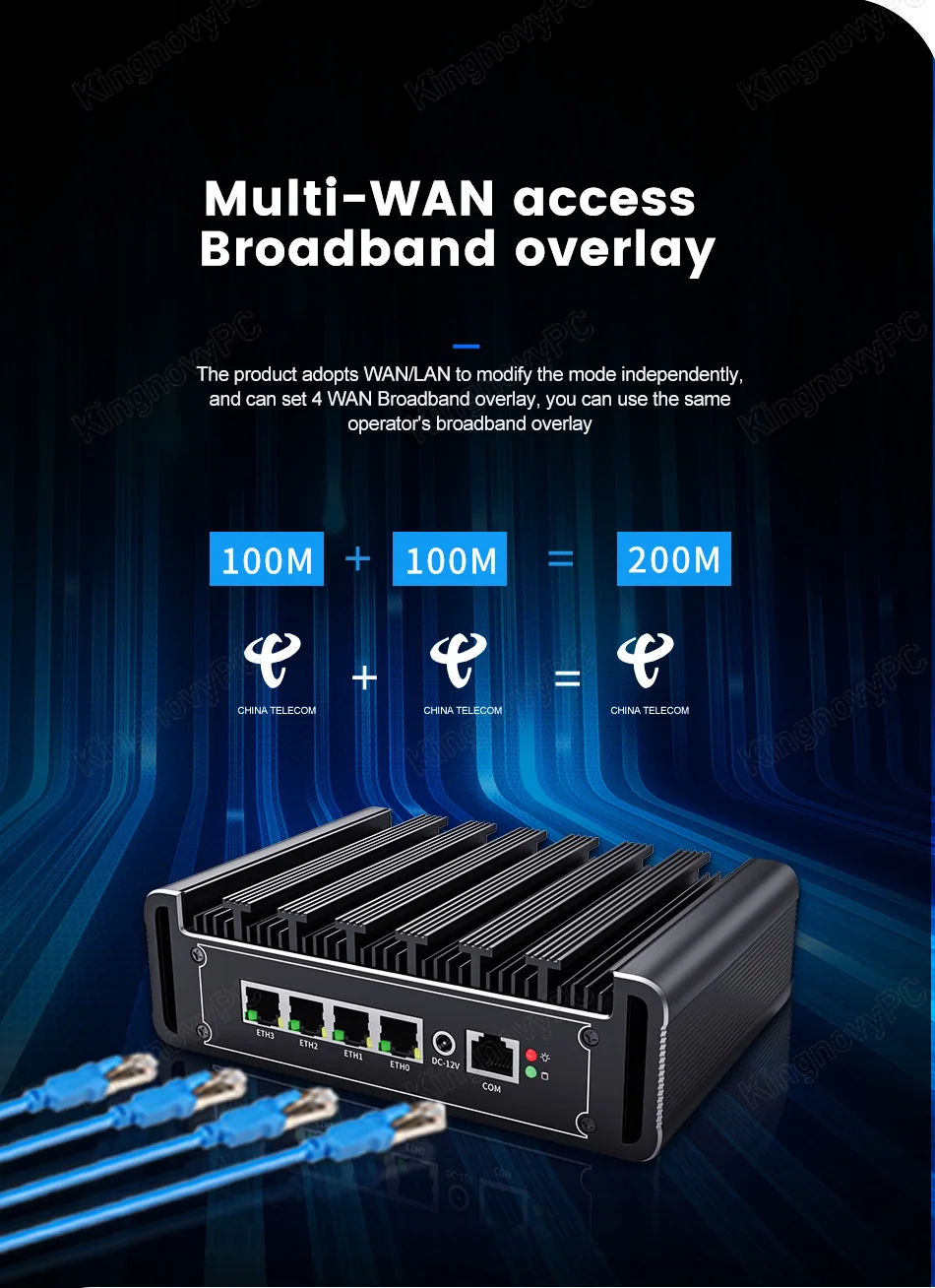

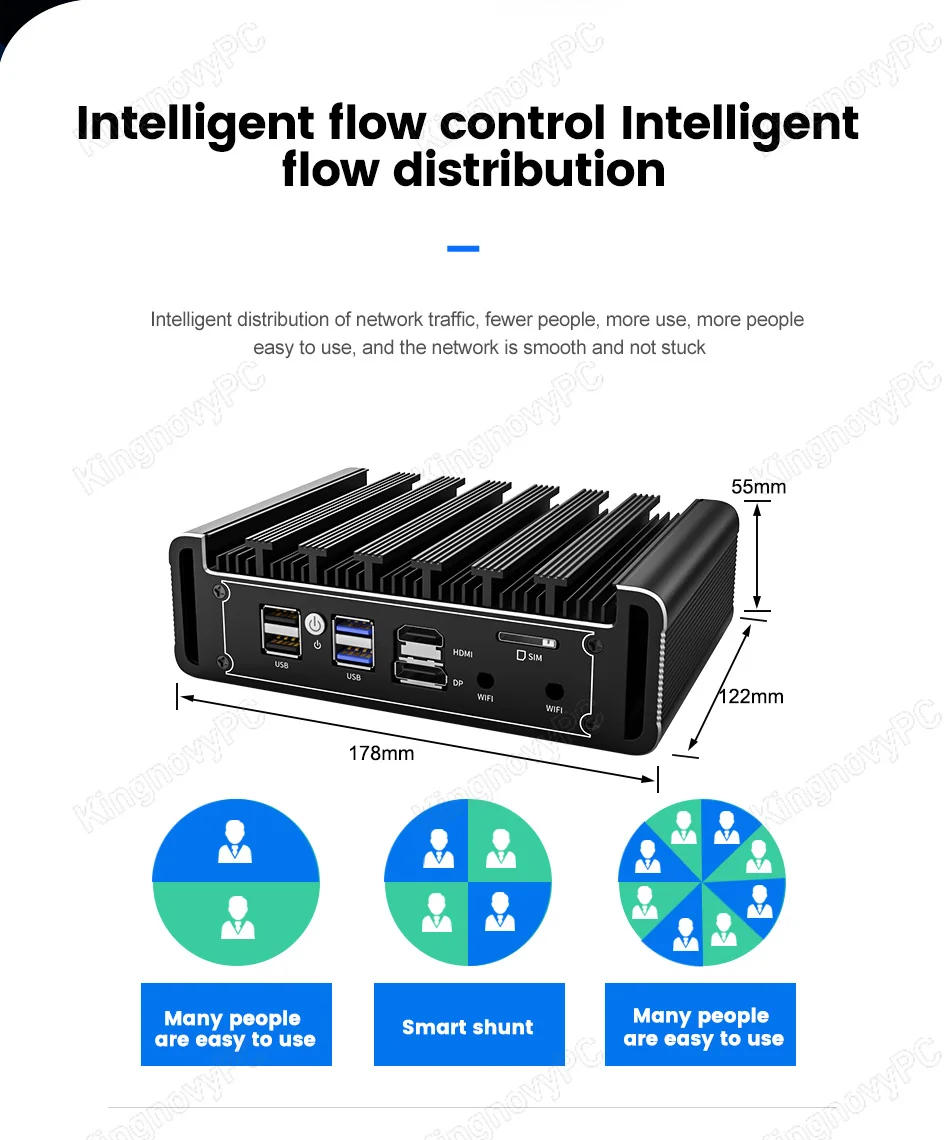

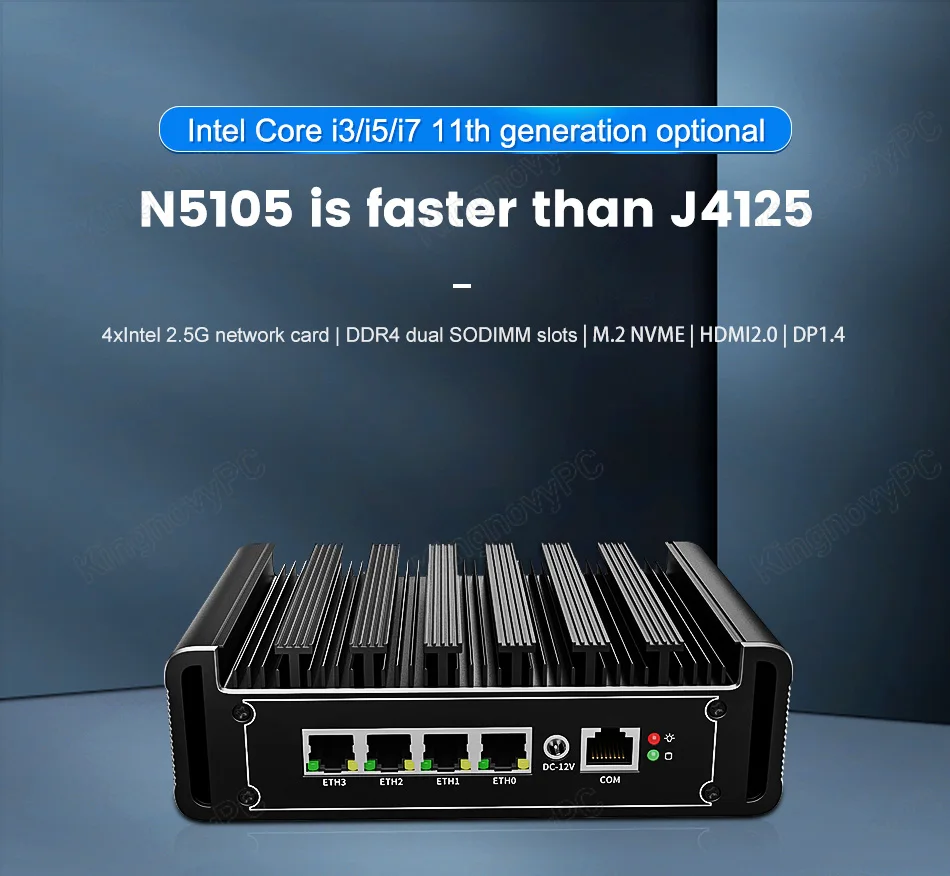

-4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console.

-2xDDR4 SODIMM non-ecc ram slot, max support 32GB.

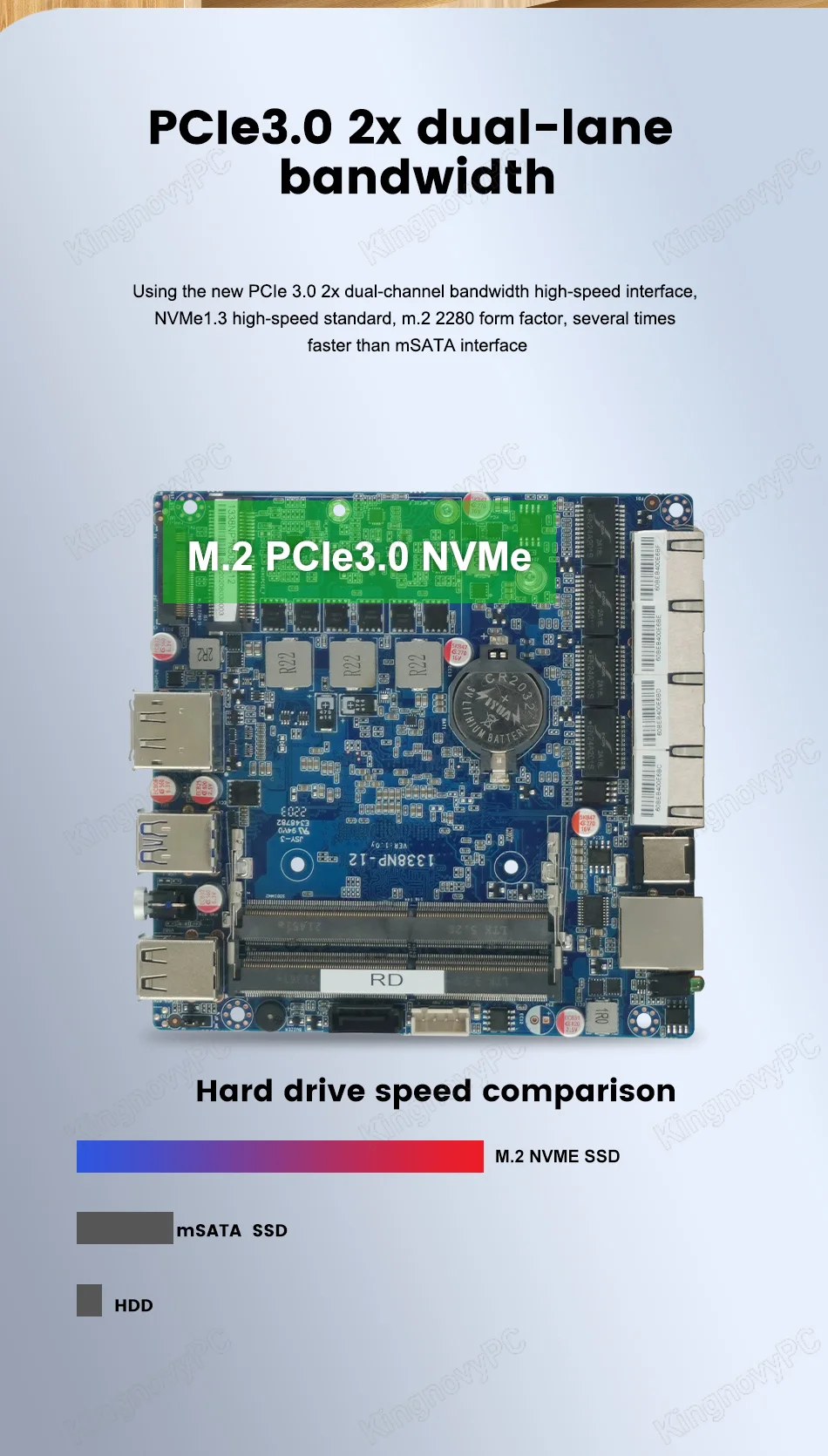

-Support two storage: 1xM.2 2280 NVMe/PCIE3.0x2 SSD+1x2.5''SATA SSD/HDD.

-1xHDMI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.

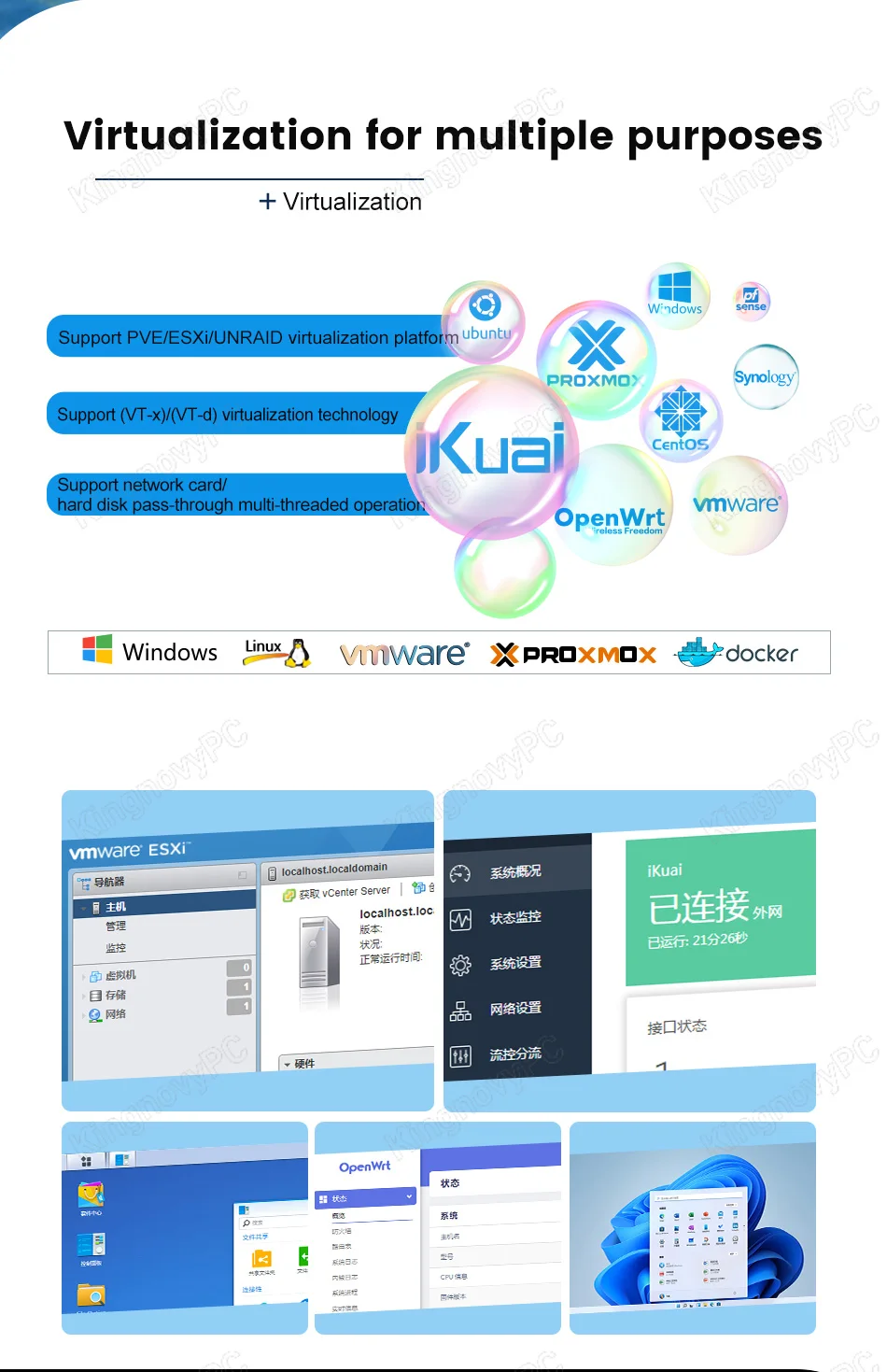

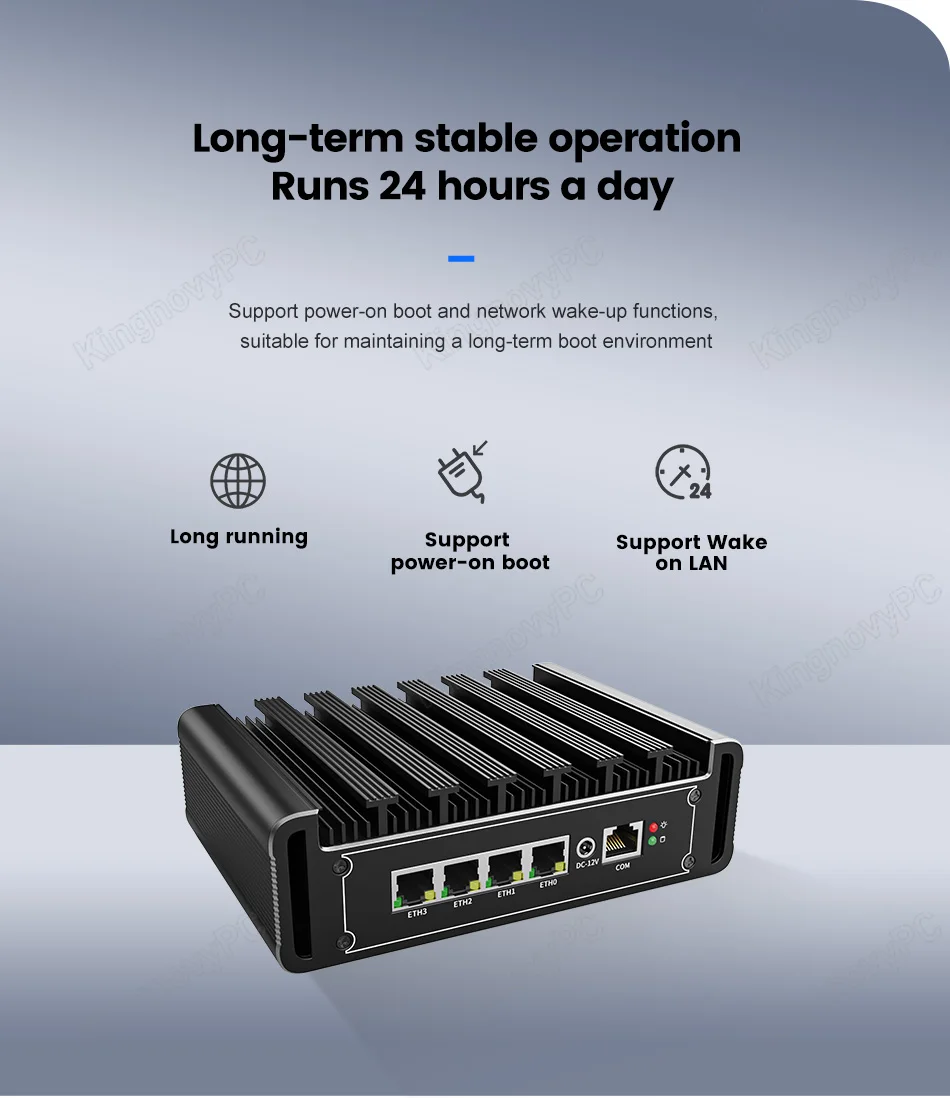

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance, Exquisite production craft on outside design.

-Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.

-Low consumption TDP and can be mounted back of monitor by VESA bracket(optional).

Package List

1xMini PC

1xPower Adapter

1xPower Cord

1xSATA Cable
1xScrews Bag

All bundles on sale DO NOT include WiFi/3G/4G module(antennas), WiFi module cost US $10(only USB protocol), 3G module cost US $50, 4G module cost US $70. If you need, pay at this link.

DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use Samsung, Skyhynix etc ORIGINAL brand ram and storage. We are afraid to see you suffer a bad shopping experience and DO NOT compensate for buyer's man-made damage and faulty.

Welcome to click the picture of VESA Bracket to order together if you need:

Free Operating System: Default installed pfSense.Other systems we can install free are like Windows, Linux, Ubuntu etc if you need.Seller is irresponsible and makes no compensation for trial system.

500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.

Upgrading link:https:/item/3256803167927258.html

(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for...)
