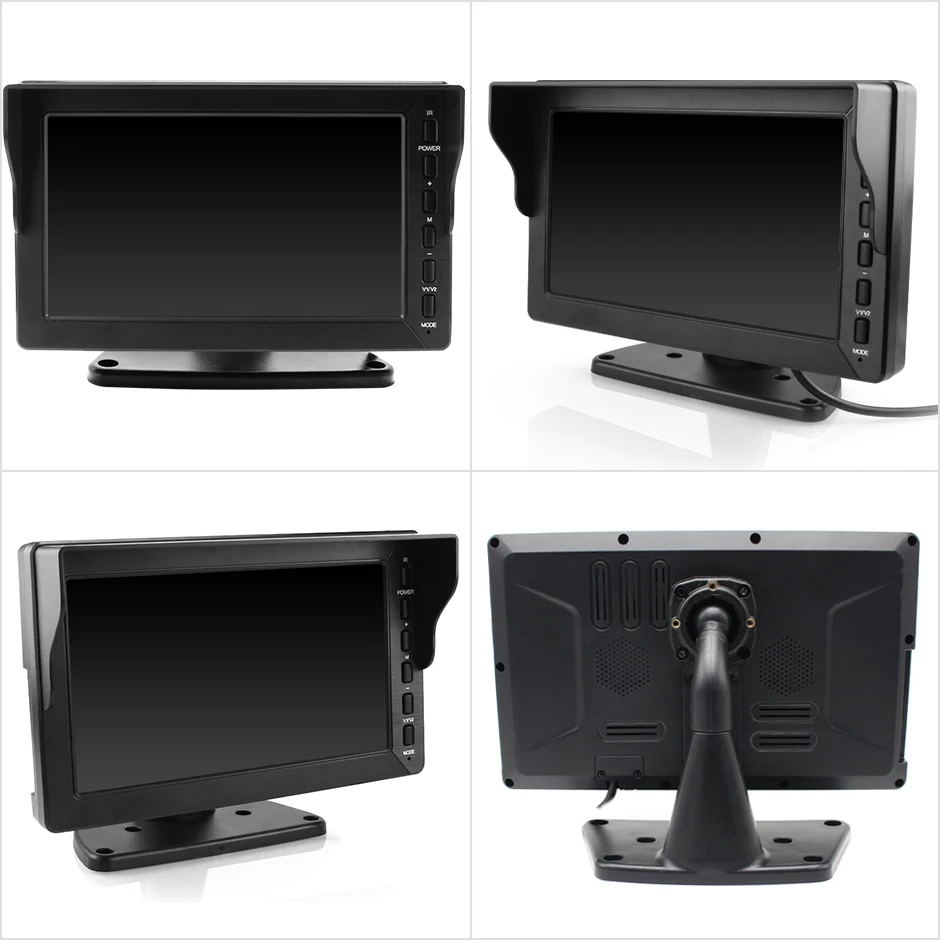

AHD DVR Monitor Features:

Video signal: Support AHD and CVBS camera

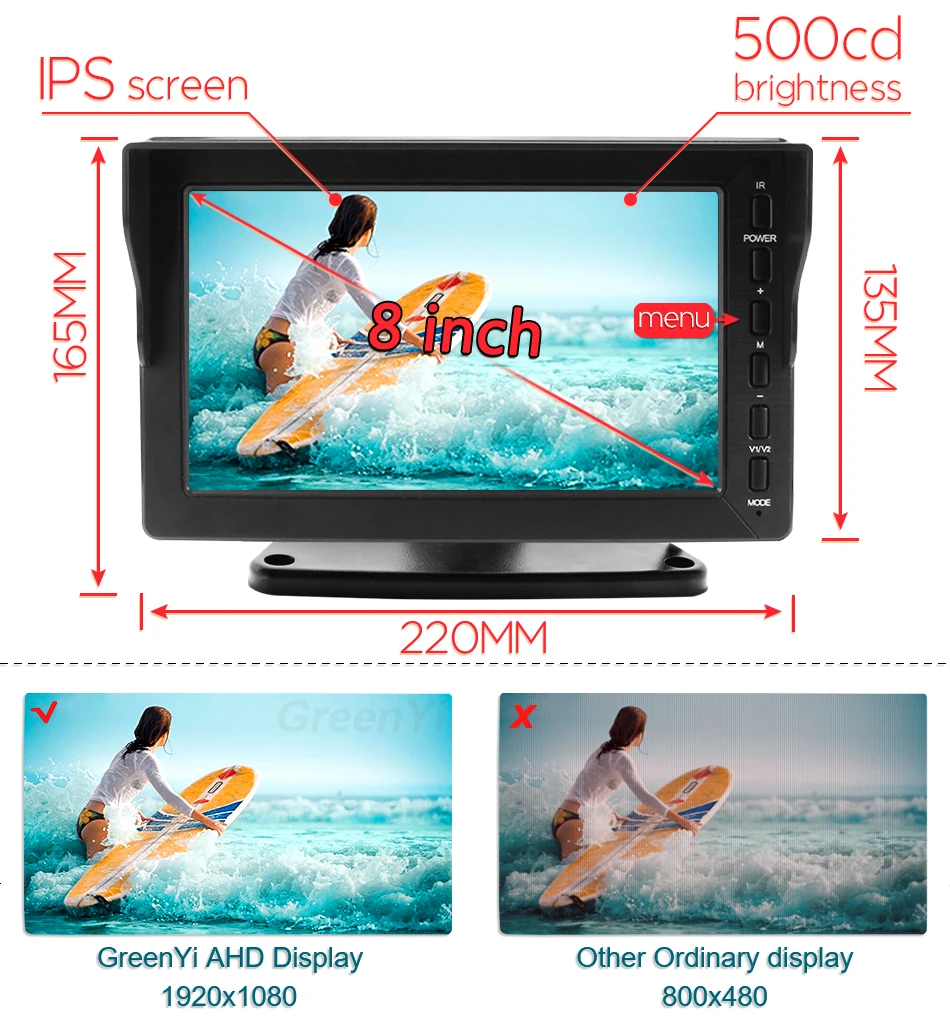

Screen Size: 8 Inch Display
IPS Screen: Support
Screen Brightness: 500CD / M2
Contrast: 300:1
Resolution: 1024*600 (AHD)
Monitor Recording pixel: (1 camera = 1920x1080) (2 cameras = 1080P+720P) ( our camera )
Suppoer Camera: CVBS Camera, AHD720P Camera, AHD1080P Camera
Format: 16:9
Power Voltage: 12V-30V
Power Consumption: <=6W
Video Input: V1/V2, auto switch
Package includes remote control

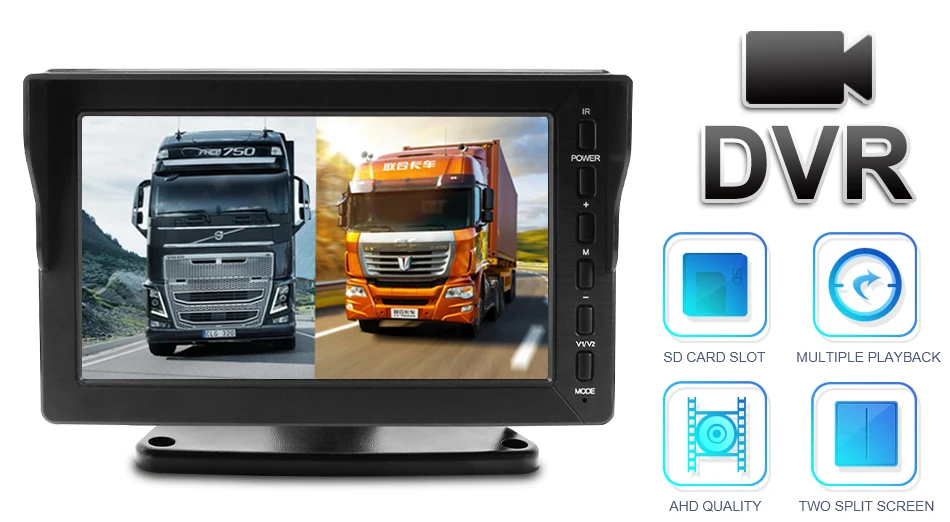

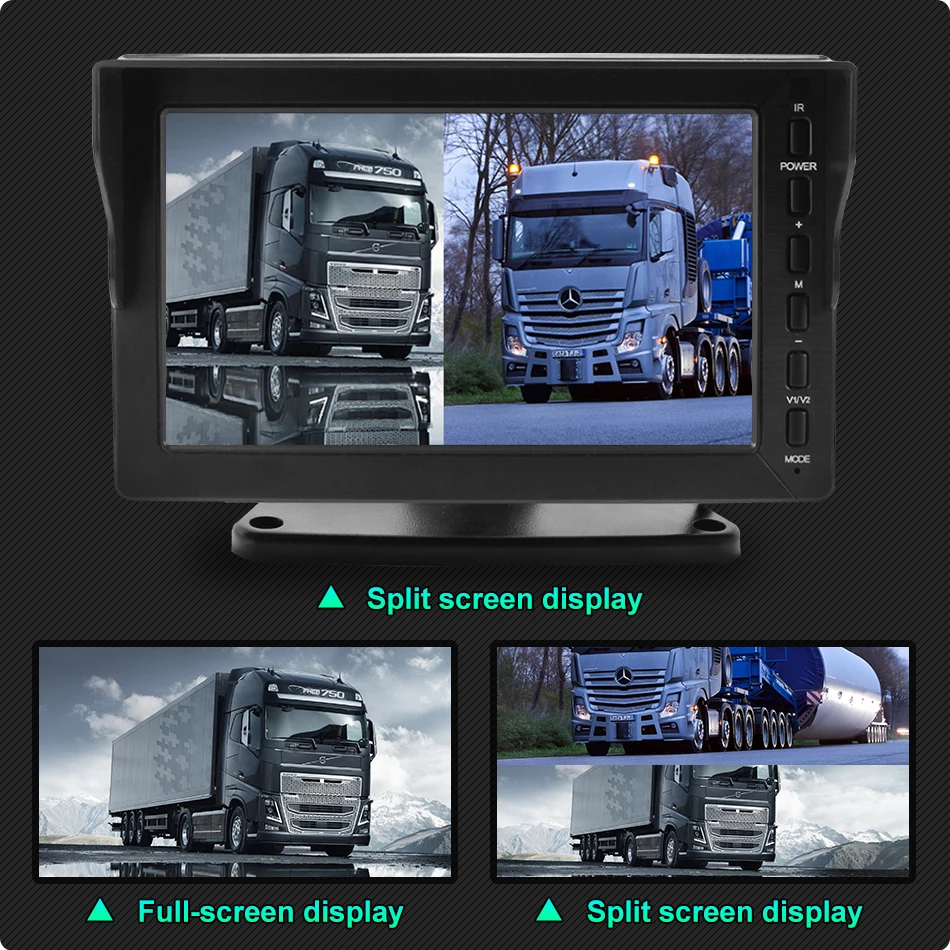

Supports displaying two camera screens at the same time.

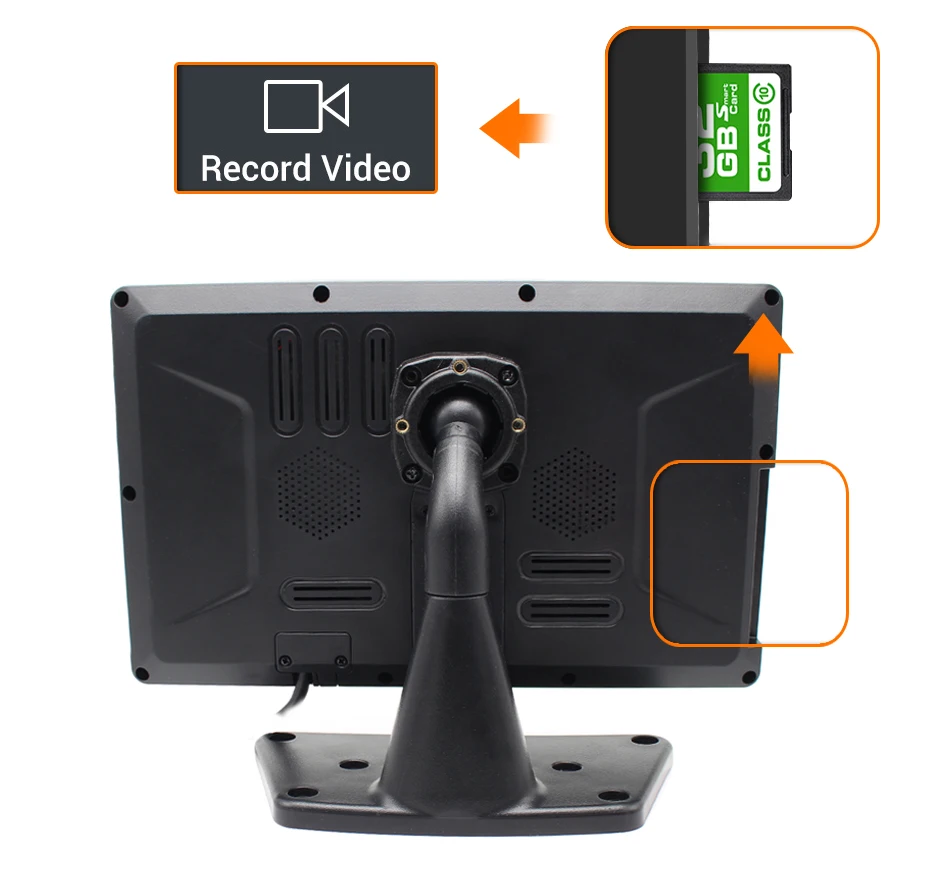

Support for loop recording:
Cyclic recording ensures that your camera doesn’t stop recording when the storage is full. The camera automatically overwrites the oldest files on the memory card.
Max External Memory: 128GB

IPS Monitor → Excellent 178° Full-view display technology

• 178° Wider viewing angles
• Faster response times
• Better color/contrast than many VA and TN panels
• Outstanding color accuracy and screen consistency

This monitor supports mirrored image display.
You can change the rear view image displayed by the rear view camera to the front view image.
Convenient display installation.

AHD (Analog High Definition Technology)

AHD technology can realize reliable transmission of ultra-long-distance (500 m) high-definition video signals on analog transmission lines; it adopts advanced Y/C signal separation and analog filtering technology, which can effectively reduce color noise in high frequency region and image reduction. better. Compared with the traditional CVI signal, AHD's surveillance image quality has a qualitative leap and improvement, and the resolution can be equal to the HD 1080P level.
AHD-M(TVL) Features:
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• transmission far from the coaxial transmission of ordinary 75-3 line up to 500 meters
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity
• compatible with ordinary CVBS signals, compatible with analog peripherals (including splitters, matrices, etc.)
• Highly integrated AHD front-end chip, high-definition quality products.

AHD Car Camera:

• 1920*1080P effective pixels
• AHD Technology ( Only support AHD monitor )
• Top GC2053 AHD Chip
• Waterproof
• No Color Cast
• 2000000 pixels
• Size: 46mm * 53mm
• New body material: High quality stainless steel, aluminium alloy. Anti Scratch.
• IR Night Vision: Infrared night vision cameras are mainly used in a dark environment with no visible light or low light level. Using an infrared emission device to actively project infrared light onto an object, and the infrared light enters the lens for imaging after being reflected by the object. At this time, what we see is the picture made by the reflection of infrared light, not the picture made by the reflection of visible light. At this time, we can take pictures in invisible dark environment.
Tips: If you need LED camera, please contact us.

We use the wire which update from standard 4mm to be 4.5mm, longer life lt will be. Inside of the wire much more copper wire covered with special tinfoil wrap up. Avoid the loose of the signal. Great signal will be no matter wherever you are in.

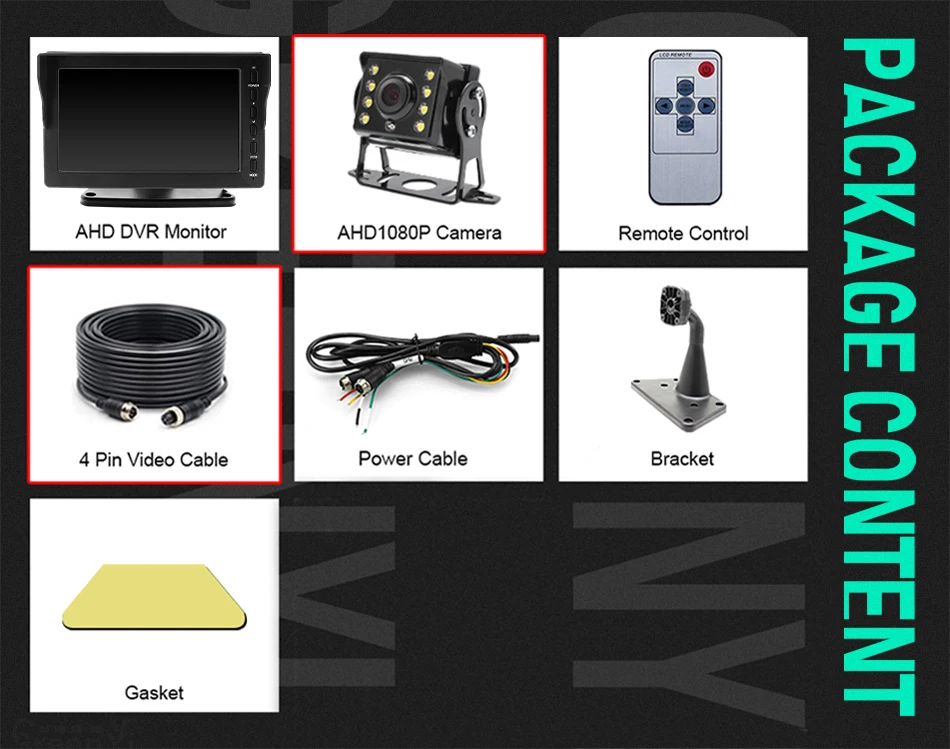

Package Content:

8 inch AHD DVR Monitor
AHD 1080P IR Cameras ( 1~2pcs, Optional )
Remote control
4 pin video cable ( Length and quantity are optional )
Power cable
Fixed bracket
User manual

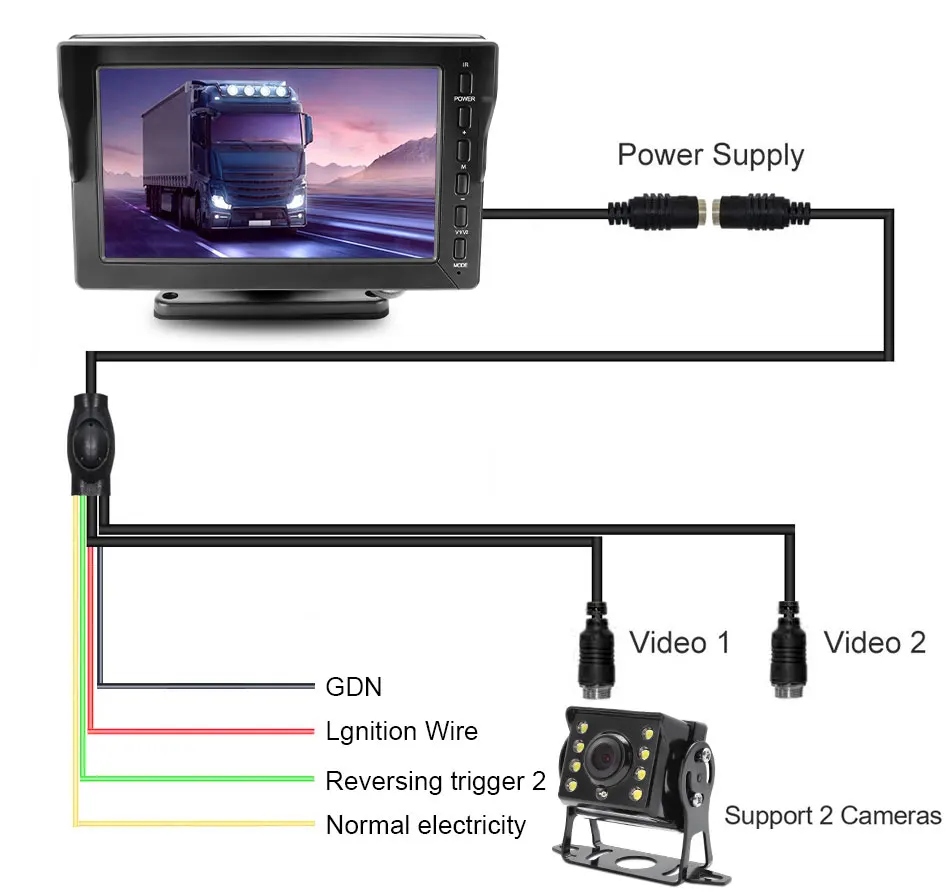

Installation Guide:
