Новый ISDT BattGO BG-8S 1-8S Lipo умный проверяющий балансировщик напряжения ячеек быстрой зарядки с 260000-цветным экраном на солнечном свете.

Новый ISDT BattGO BG-8S 1-8S Lipo умный проверяющий балансировщик напряжения ячеек быстрой зарядки с 260000-цветным экраном на солнечном свете.

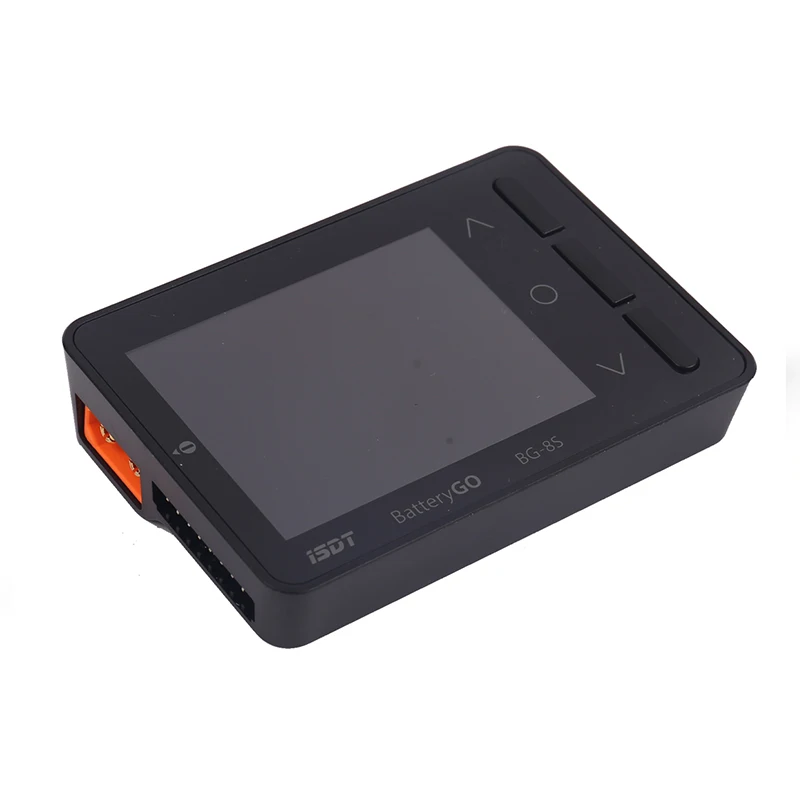

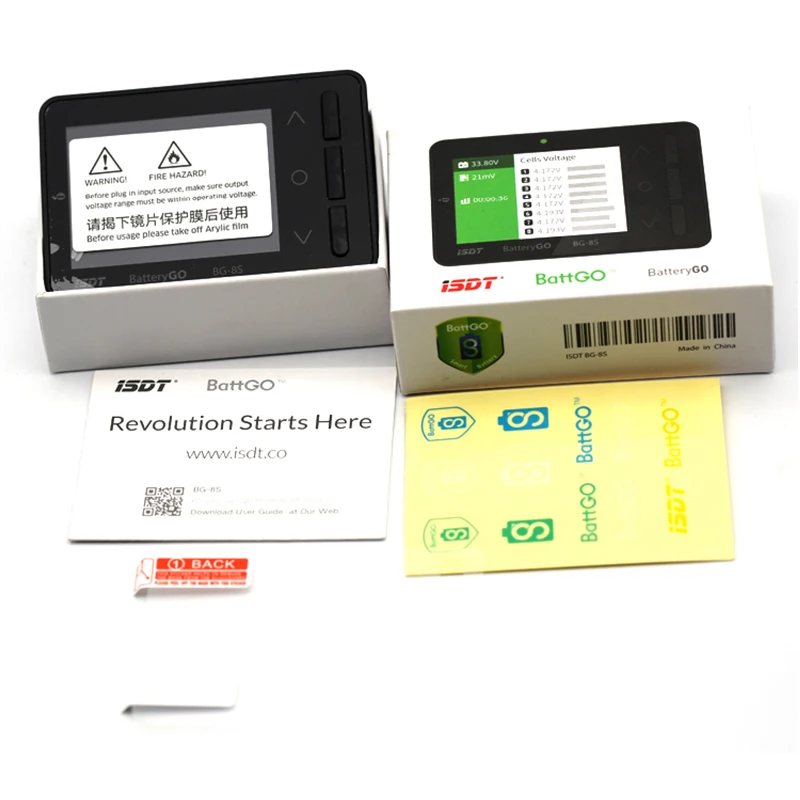

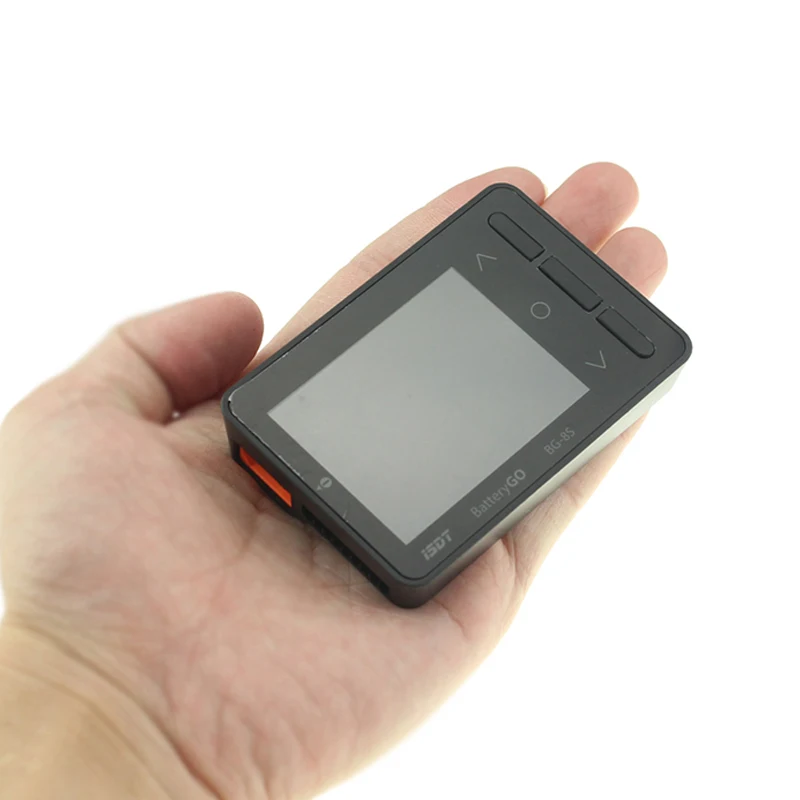

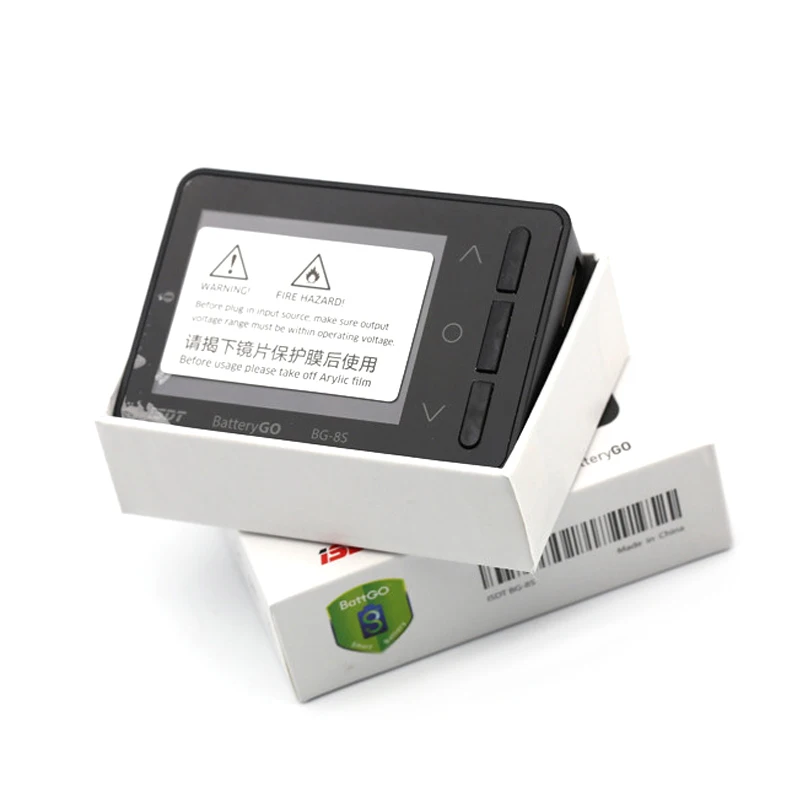

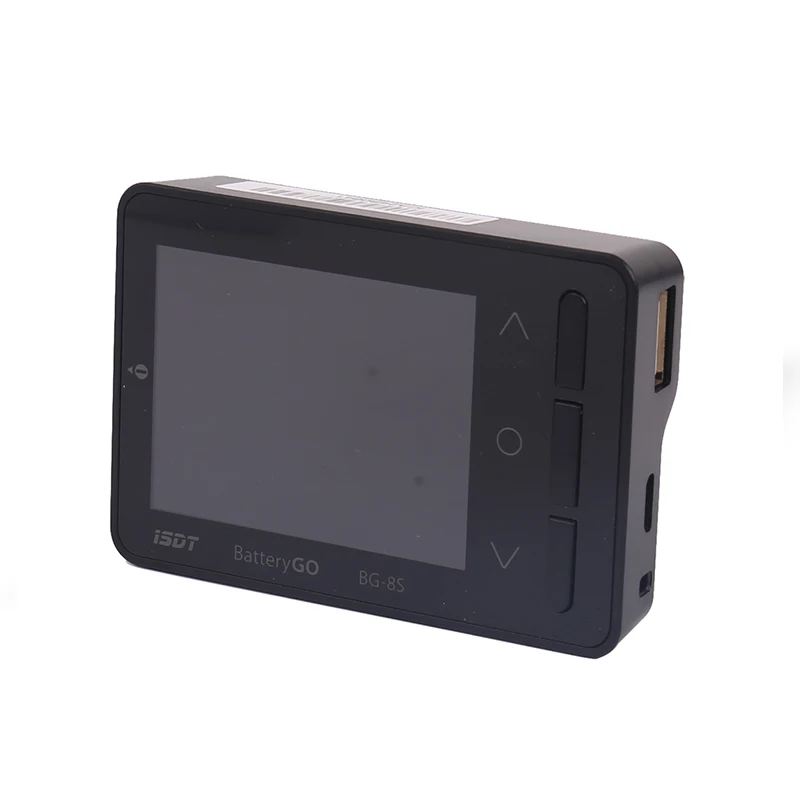

Item: ISDT BattGO BG-8S Intelligent Electric Display
Parameters:
Brand: iSDT
Model: BG-8S
Operating temperature: 0-40°C
Operating humidity: 10%-90% RH (non-condensing)
Storage temperature: -20-60°C
Storage humidity: 5%-90% RH (non-condensing)
Operating voltage: 5.0V-36V
Input voltage: 0.8V-15V
2-8S input voltage: 0.8V-4.8V
Battery cells: 1-8S
Voltage measurement accuracy: ±0.005V 4.2V
Accuracy of balancing cells: 〈 0.005V
Support USB charging: Q C 2.0/3.0, BC1.2, max output 12V/2A
Support smart battery: charge and discharge settings,Read battery information and usage history.
Batt compatible Type: LiHv(1-8S)/LiPo(1-8S)/LiFe(1-8S).
Lilon(1-8S)/NiMH/Cd(1-10S)
Screen: 2.4/320x240 260,000 color IPS LCD
Dimensions: 80x55x19mm
Weight: 59g

The detection port of this product is suitable for the lithium battery connected to the XH2.54 balance interface. When connecting the battery, use "BAT-" as the alignment. When connecting to the 1S battery, the XT60i input must be greater than 5V to work.

Features:
Smart battery tester
260,000 color display viewable under strong sunlight.
Exquisite and powerful BG-8S Smart Battery, supporting BattGO technology.

Make the battery smarter
Cooperating with BattGO technology, just with XT60i connected and you can get full knowledge of your battery's detail parameters. Easy to read cell voltage, battery circulations, working parameters and quick setup to your preferred setting.

Automatic balancing cell voltage
Advanced auto balance algorithm, make sure each cell is well balanced. After completing the car in low power mode.

Powerful portable charging function
Connecting to your battery, BG-8S can become your power bank for mobile devices. Compliant with Qualcom QC 2.0/3.0, compatible with BC1.2 and Apple devices. Maximum output 12V/2A.

Receiver signal test and protocol analysis
With standard 3-pin plug, the BG-8S cabinet detects the BEC output voltage. BG-8S also supports multi-protocol analysis, including PWM, PPM, S.BUS, etc. With future firmware updates, more protocol analysis will be supported.

Multiple measurement connections

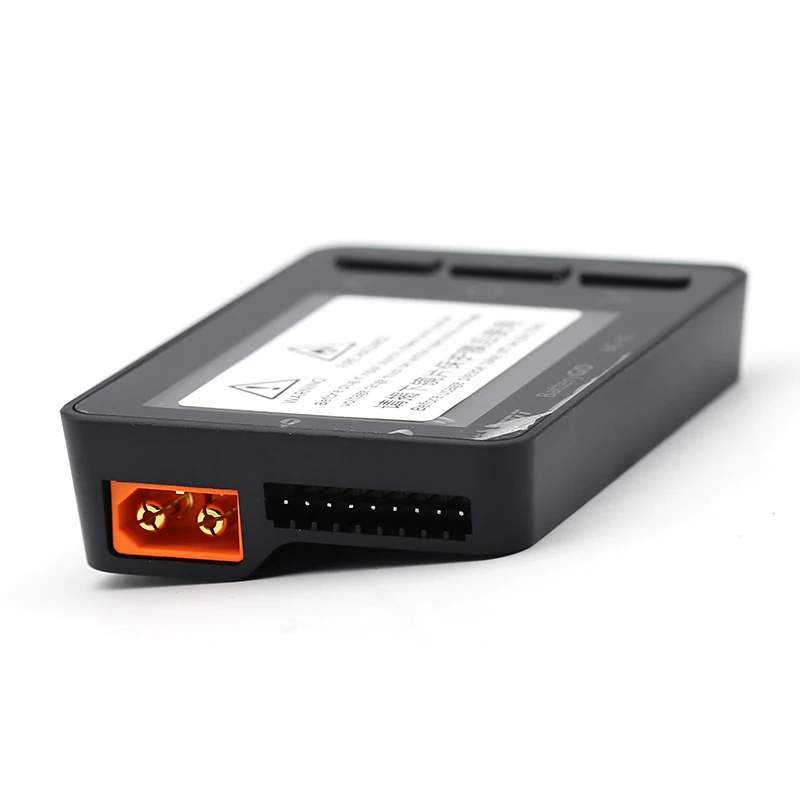

Support XT60/XT60i, XH2.54 1-8s balance lead, XH2.54 3pin, JST, ETC. To measure the voltage. Compatible with LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements.

Support USB update, multi-language options
BG-8S has Micro USB port, easily connect to PC for firmware upgrade.

XT60i for BattGo
BG-8S uses XT60i connector jointly developed by ISDT and Amass, compatible with BattGO technology and highly compatible with xt60 plugs.
