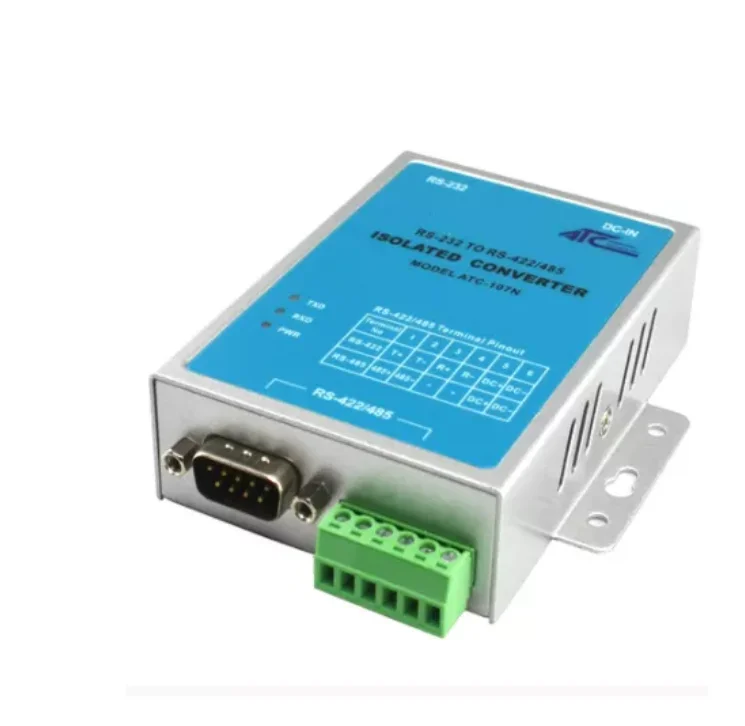

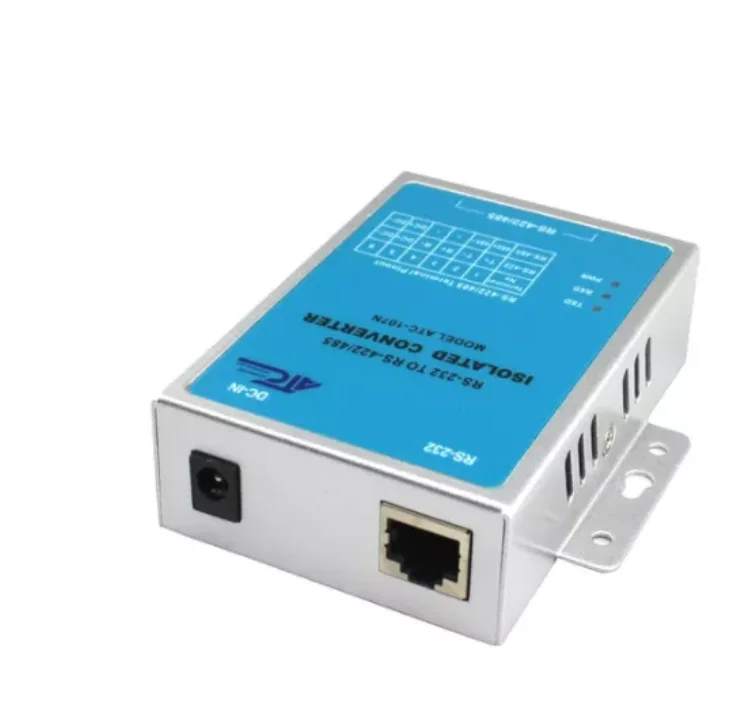

ATC-107N Isolation Interface Converter is compatible with RS-232C, RS-422, RS-485 standards and capable of converting single end RS-232 signal into RS-422 or RS-485 signal of balanced signal. The built in photoelectric isolator can offer 3500V isolation voltage and the rapid Transient Voltage Suppressor (TVS) can effectively inhibit lightning and ESD, prevent lightning strike and common code interference.

Communication Parameters

Interface

Compatible with EIA/TIA RS-232C, RS- 485/RS-422 standard

Working Mode

Asynchronous half or full duplex

Direction Control

Automatic direction control of transmitting data (TXD), zero-latency design

Baud rate

300-115.2kbps

Transmission Distance

0-5 Km

Transmission Media

Twisted-pair cable or shielded cable

Connector

RS-232

RJ-45 connector, Equipped with DB9 cable.

RS-485/422

DB9 male or 6-pin Terminal block

Load Capacity

Point to multi-point, allow to connect 256 RS-422 or RS-485 interface device

Power Parameters

Power Supply

RS-232 is serial port power theft.

RS-422/485 is power converter

Isolation

Isolation voltage 3500VRMS 500VDC sequence

Protecting Grade

RS-232 interface 600W lightning strike and surge protection, RS-422, RS-485 interface 1000W lightning strike and surge protection on each line

Physical Characteristics

Signal Indication

3 signal indication lights indicate TXD RXD and PWR

Housing

Iron shell

Weight

0.5Kg

Dimensions

100mmx86mmx26mm

Environmental Limits

Operating Temperature

-20 ~ 70°C (-4 ~ 158°F)

Ambient Relative Humidity

5% to 95%(non-condensing)

Standards and Certifications

RoHS, CE, FCC

The product application
Company products are widely used with the electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart CARDS, and other industries, production and sales of the products of the company, supporting complete, cost-effective, timely and thoughtful service, products are exported to Taiwan, Hong Kong, South Korea, Thailand, the United States, Poland, Italy, Spain, Egypt, Russia, Norway, Singapore, Malaysia, Indonesia, and other national regions, well received by clients at home and abroad.

Product connection instance

product size chart

The product packing list

ATC - 107 n (RS - 107 RPM data interface RS - 485/422 light barrier power converter (DB9, six terminals))
