FHP2P01 Grandway PON Optical Power Meter for EPON GPON xPON OLT-ONU 1310/1490/1550nm |

FHP2P01 Grandway PON Optical Power Meter for EPON GPON xPON OLT-ONU 1310/1490/1550nm |

NOTICE:

1.Buyer is responsible for the customs duty and local import taxes etc. The price here not

includes the destination fee in buyer's side.

2.Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after placing the

order

3.For some sepcial countries, like Brazil, Mexico, E-packet and China Post delivery time may

be around 20-90 days

General Description:

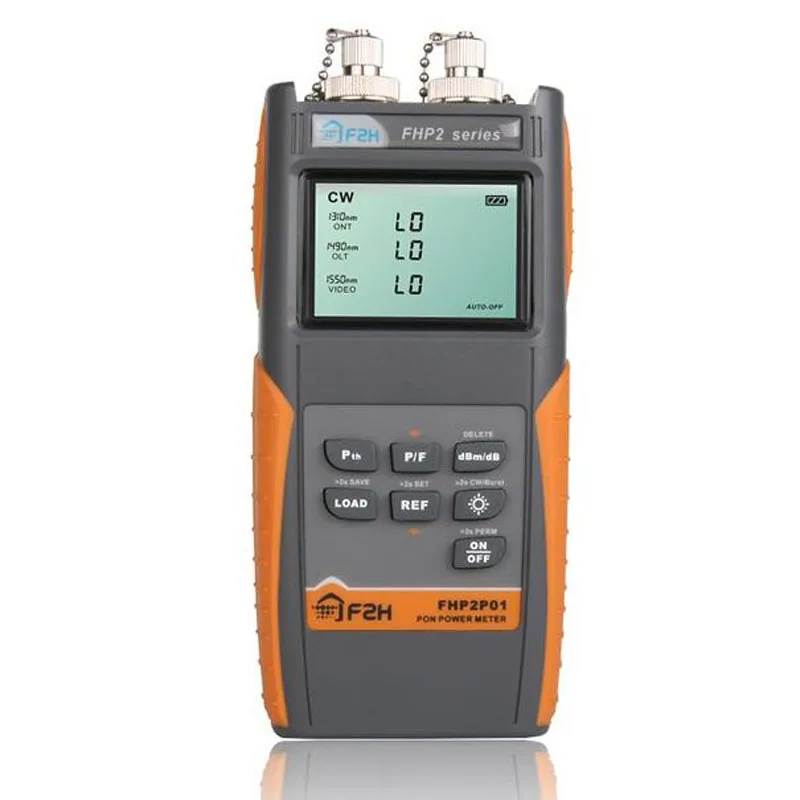

FHP2P01 PON power meter is a small size, low loss and good quality handheld optical power meter. It is designed for the testing , installation and maintenance of FTTX PON network , which can be used for APON, BPON, EPON and GPON network. FHP2P01 has two output ports for ONU and OLT/Video, which supports CW/burst upstream detection at 1310nm and downstream signal at 1490/ 1550nm. It can directly show the status of pass , warning or failure by threshold testing . FHP2P01 is the ideal tool for PON setting and maintenance.

Features:

♦  Handed-held, Easy-to-carry and use

♦  P/F testing and normal testing mode

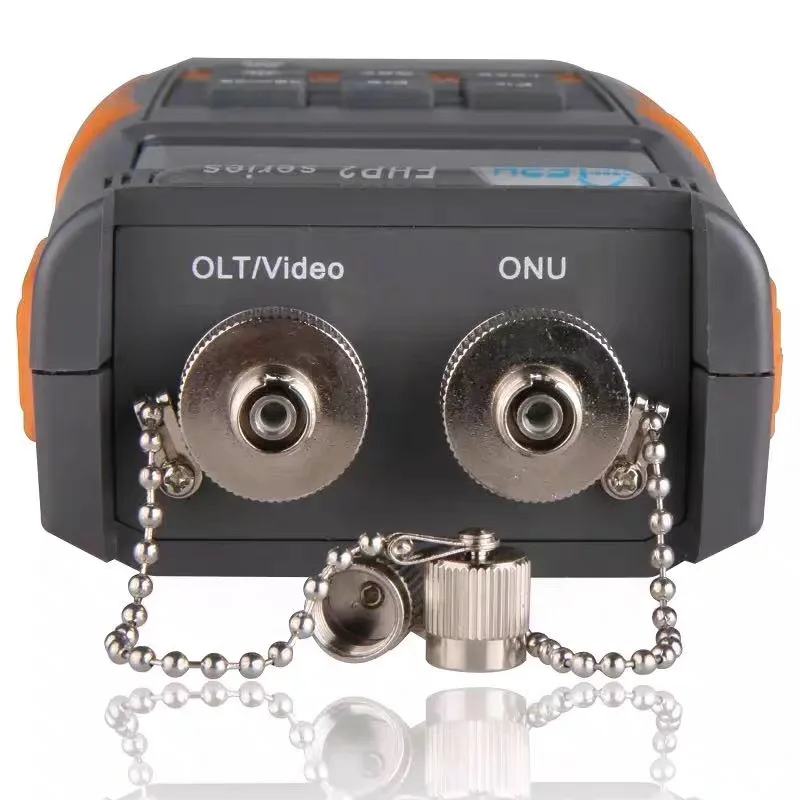

♦Two testing ports with " ONU " & " OLT/Video "

♦Support 1310nm upstream CW/brust signal and 1490nm /1550nm downstream signal

♦Design for networks of APON, BPON,EPON and GPON

♦Threshold programmable

♦Huge data storage capability

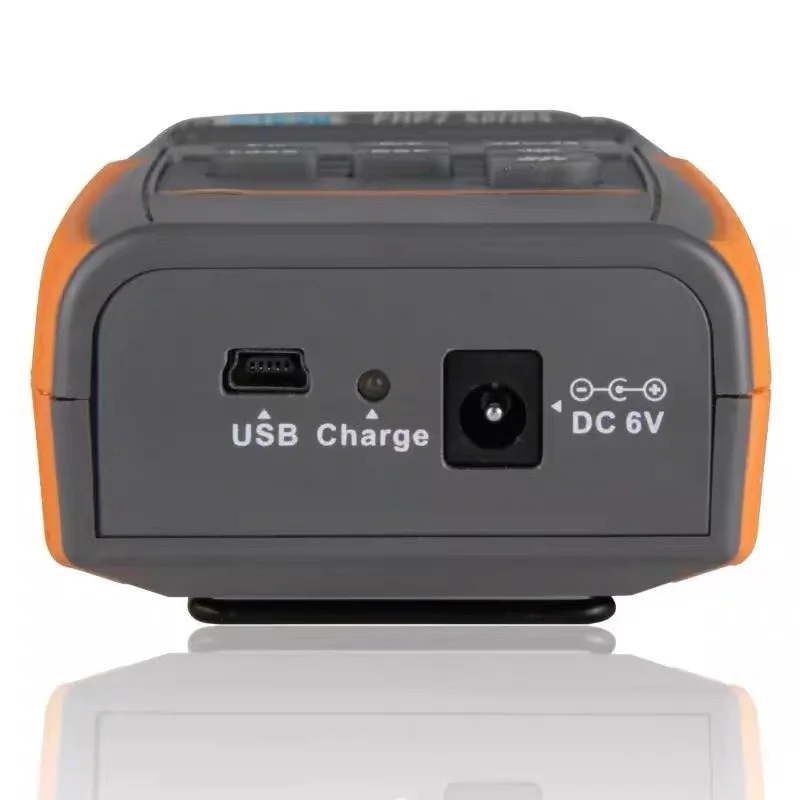

♦USB integrated

♦Built-in Battery charger

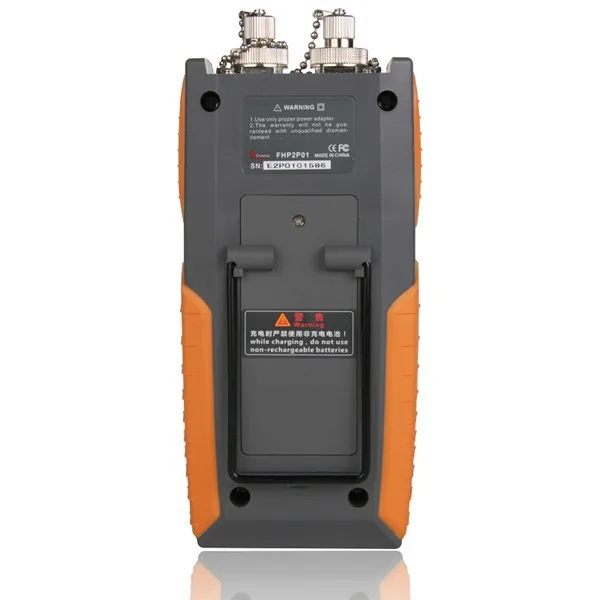

♦2pcs of AAA battery as power supply

♦provided Software for communicating with upper-computer

Specification:

Calibrated Wavelength

1310nm (Burst)

1310nm (CW)

1490 nm

1550 nm

Linearity

± 0.2@1550 ≥ -40dBm

Isolation Rate

>40@1490nm

>40@1310nm

>40@1310nm

>40@1550nm

>30@1550nm

>30@1490nm

Measuring Range (dBm)

-30~+16

-40~+16

-50~+16

Insertion Loss(dB)

1.5

Broadband

1260~1360

1480~1500

1539~1565

Accuracy

0.5db±1nW @ 1550 nm

Threshold

10 groups(configure via PC-software)

Data storage

900

Accessories adaptors

FC/PC(standard)

ST/PC ,SC/PC (Optional)
