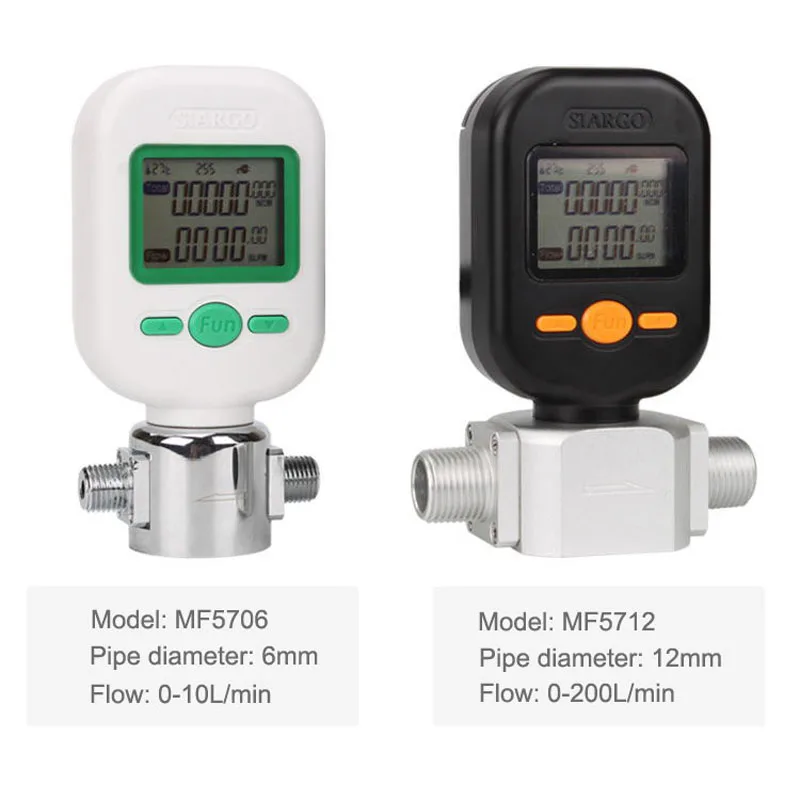

MF5706 (0-10L/25L) MF5712 (0-200L) Gas Mass Flow Meter Compressed Air Nitrogen Oxygen Argon Carbon Dioxide Digital Flowmeter

Features and Applications

- Ultra low power by batteries or optional external AC adaptor
- Potable design with rotatable meter head and easy exchangeable mechanical adaptors
- Customizable flow range with over 30:1 turn-down
- Rs485 Modbus protocol ready for networking
- User programmable range alarm for safety and other monitoring/control functionality
- Internal data storage for additional data safety
- Hygienic and oxygen safe copper body for various fluids

Specification:

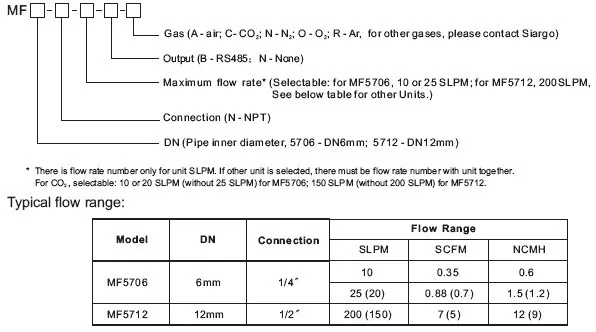

Flow Range:0-10/25/200(L/Min)

Accracy:± (2.5+0.5FS)%

Repeatability:0.5%

Response Time:≤ 2sec

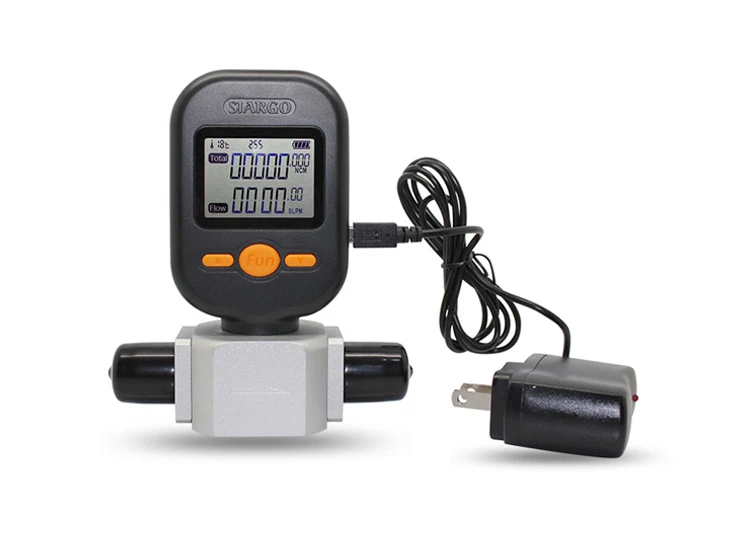

Power Supply:4*AA Batteries(Not Included) or External AC Adaptor

Power Dissipation:≤ 10mW

Output:RS485

Display:LCD

Display Unit:Instant

Flow Rate:SLPM(L/min)

Flow Accumlation:NCM(m3)

Display Resolution:0.01L/Min(MF5712 is0.1L/Min)

Functions:Password Setting; Total Setting & Resetting; Alarm Function

Working Pressure:≤ 0.8MPa

Working Temperature:-10 ~ +55℃

Pressure Loss:≤ 600Pa(MF5712 is ≤ 2000Pa)

Continuous Working Time:> 60 days (With Batteries)

Standard Calibration Gas:Nitrogen, 20°C,  101.325kPa

User Interface:MINI USB

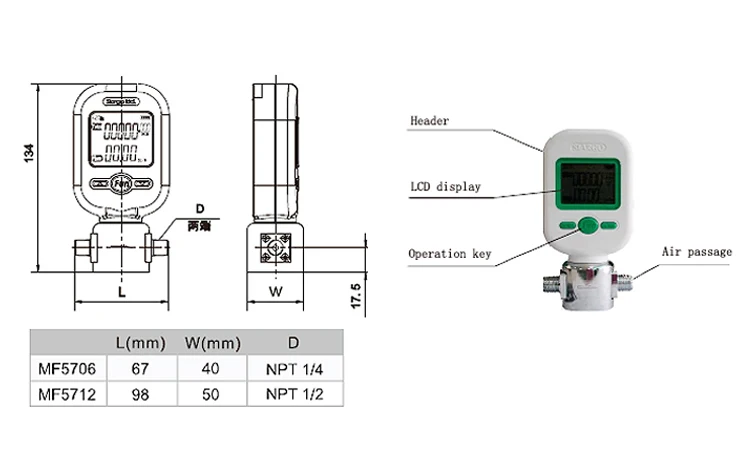

DN:6mm(MF5712 is12mm)

Mechanical Connection:NPT 1/4″(MF5712 is1/2″)

Precautions for use:

1. The main measuring gases are: air, nitrogen, oxygen, argon, carbon dioxide. During the measurement process, the gas should be dry, pure and free of impurities (if the gas is not pure and there are impurities, it needs to be prepared for filtration and drying equipment);

2. Compressed air must have drying and filtering equipment;

3. Avoid gas impact during use, switch valves need to be carried out slowly;

4. Be sure to use within the specified flow and pressure range.
