Warm Reminder

bands Situation For 3G or 4G modules, different carriers in different countries have different bands and frequencies. Please tell me the bands or frequencies. Then we can choose the right 3G or 4G module

Version 1

FDD (B1/B3),

WCDMA (B1).

Applicable to some countries in Southeast Asia, such as Thailand, Singapore, Indonesia, Cambodia, Myanmar, Philippines, etc.

Version 2

FDD(B1/B3/B5/B8).

TDD(B38/B39/B40/B41),

WCDMA(B1/B5/B8),

GSM(B3/B8).

Applicable to most Asian countries, such as Israel, Korea, India, Kazakhstan, Sri Lanka, Thailand, Japan, Singapore, Indonesia, etc.

Version 3

FDD(B1/B3/B7/B8/B20).

TDD(B38/B39/B40/B41),

WCDMA(B1/B8),

GSM(B3/B8).

Suitable for all countries and regions in Europe, Africa and Asia, such as Russia, Israel, Korea, Saudi Arabia, Spain, Brazil, Austria, Ukraine, UK, France, Germany, Italy, Norway, New Zealand, Czech Republic, Australia, Netherlands, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.

If you don't know the 4G band used in your country, please open the following website:

//en.wikipedia.org/wiki/List_of_LTE_networks

Chip: ZX297520V3E+RTL8192ES
Wireless performance and hardware interface and characteristics
Wireless performance specification description, hardware feature specification description
Frequency band configuration
-C typical configuration:
Antenna interface 4G*2, wifi*2, GPS*1
USB interface USB 2.0*1
Network port 100M-single network port

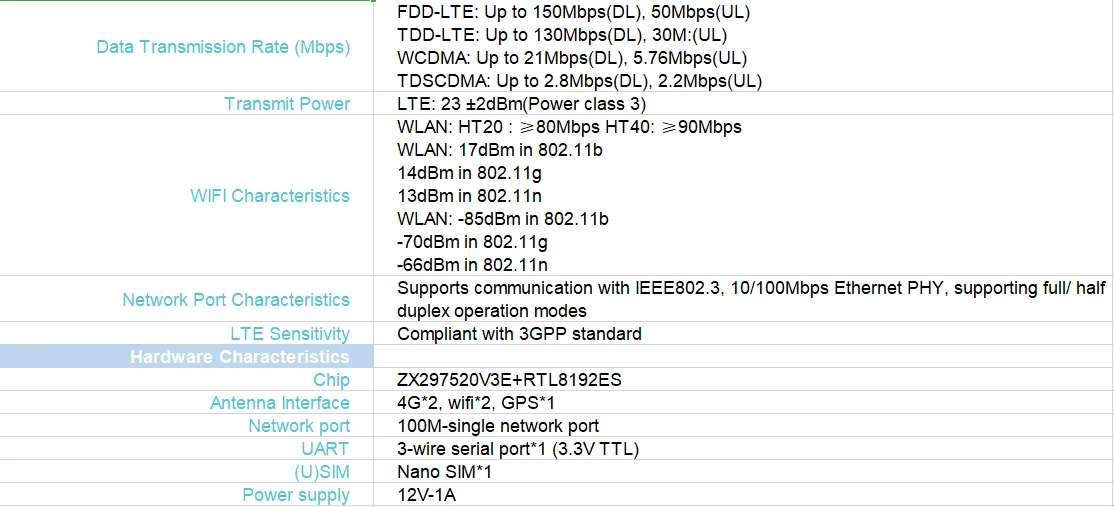

Data transfer rate
(Mbps)
FDD-LTE: Up to 150Mbps(DL), 50Mbps(UL)
TDD-LTE: Up to 130Mbps(DL), 30M:(UL)
WCDMA: Up to 21Mbps(DL), 5.76Mbps(UL)
TDSCDMA: Up to 2.8Mbps(DL), 2.2Mbps(UL)

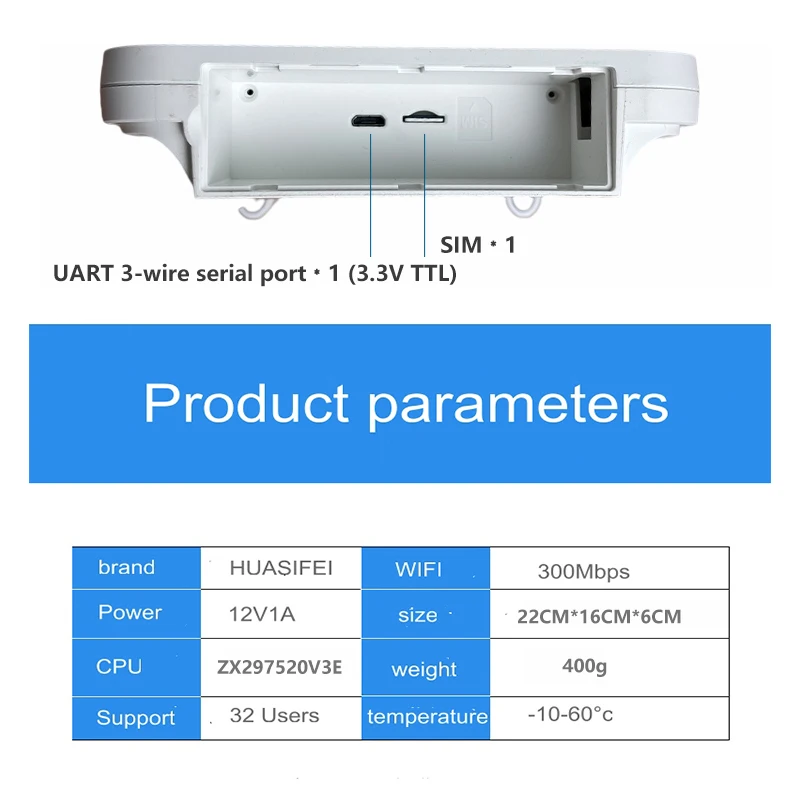

UART 3-wire serial *1 (3.3V TTL)
(U)SIM Nano SIM*1
Power supply 12V-1A

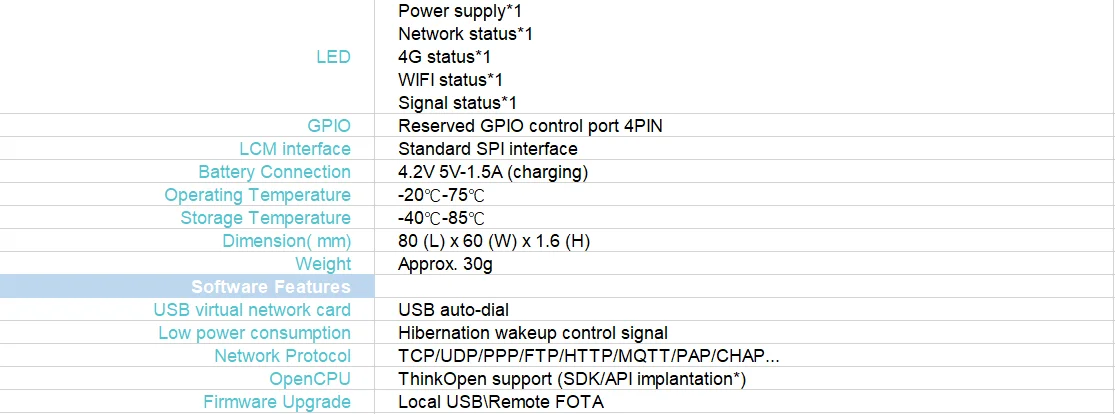

Transmit power LTE: 23 ±2dBm (Power class 3) LED
Power *1
Network status*1
4G status*1
WIFI status*1
Signal status*1
WIFI characteristics
WLAN: HT20: ≥80Mbps HT40: ≥90Mbps
WLAN: 17dBm in 802.11b
14dBm in 802.11g
13dBm in 802.11n
WLAN: -85dBm in 802.11b
-70dBm in 802.11g
-66dBm in 802.11n
GPIO reserved GPIO control port 4PIN
LCM interface standard SPI interface
Network port features support and meet IEEE802.3, 10/100Mbps Ethernet
PHY for communication, supports full duplex/half duplex working mode
Battery connection 4.2V 5V-1.5A (charging)
Working temperature -20℃-75℃
Storage temperature -40℃-85℃
Dimensions (mm) 80 (L) x 60 (W)x1.6 (H)
LTE sensitivity complies with 3GPP standard, weight is about 30g
Main software functions
USB virtual network card USB automatic dialing
Low-power sleep wake-up control signal
Network protocol TCP/UDP/PPP/FTP/HTTP/MQTT/PAP/CHAP...
OpenCPU supports ThinkOpen (SDK/API implantation*)
Firmware upgrade local USB\remote FOTA
