Ultrasonic Liquid Flow Meter Transducer RS485 MBUS Small Diameter DN15-40mm Threaded Connection Copper Pipe Smart Watermeter

Sandwich insertion water meter is a new series of patented product.Its a new-style water meter specifically designed for agricultural irrigation,garden management and water resource supervision.

Advantage of this water meter including low cost,high accuracy, low power consumption,stability and reliability.

1inch thickness of the meter help to save the installation space,and all parts achieve to IP68 enable the water meter work in any severe environment.

Features:

1.Protection Level IP68

Whole machine waterproof:whole machine sealed completely,reach IP68 protection level.

Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water.

2.Built-in Volume Controller,Built -in Time Accumulato

Automatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively.

Time-sharing flow accumulation within the set period of time,to achieve gradient rate.

3.Untrasound Measurement No rotation, No moving Parts

Ensure Long-term high measuring accuracy.

Apply to varieties of water quality,including the water contain gravel and weeds.

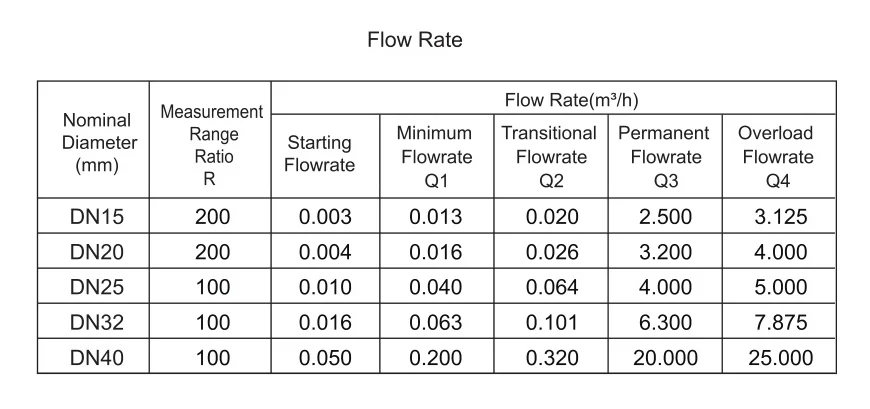

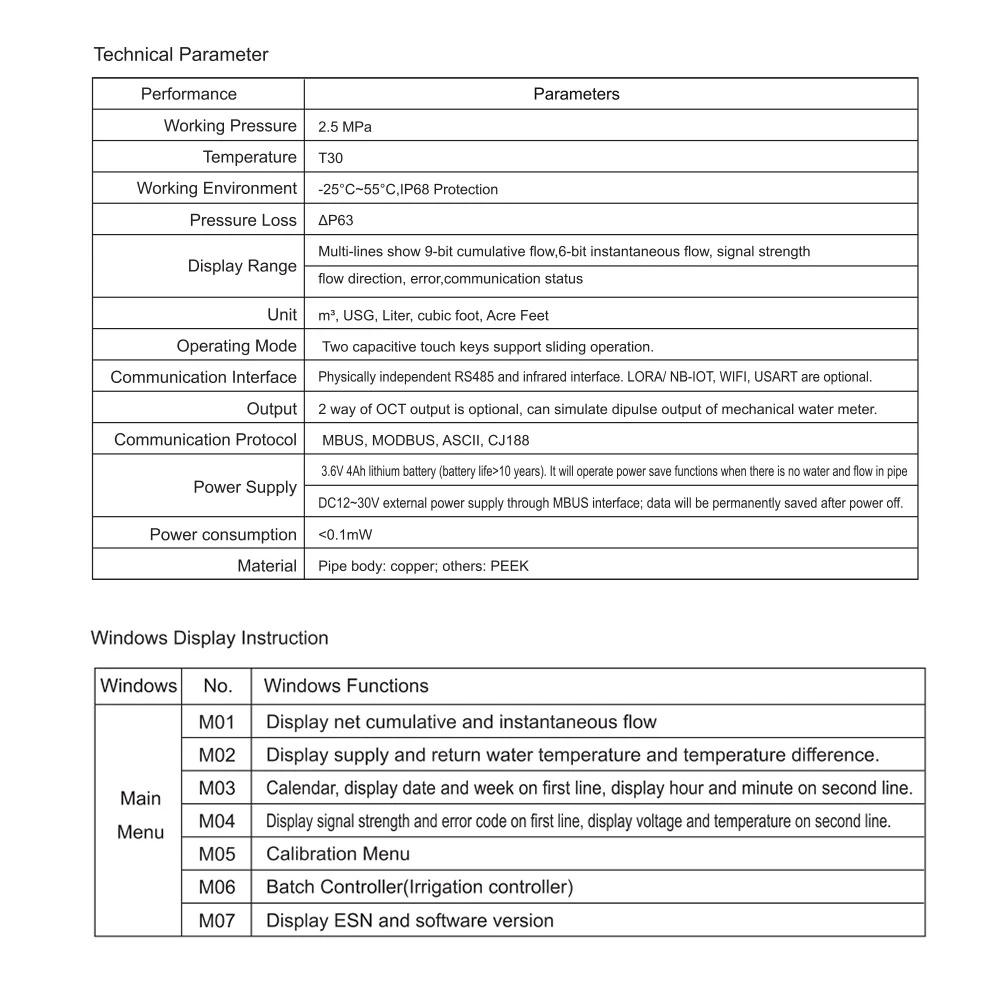

Parameter:
