Football field cold paint road line marking machine

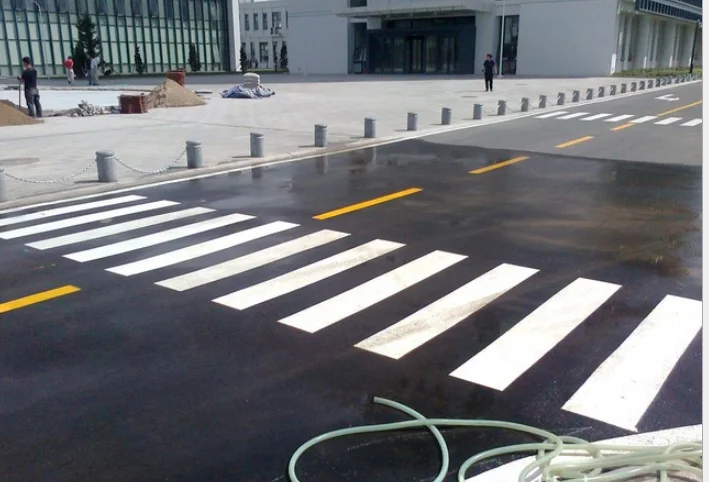

This product is widely used in roads, bridges, railways, factories (within), coal mines, car parks, city markets and airport runways.

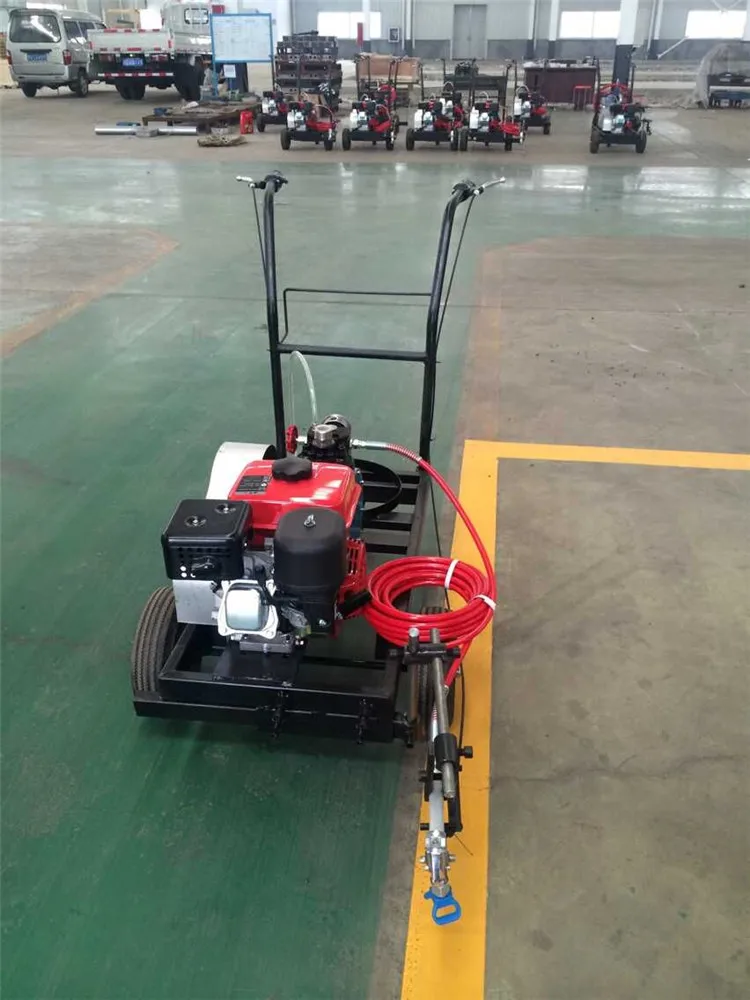

Hand Push Cold Paint Road Marking Machine has the features of flexible operation,small size, light weight, marking clear and full lines, spraying high adhesive force of paint and a wide range of applications in marking and spraying.

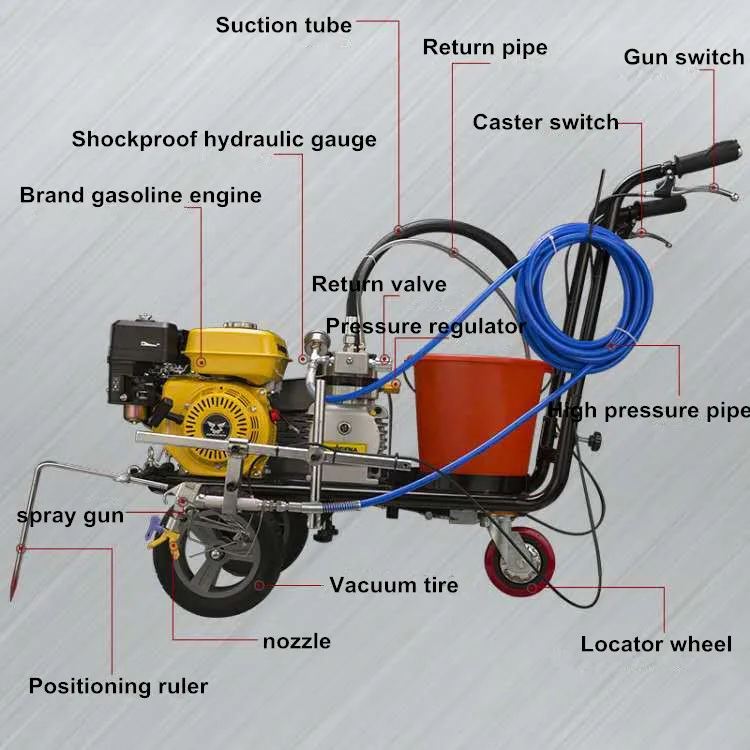

1.Airless spraying painting technology for which the high-pressure pump is driven by a gasoline engine as been adopted in the line marking machine to create clear, smooth, saturating and even limes, providing a high working efficiency;
2.Both sides of the spraying gun are equipped with a limiting disc plates, ensuring the line free of raw edges, such plates may be lift through a pulling line insteering, turning flexibly;
3.The spraying gun may be conveniently dismantle different nozzles and control theline width, suitable for common airless spraying for marking or labels;

Model

Single nozzle

Double nozzles

Engine power

4.3hp

7hp

Discharge

6L/min

8L/min

Max output

25mpa

30mpa

nozzle

517(<15cm)

517(<15cm)

High pressure tube strength

35mpa

35mpa

High pressure tube length

diameter 6x10m

diameter 6x10m

Net weight

72kg

130kg

Max working width

20cm

45cm

 Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.

We believes that good quality can give us survival, thus we only provide you top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!

 1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
