MKS TFT32 is a colorful touch screen which is used independently on 3d printer.

This display is no need to set mainboard firmware and work together directly.

And it is easy to replace into your logo and edit your local language.

Also, it is available to self-define some commands .

Attention: MKS TFT32 can't work with Ramps1.4.

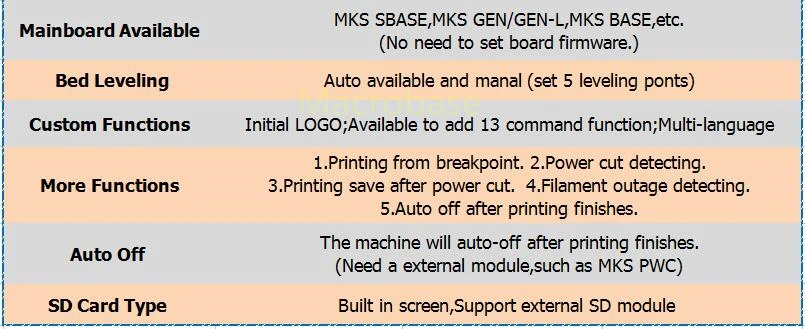

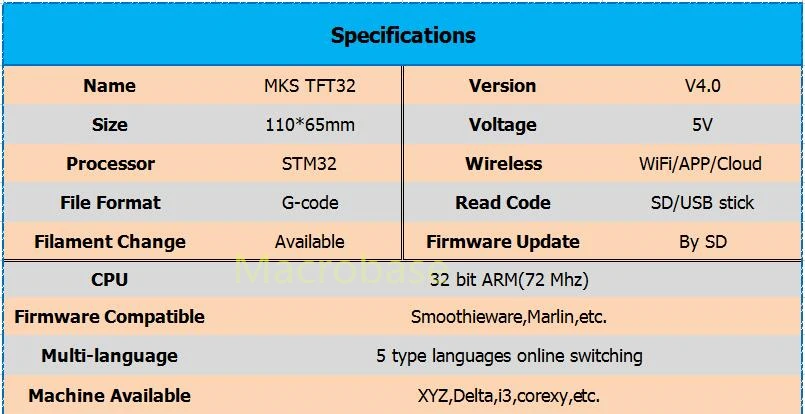

More features as follows:

Packing List

1*MKS TFT32 Touch Screen

1*MKS WIFI Module

1*Filament Sensor

1*Flat Cable

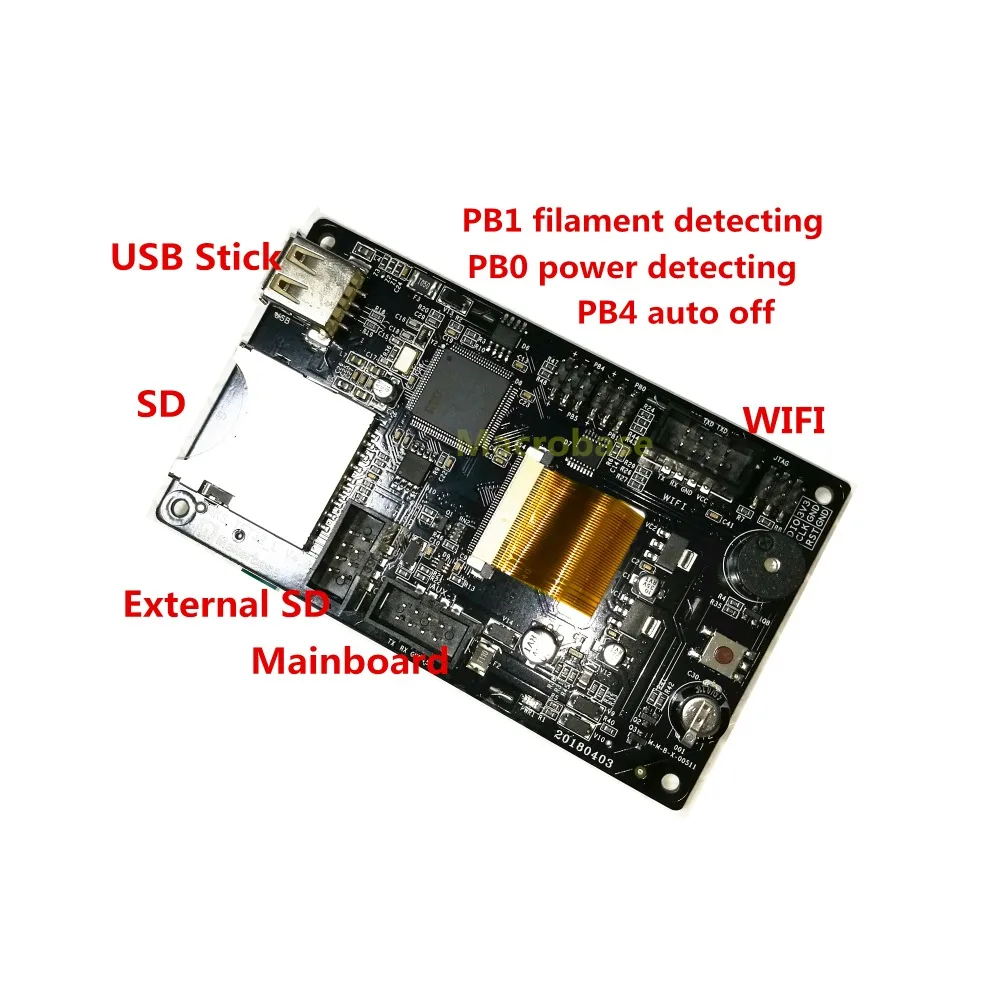

Wiring

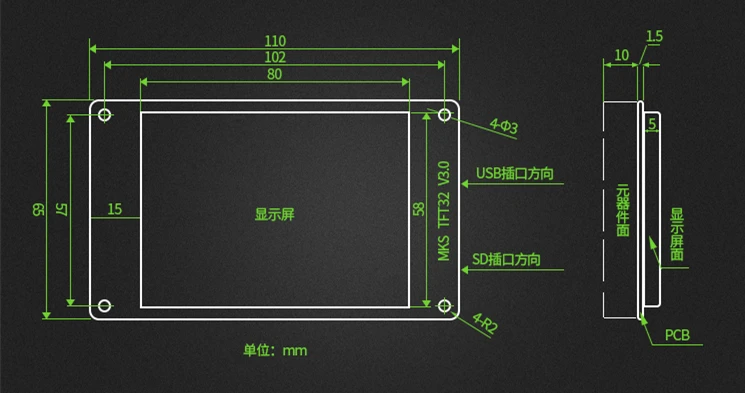

Size

How to assemble with mainboard.

Set the baud rate, ensure both  TFT and controller board are the same.

1.MKS Series mainboards

Such as, MKS SBASE,MKS MINI,MKS GEN,MKS BASE, MKS GEN L,etc.

Flash firmware to mainboard .( TFT display has updated latest config inside already).

Connect TFT display to AUX-1 of the board.

No need to configure on board firmware,they will work together directly after wire.

The boards need a external 12V power supply.

2.Firmware Update

Please copy following documents to the root of SD card.

(Please don't edit the documents name.)

mks_pic        mks_config        mkstft28

Then, plug the SD card to the TFT and power on. It  will update automatically.
