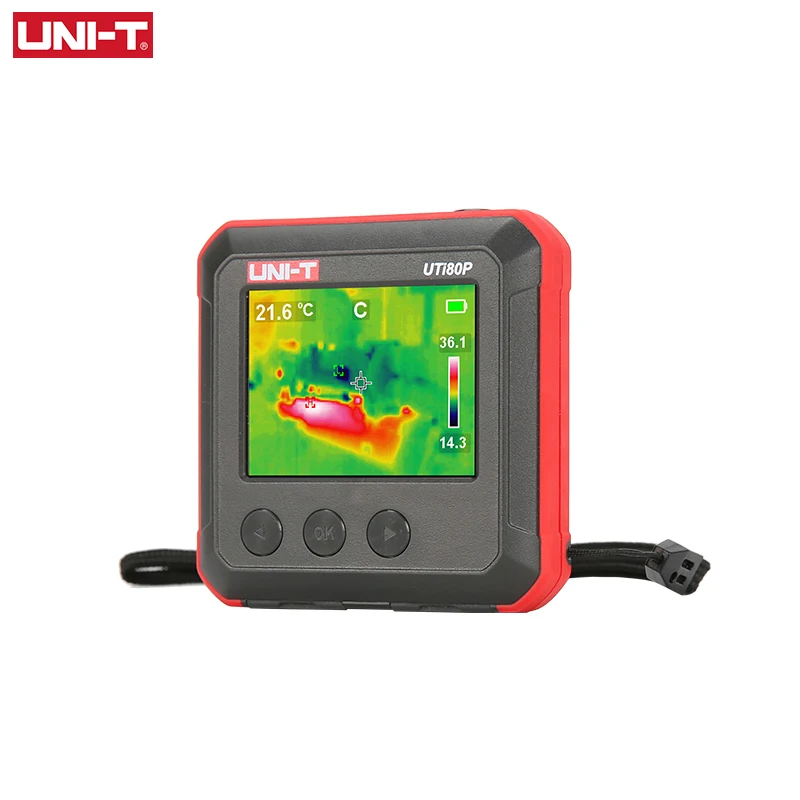

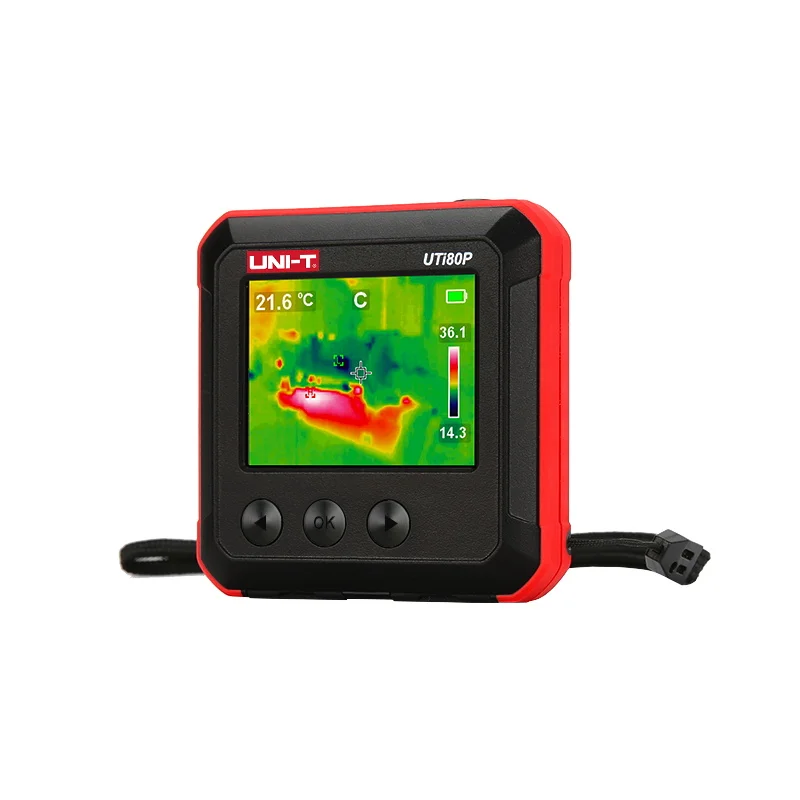

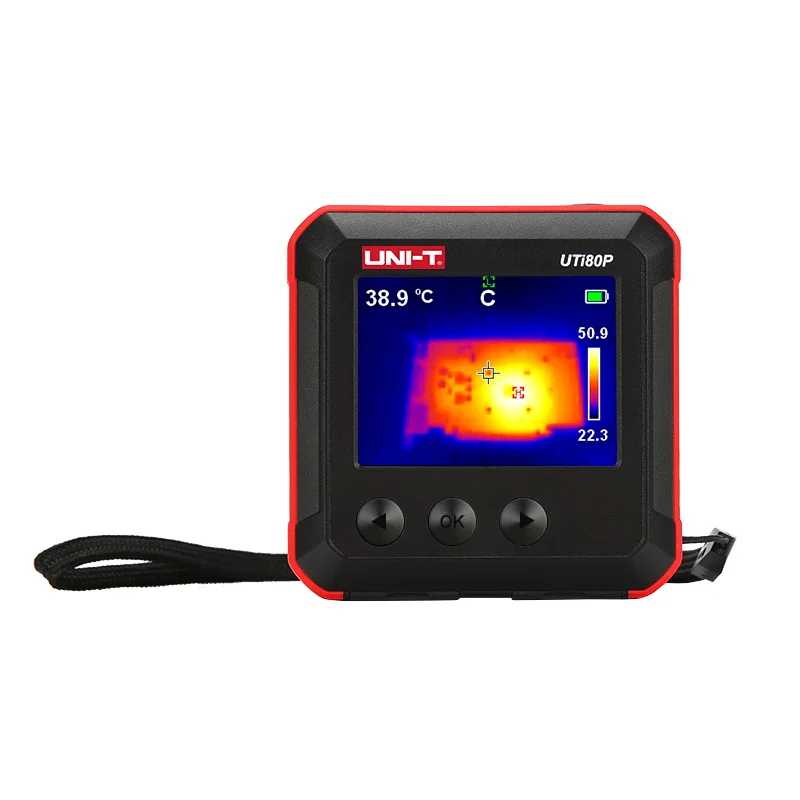

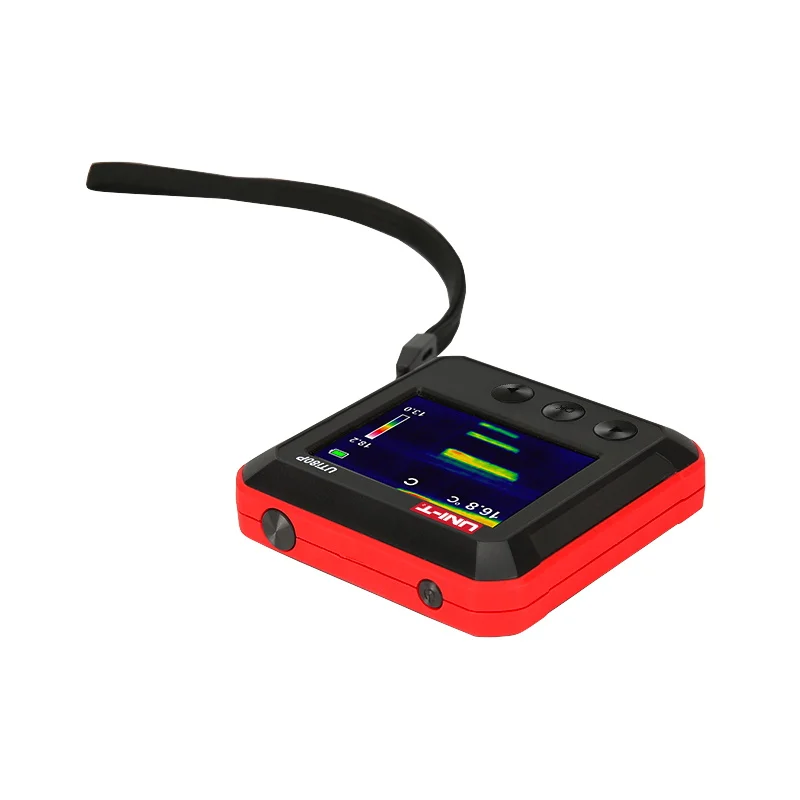

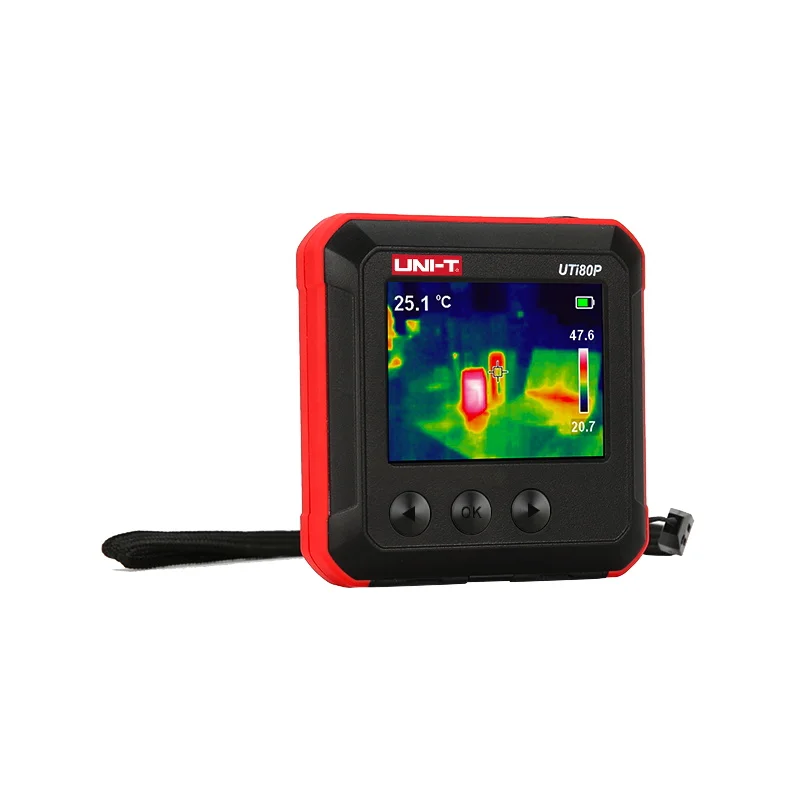

UNI-T UTi80P Mini Thermal Imager Pocket Infrared Thermal Compact Imaging Camera Industrial Temperature Floor Heating Detection

UTi80P is Uni-Trend's latest portable infrared thermal imager with high-resolution (80×60). Users can observe the target object clearly at night and measure the temperature. UTi80 Cube has mulitiple palettes for different scenes. It is equipped with upper computer software and can transmit data through the USB interface, display and analyze all pixel temperatures, and perform high temperature capture which can quickly identify the hot spot location. Designed with high and low temperature alarm/dynamic tracking, adjustable emissivity, UTi80 Cube can meet various user requirements, and its palm-sized volume and complete functions makes it a best choice for DIY hobbyist. It is an ideal tool for on-site temperature detection.

1. Pocket size thermal imager (76mm x 76mm x 22mm)

2. 80 x 60 pixels

3. Temperature range: -10 ~ 450℃

4. Stores photos in SD card

5. High/low temperature tracking

6. Rechargeable lithium battery (through micro USB)

7. PC software for temperature analysis and reporting

Model

UTi80P

Temperature range

 -10~400℃

Basic accuracy

±2℃ or ±2% (-10~140℃);
±3℃ or ±3% (140~450℃)

Resolution

0.1℃

Emissivity

0.95 (0.1~0.99 adjustable)

NETD

≤150mK (0.15℃)

IR resolution

80*60

Pixel size

17μm

Palettes

Iron, rainbow, grey

FOV

51º (H) * 38º (V)

Image frequency

 ≤9Hz

Features

High and low temperature alarm

√

High and low temperature tracking

√

Backlight

High, medium, low

Display

2.4-inch TFT LCD

Display resolution

320 x 240 pixels

General Characteristics

Power

Li-ion battery: 3.7V/1300mAh

Display size

48mm x 36m

Product color

Red and grey

Product net weight

125g

Product size

76mm x 76mm x 22mm
