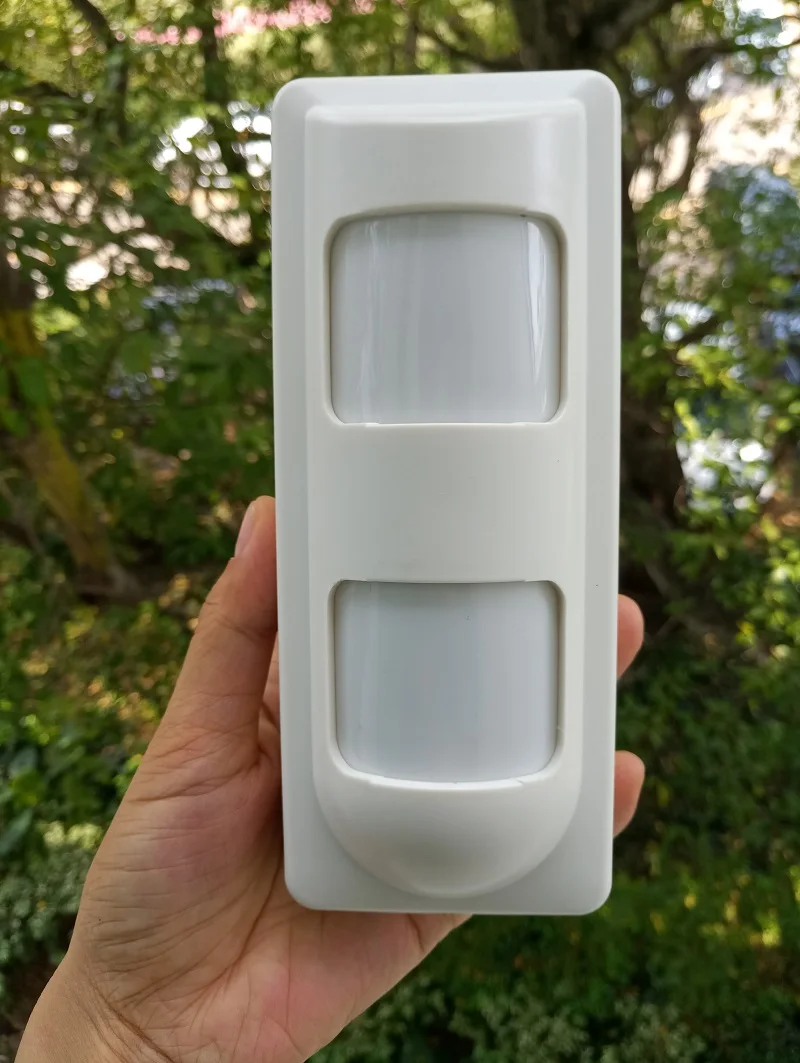

OTD-40T is a special three-tech (PIR+PIR+MW) complex detector for outdoor intrusion. Can offer 3 different detection modes on 2 sensitive grades in order to choose the best detection way for spot environment and gets the best rate between the best detection ability and the minimum false alarm rate. With normal “AND”and “OR” modes, this wired outdoor detector also has “EI” mode to avoid the damage of dopes spraying on the lens. Its unique water-proof design totally fit for outdoor security installation. It also has anti-masking automatic setting and  alarm type memory. Fit for commercial/residential area, factory,hotel,bank, apartment, villa,farm etc...

-Two PIR and MW detection tech

-Automatic setting of anti-masking

-Microwave synchronization

-Detection mode:  EI-OR-AND

-Detection sensitivity can set high or low

-Anti white light

-Anti-pet ≥25kg

-Alternative Led ON/OFF

-Micro-strip MW with pulse transmission

-18 beams Fresnel lens with down-view window on its 4 planes

-Air-proof optical parts

-Total view:100°, Monitoring scale:12m*12m

-90° horizontal adjustment 30° vertical adjustment.

-Multi-direction bracket fit for corner/wall/ceiling mount

Operation voltage/current

9-16V/DC   25mA

Detection distance

12m@110o

Installation height

1.5m-2.4m

MW frequency

10.525GHz

Sensitivity

Low or High for option

RFI/EMI protection

>30V/m   500MHz

Alarm output

200mA/24V

Anti-mask /trouble output

100mA/24V

Tamper output

300mA/24V

Operation temperature

-10~+55oC

Operation humidity

5%-95%(RH)

Anti white light

>10000LUX

Operation mode

Dual-tech or single-tech alarm modes for option

Detection speed

0.2m/s to 3.5m/s

Pet immunity

25Kg (for pet friendly type sensor)

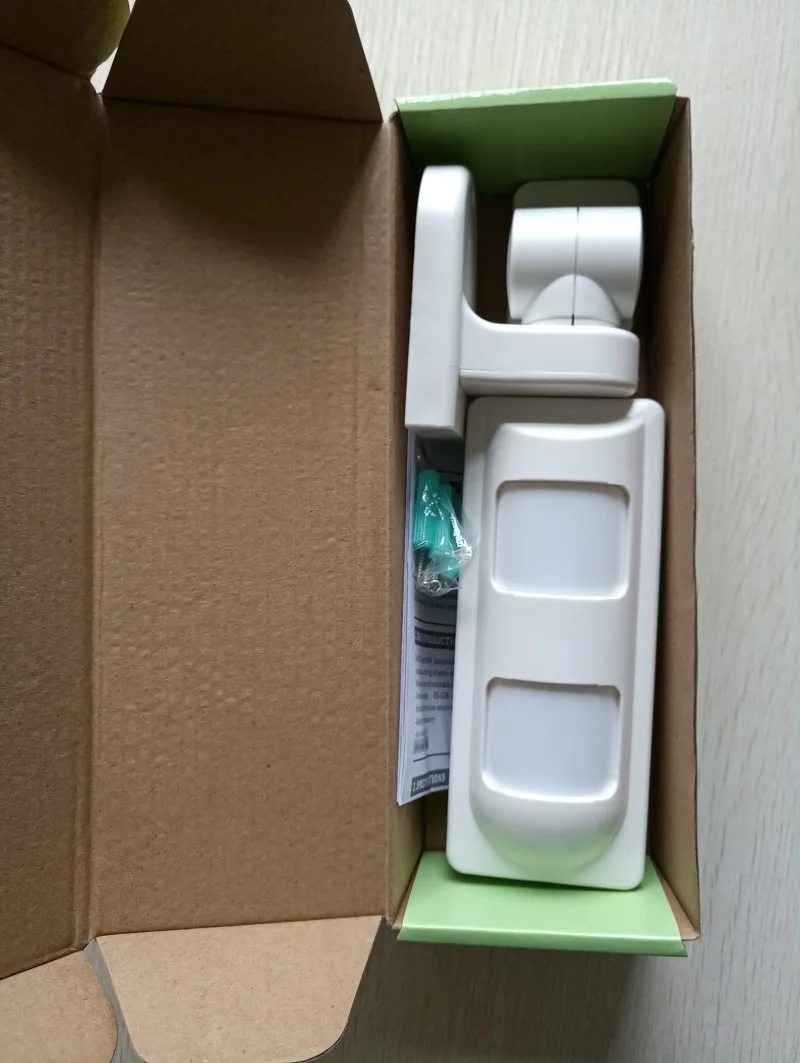

1pc Wired Outdoor PIR Sensor (Bracket, screws, manual included!)

This sensor can not work alone, it works with all alarm system that has wired port.

Note: There are 3 Lens optional: wide angle/pet immune/curtain. Without remark, we will send Pet Immunity Lens as default. Pet Immunity Lens enable pet ( like dog, cat below 30kg) pass the protected zone without trigger alarm. Curtain Lens offer wider range of infrared line protection, like a curtain.
