16 string 48V LiFePo4 battery protection board. With equalization, the same port 30A, 4-16 string universal, can be directly downgraded.
Scope of application: 18650 special lithium battery protection board, scooter, drift car protection board, solar street light, LED protection board, motorcycle lithium battery protection board, tricycle power protection board, backup power lithium battery protection board.
Continuous Discharge Current: 20A
Instantaneous discharge current:100A
Charging voltage: 60V
Maximum charging current: 20A
Overcharge detection voltage: 3.75 +/- 0.025V
Overcharge protection delay: 100ms
Overcharge release voltage: 3.6 +/- 0.05V
Battery balance detection voltage: 3.6 +/- 0.025V
Battery balance release voltage: 3.6 +/- 0.05V
Battery balance current: 40 +/- 5A
Overdischarge detection voltage: 2.1 +/- 0.08V
Overdischarge detection delay: 100ms
Overdischarge release voltage: 2.3 +/- 0.1V
Overcurrent detection voltage: 200mV
Overcurrent detection delay: 15ms
Overcurrent protection current: 120 +/- 20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: Less than or equal to 15 mohm
Working current: Less than or equal to 60uA
Sleep current (when the battery is over-discharged): Less than or equal to 10uA
Temperature range: -30/+80 Celsius
Colour: silver + green
Material: metal + PCB

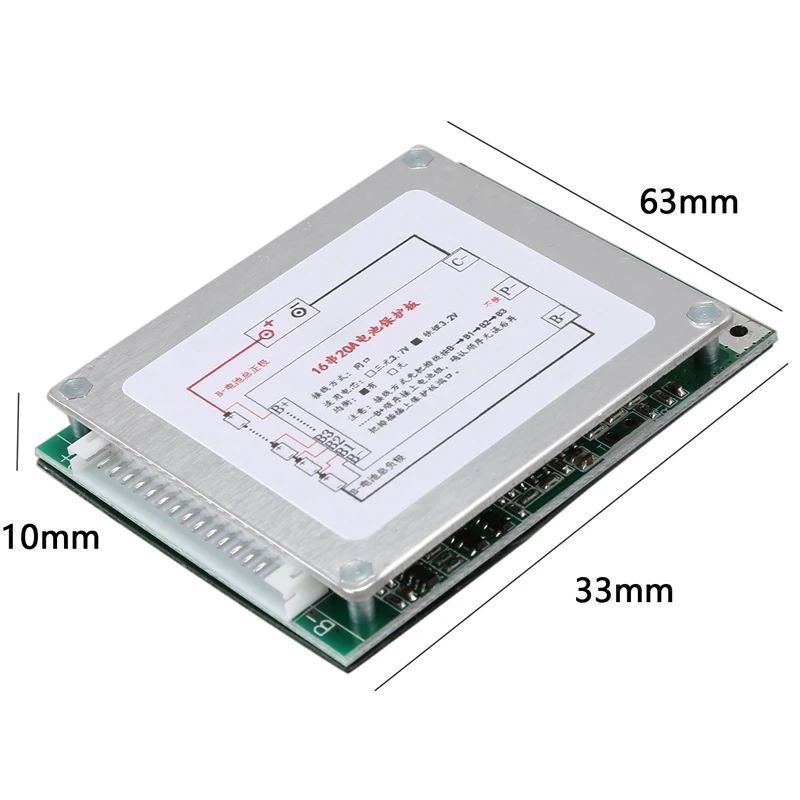

Size: 63*33*10mm
Package Contents:

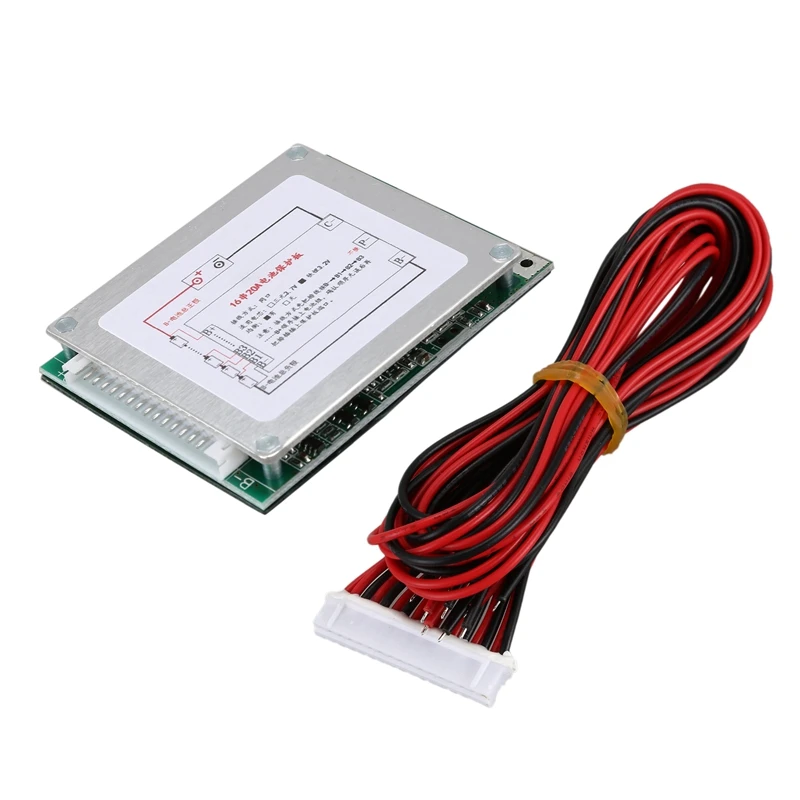

1 x Li-ion Battery Protection Board

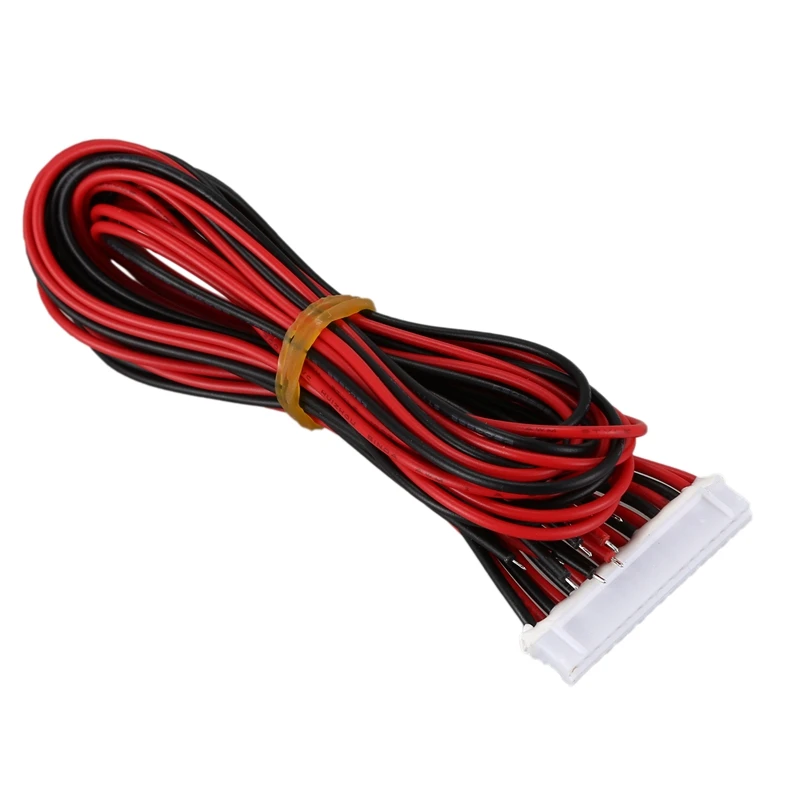

1 x Set of terminal lines
Only the above package content, other products are not included.
