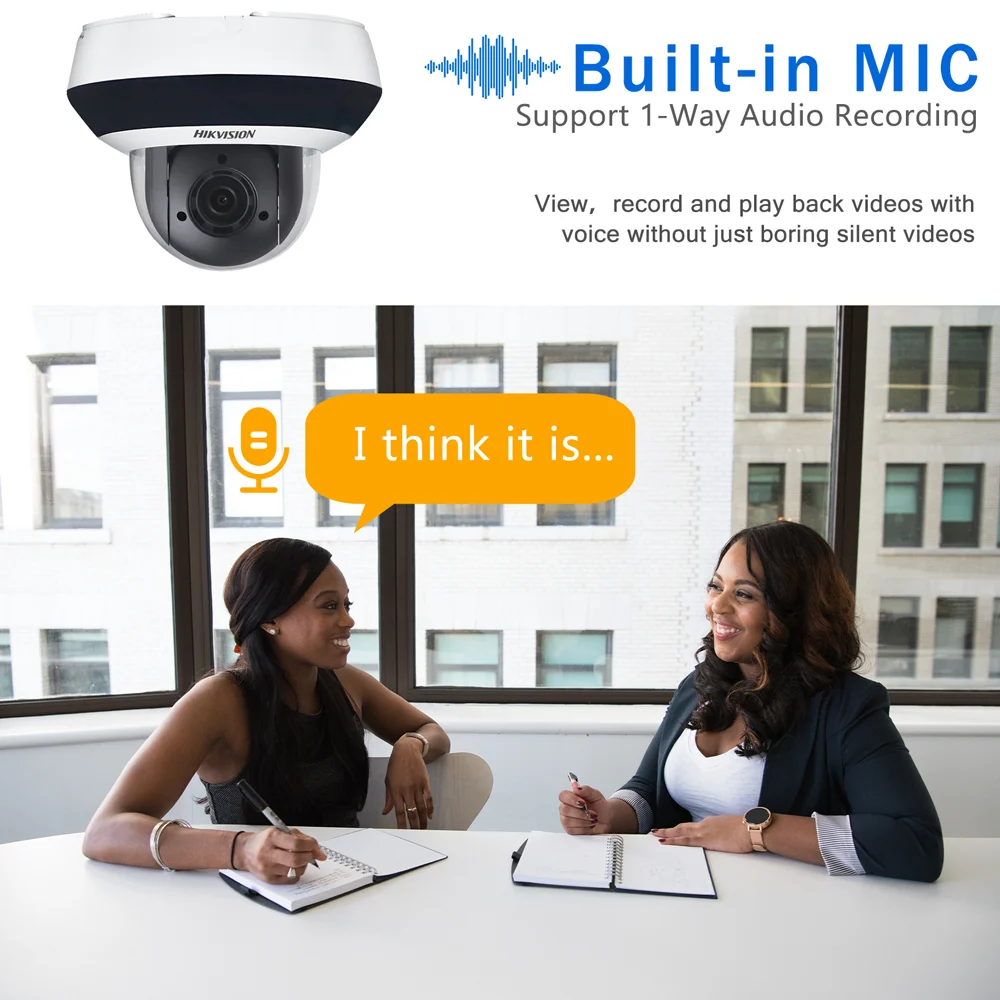

4mp Hikvision Original CCTV Kit Darkfigther Mini PTZ Audio Built-in Microphone

It supports plug and play installation.

NVR :  Origianl Hikvision NVR DS-7604NI-K1/4P

APP: Hik-Connection

Software: SADP/IVMS-4200

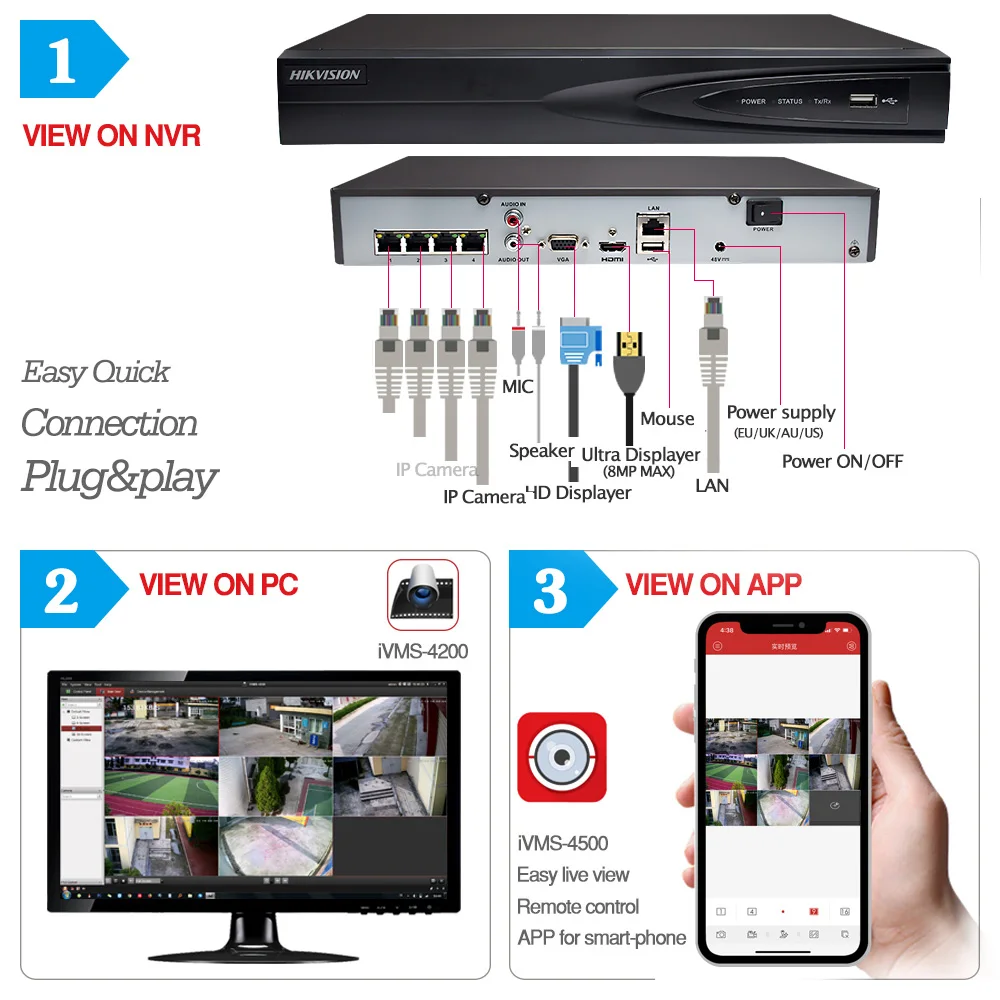

  DS-7604NI-K1/4PEmbedded Plug & Play 4K NVR> Third-party network cameras supported> Up to 8 Megapixels resolution recording> Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution> 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth> Support dual-os to ensure high reliablility of system running> Plug & Play with up to 4 independent PoE network interfaces> Support various VCA detection alarm and VCA search

> Support H.265/H.264/MPEG4 video formats

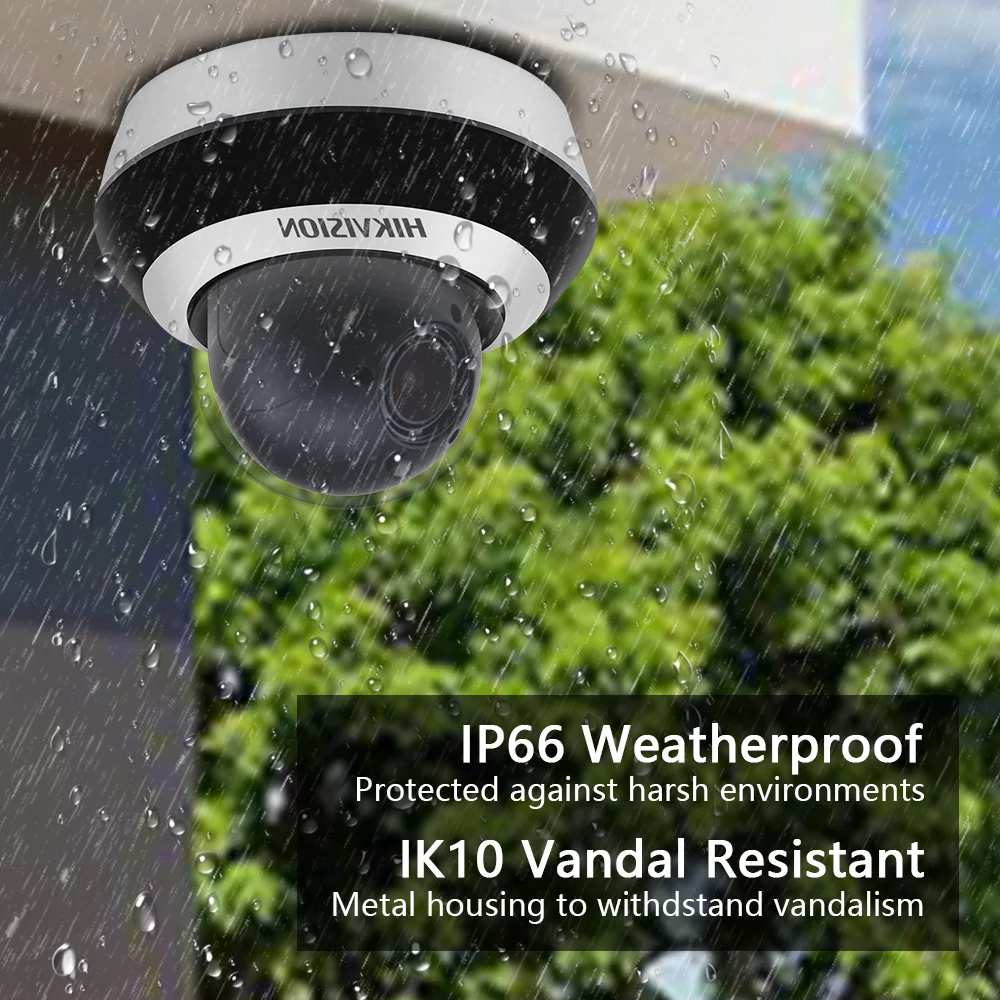

DS-2DE2A404IW-DE3(2.8-12MM)  4MP 4× IR Network PTZ IP Camera>  1/3" progressive scan CMOS>  Up to 2560 × 1440@25fps resolution>  Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON);  B/W: 0.001 Lux @(F1.6, AGC ON);  0 Lux with IR>  4× optical zoom, 16× digital zoom>  120 dB WDR, 3D DNR, HLC, EIS, Regional Exposure, Regional Focus>  12 VDC & PoE>  Up to 20 m IR distance>  IK10, IP66>  Support H.265+/H.265 video compression

Video/Audio InputTwo-way audio input:1-ch, RCA (2.0 Vp-p, 1kΩ)IP video input:4-chNetworkIncoming bandwidth:40MbpsOutgoing bandwidth:80MbpsVideo/Audio OutputHDMI Output:1-ch, resolution:4K (3840 × 2160)/30Hz,1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz.Recording Resolution:8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFAudio Output:1-ch, RCA (Linear, 1kΩ)VGA Output:1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60HzDecodingCapability:4-ch@1080PLive view / Playback:8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFHard DiskSATA:1 SATA interface for 1 HDDCapacity:Up to 6TB capacity for each HDDExternal InterfaceNetwork Interface:1 RJ-45 10 / 100 Mbps selfadaptiveEthernet interfaceUSB Interface:2, USB2.0POEInterface:4 independent 10 /100 Mbps PoEEthernet interfacesGeneralPower Supply:48 VDCConsumption(without hard disk and POE):≤ 10 WWorking Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)Working Humidity:10 % ~ 90 %Chassis:315 mm chassisDimensions:315 × 240 × 48 mm (12.4" × 9.4" × 1.9")Weight(without HDD):≤ 1 kg (2.2 lb)

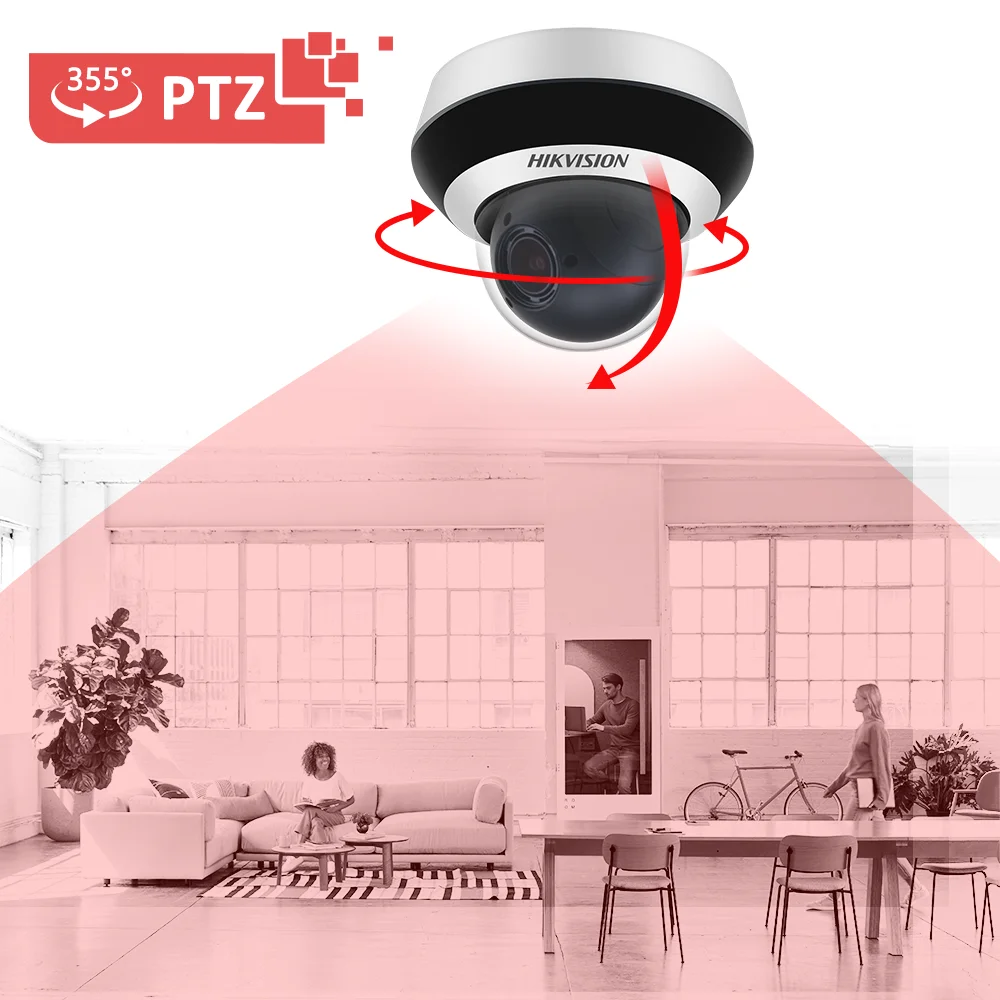

  1. Camera   DS-2DE2A404IW-DE3Image Sensor:1/3" progressive scan CMOSEffective Pixels:2560(H)×1440(V)Signal System:PAL/NTSCMinimum Illumination:Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 Lux with IRWhite Balance:Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium LampAGC:Auto/ManualHLC:SupportWDR:120dBShutter Time:50Hz: 1/1 s to 1/30,000 s60Hz: 1/1 s to 1/30,000 sDay& Night:ICRDigital Zoom:16×Privacy Mask:24 programmable privacy masksAuto Focus:Auto / Semi-automatic / Manual2. LensFocal Length:2.8 to 12mm, 4× optical zoomZoom Speed:Approx. 2s (optical lens, wide-tele)Field of View:Horizontal field of view: 100° to 33° (Wide-Tele)Vertical field of view: 53° to 18° (Wide-Tele)Diagonal field of view: 119° to 37.5° (Wide-Tele)Minimum Working Distance:10 to 1500mm (wide-tele)Aperture Range:F1.6 to F2.73. Pan & TiltPan Range:0° to 330°Pan Speed:Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/sTilt Range:Tilt: 0°~90°Tilt Speed:Configurable, from 0.1°/s to 100°/sPreset Speed: 100°/sProportional Zoom:Rotation speed can be adjusted automatically according to zoom multiplesNumber of Preset:300Power-off Memory:Support4. InfraredIR Distance:15mIR irradiation angle:Adjustable by zoom5. Input & OutputAudio Input:1-ch audio inputAudio Output:1-ch audio output6. NetworkEthernet:10Base -T, /100Base-TX, RJ45 ConnectorMax.Image Resolution:2560 × 1440Main Stream:50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 24fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)Sub Stream:50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)Third Stream:50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)Video Compression:Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEGROI encoding:Support 2 areas with adjustable levelsAudio Compression:G.711ulaw/G.711alaw/G.726/MP2L2/G.722Audio Mode:OFF/Audio input/Audio outputProtocols:IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, BonjourSimultaneous Live View:Up to 20 channelsThree-Stream:SupportStorage:Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GBUser/Host:Up to 32 users, 3 levels: Administrator, Operator and UserSecurity Measures:User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address FilteringHik-Connect:Support7. GeneralPower Supply:12 VDC & PoEPower Consumption:Max.: 12 W (Max. 3.9 W for IR)Working Temperature/Humidity:-20°C to 60°C (-4°F to 140°F)Protection Level:IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient ProtectionMaterial:Aluminum alloy, PC, PC+ABSDimensions:Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")Weight (approx.):Approx. 0.53 kg (1.17 lb)

1. The original slope extremely Hikvision DS-7604NI-K1/4P  * 1;

2. Very all the accessories (LAN cable/hard drive cable/power adapter/screw/user manual/mouse);

3. Hikvision IPC DS-2DE2A404IW-DE3(2.8-12MM) * 2

4. (we also provide hard disk 2 t / 4 t operation, please choose the right if you need).
