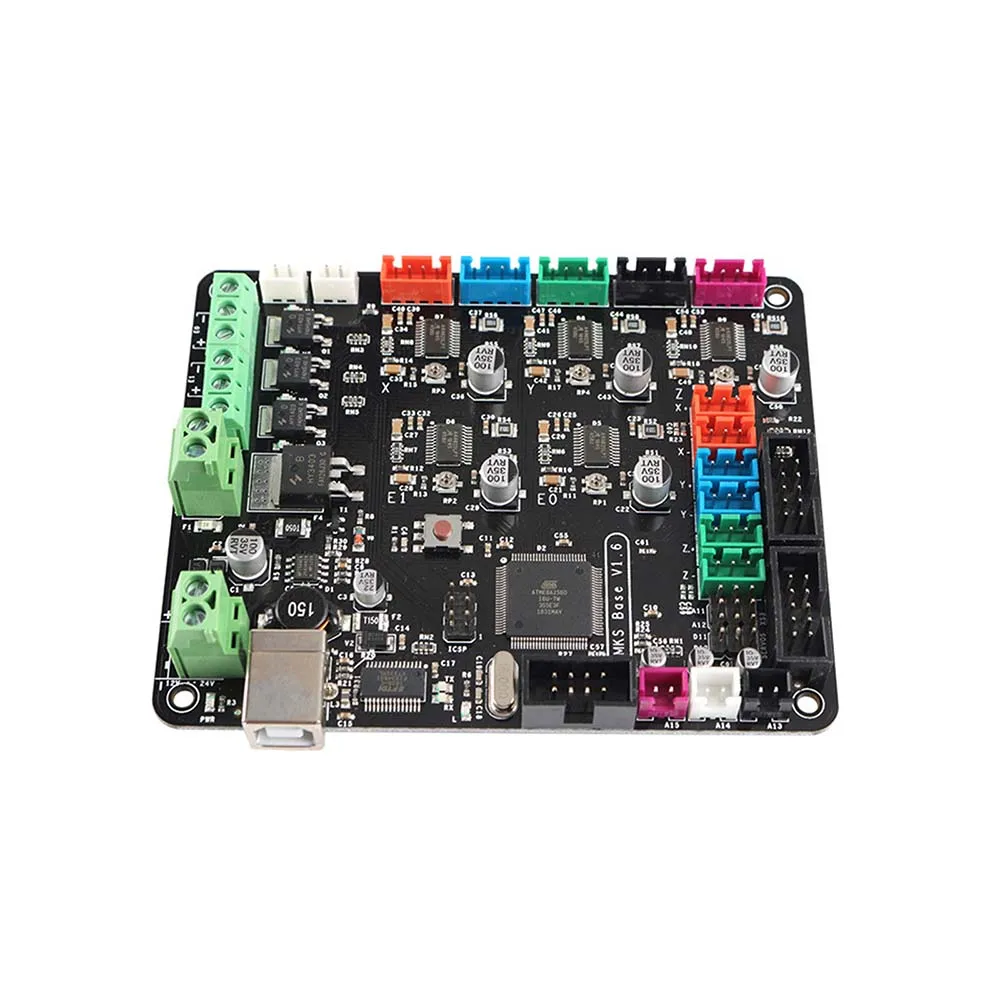

Description:

l The circuit board uses a high-quality 2-layer board, and has been specially optimized for heat dissipation; ramps are 2-layer boards.

l Adopt dedicated power chip, support 12V-24V power input, solve the heating problem of Ramps voltage conversion chip.

l The firmware can use the open source firmware Marlin, the configuration is exactly the same as that of ramps1 4, which can directly replace Ramps1.4o

l Using 4982 as the motor drive, the performance is equivalent to 4988, but using SOP package, the heat dissipation effect is better.

l Using high-quality MOSFET tubes, the heat dissipation effect is better.

l It can accept 24V input. Under the same system power, the hot-bed current can be reduced to 1/4, which effectively solves the heating problem of the hot-bed MOS tube.

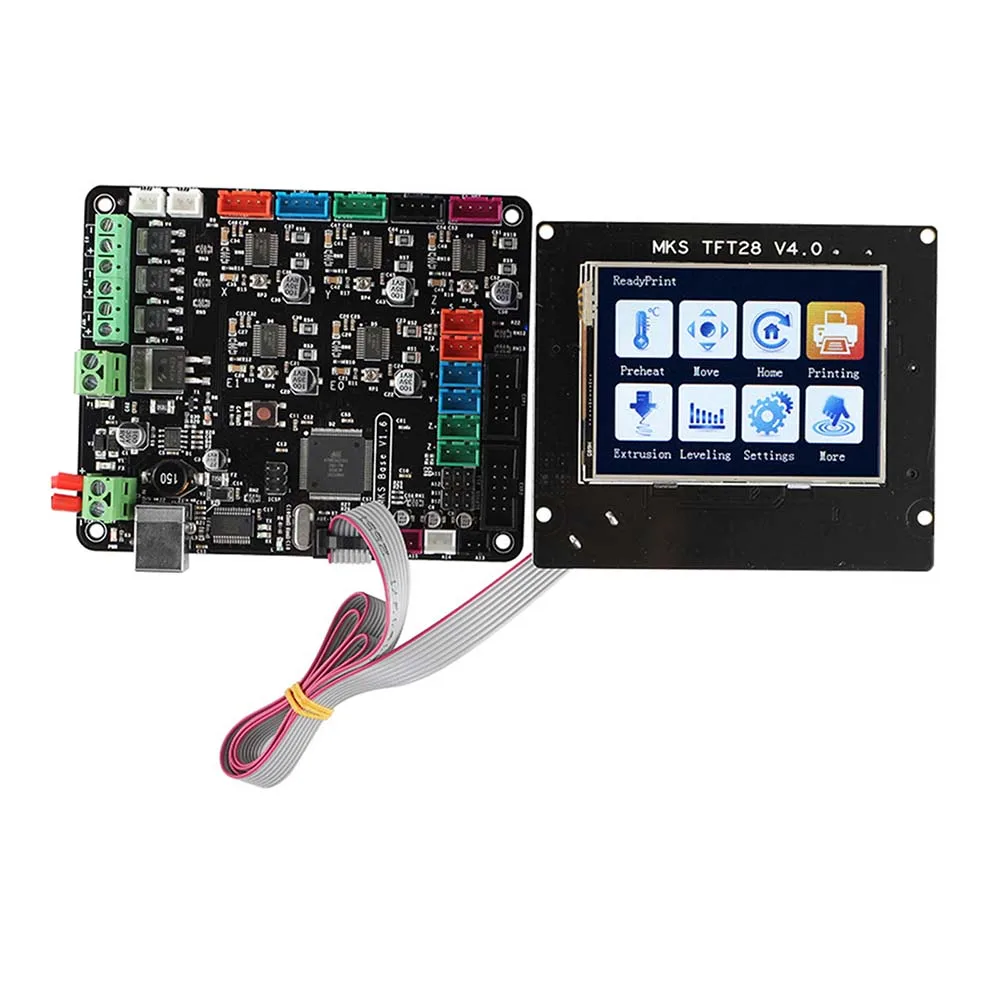

l It can be directly connected to Ramps1.4, 2004LCD control board and 12864LCD control board.

l MKS-BASE is a product specially optimized for the problems of open source motherboards such as Ramps1.4 and Megatronics V2.0

l Combining all the functions on one board solves the cumbersome and easy-to-fail problem of Ramps1.4 combination interface.

l It can be directly connected to 2004LCD or 12864LCD (without the L-shaped adapter board). Because the 2004LCD and 12864LCD open source design only standardizes the PIN ports of EXP1 and EXP2, there is no specific specification for the horn insertion direction, so some 2004LCD and 12864LCD that are not produced by Makerbase may be The direction of the data cable bayonet is inconsistent, so you need to plug it in the other way to use it.

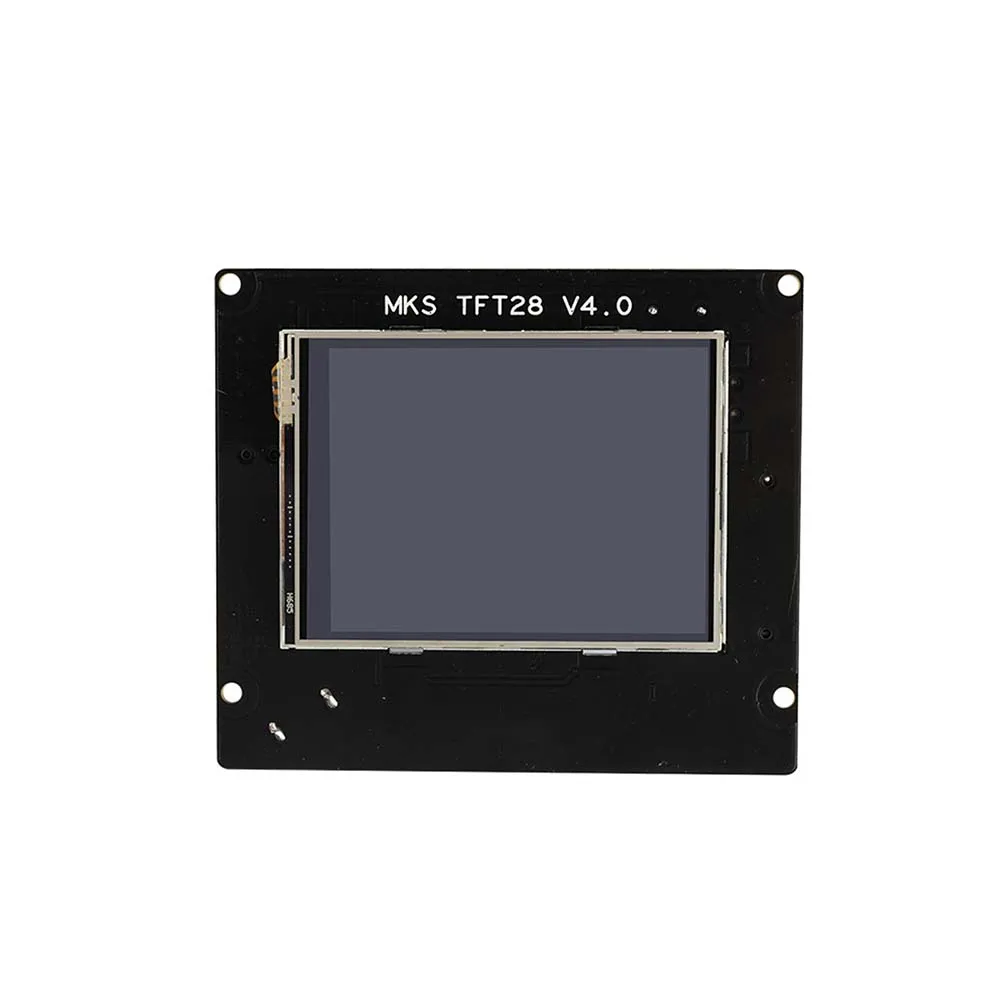

MKS TFT28 Display:

l Interface customization: three sets of themes, multiple styles

l Strong compatibility: compatible with Marlin/Smoothieware/Repetier firmware, open source motherboard plug and play

l Accidental handling: continuous power failure, continuous interruption, material interruption detection,

l Shutdown processing: save after power off, shut down after playing

l Leveling processing: automatic leveling, manual leveling, leveling wizard

l Network function: Wifi module, APP, cloud printing

l Function expansion: up to 13 custom commands

Specification:

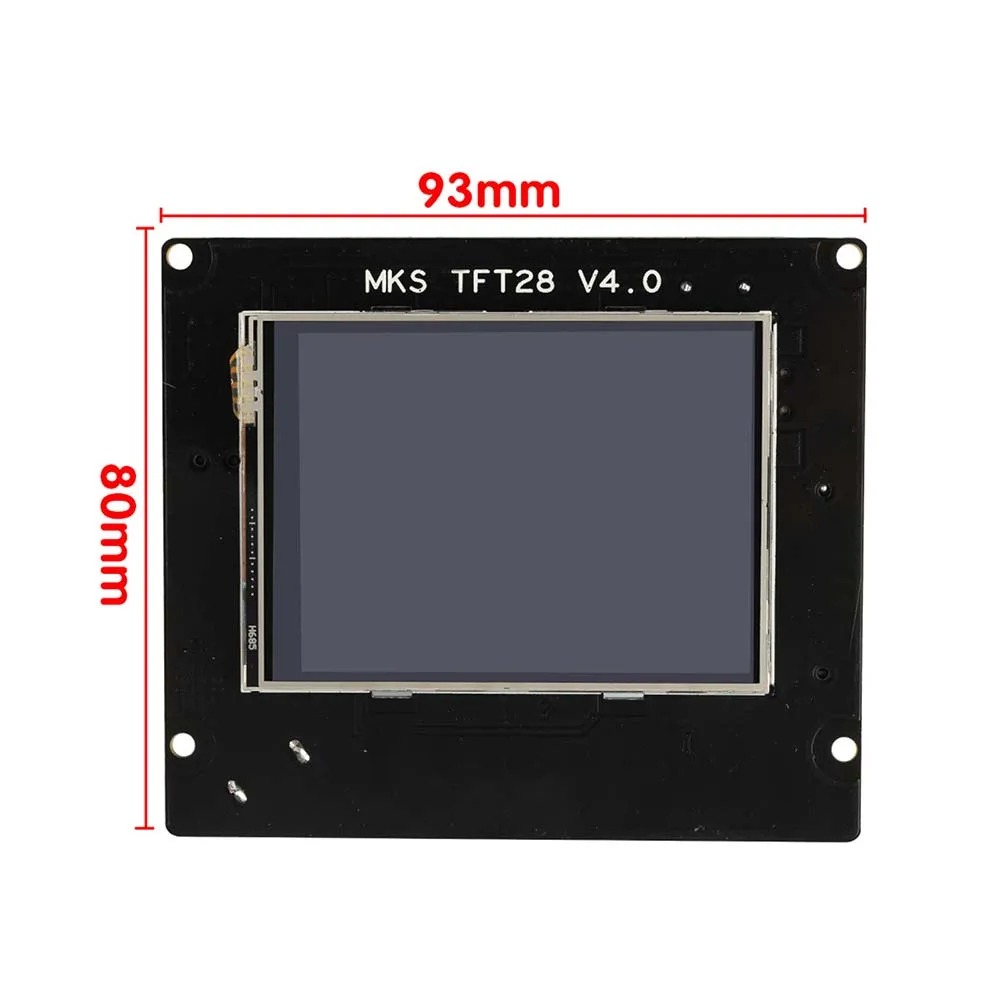

l Size: 93mm x 80mm

l Hole size: 88mmX 65mm

l Color touch screen: 2.8 inch touch screen

l Microprocessor: 32-bit STM32 processor

l Support storage system SD card, U disk

l Update method: SD file update

l Supported file format: Gcode

l Extendable modules (not included in delivery): WIFI module, shutdown module after playing, material interruption detection switch, continuous playing after power failure, external card slot

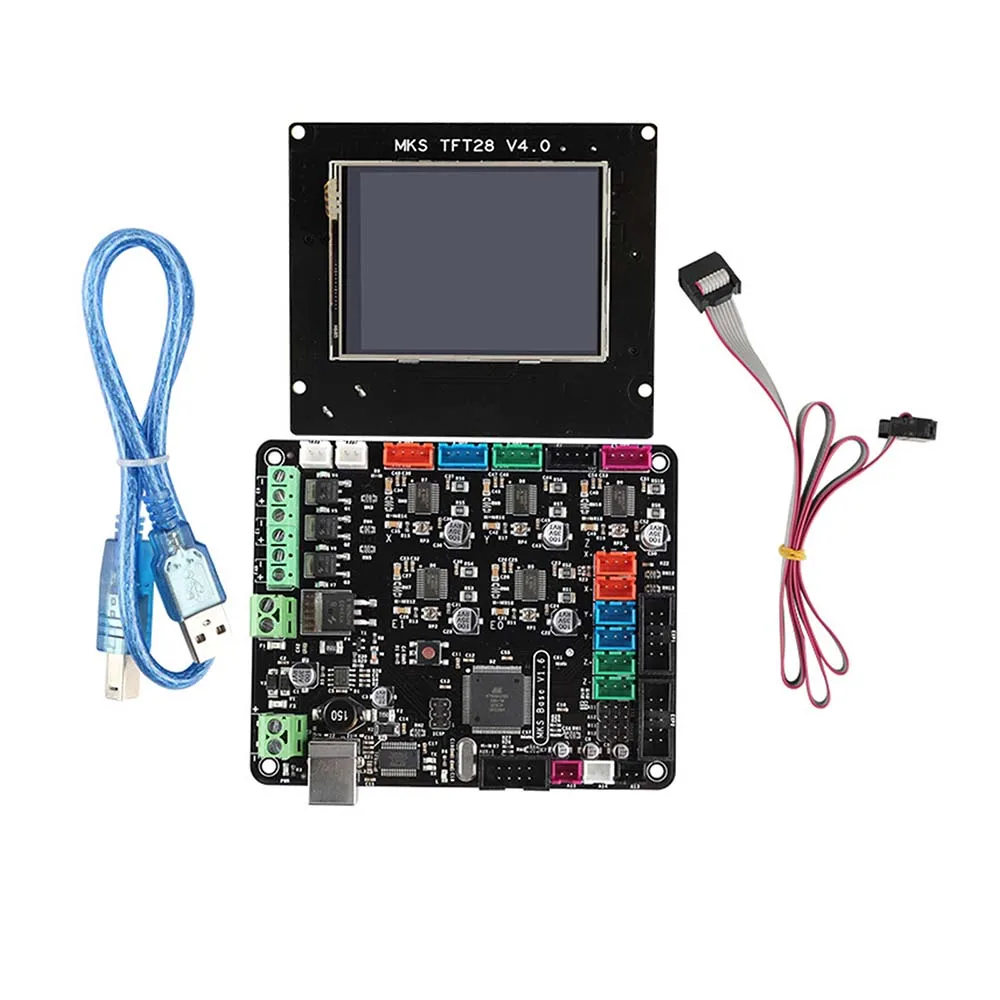

Package:

l 1x MKS BASE V1.6 Board

l 1x USB Cable

l 1x MKS TFT28 Color Touch Screen

l 1x Cable
