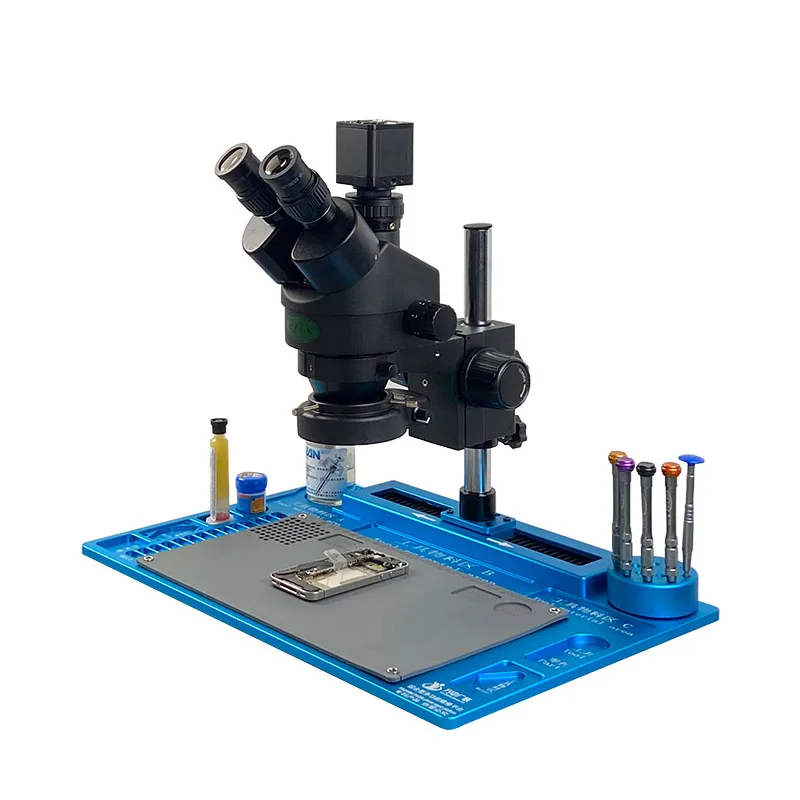

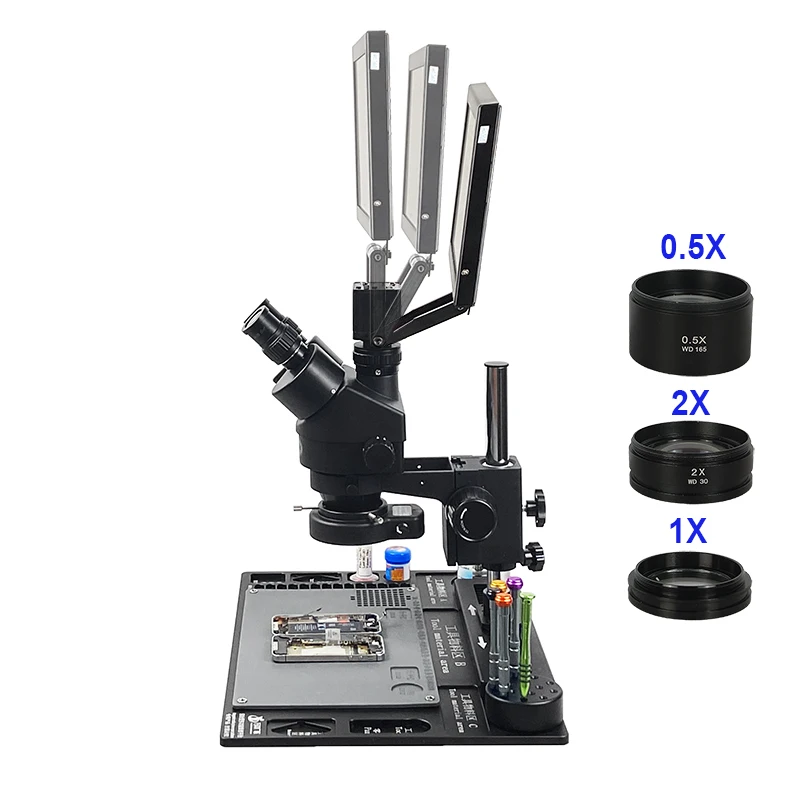

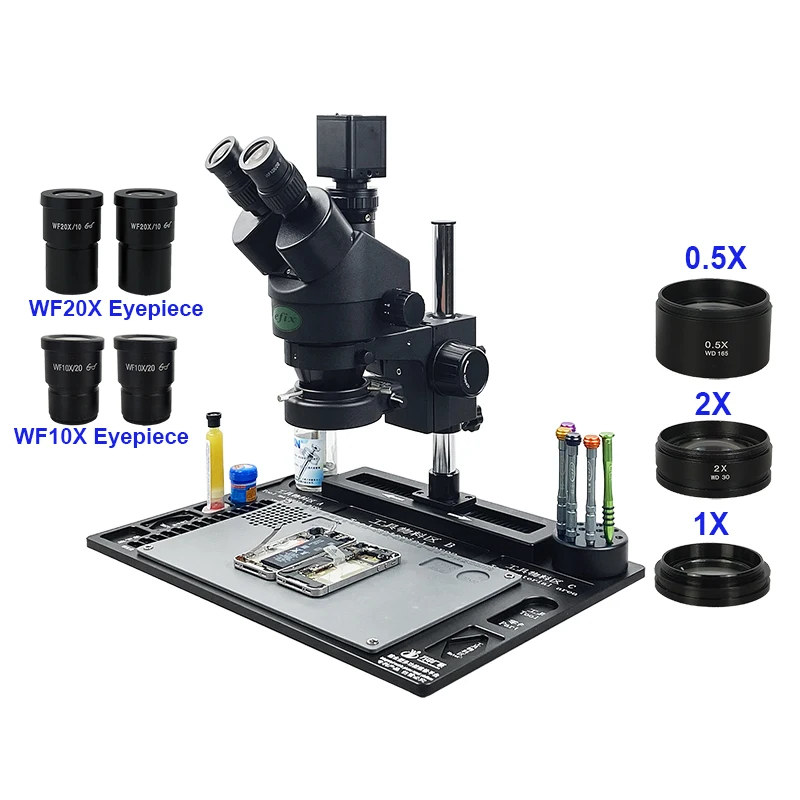

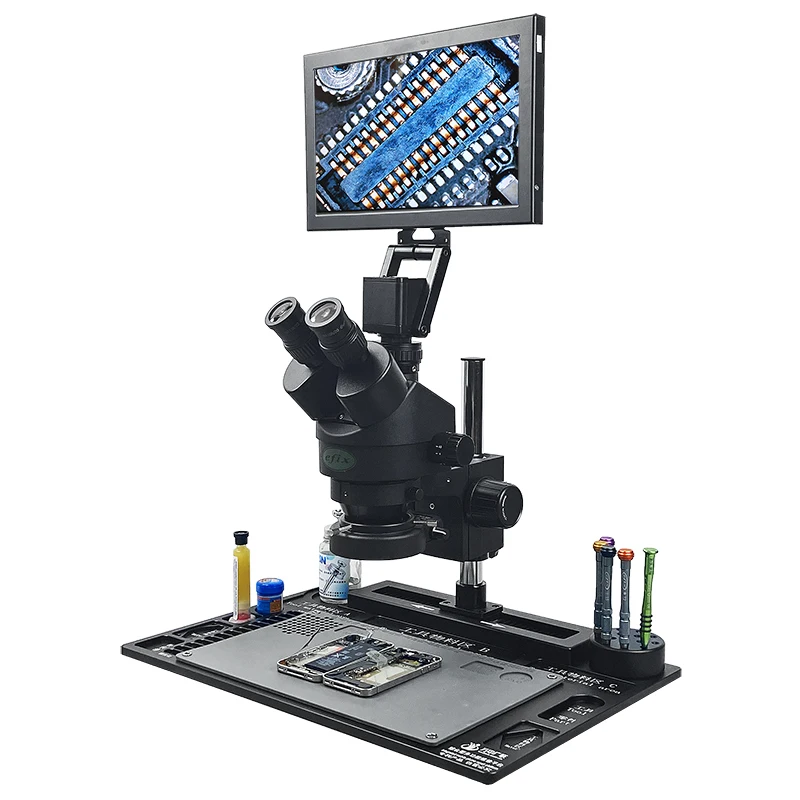

38MP HDMI Camera 3.5-180X 11.6'' LCD Trinocular Stereo Soldering Microscopes Stand HD USB TF 144 LED for Repair Mobile Phone

Features:

Plug and see, no need special knowledge, and you can check the small parts by LCD or eyepiece;
3.5-90X(with auxiliar LENS or eyepiece LENS) Continuous Zoom Microscope;
Special pillar clamps, LED and dimmer design, can make your operation space bigger ;
Simple design, no need connect many wire like others, just connect power and Video cable, then you can use the microscope.

Specifications:

Captures Microscope Images and Streams Live Video on big size TV

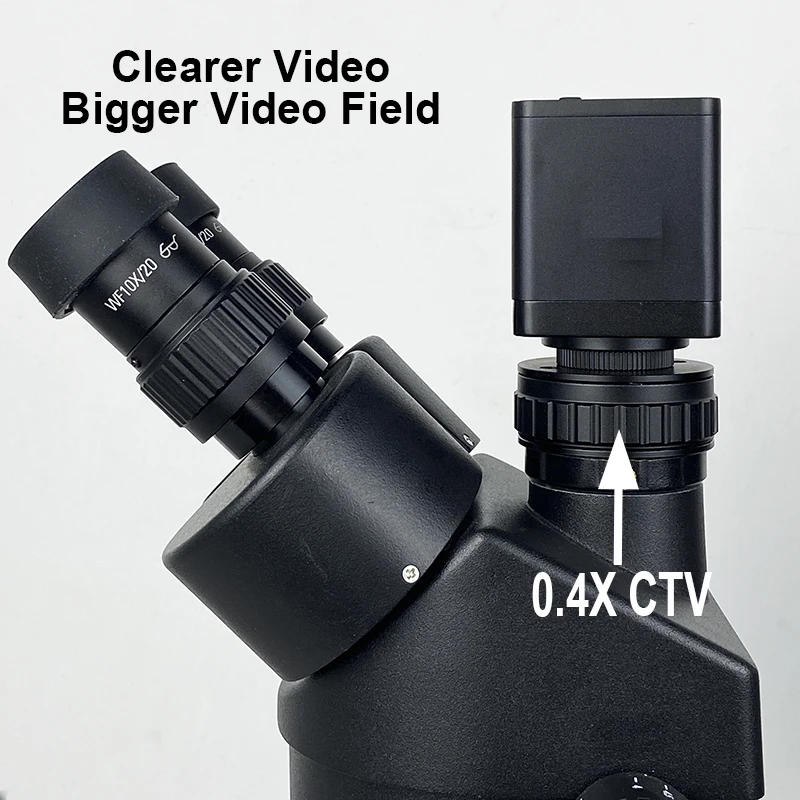

Built-in Reduction Lens Provides the Same Field of View on Screen as Through Eyepiece
Top quality optical glass elements
Zoom range 3.5~180x (with auxiliar LENS or eyepiece LENS)
Big working distance allows enough operation space

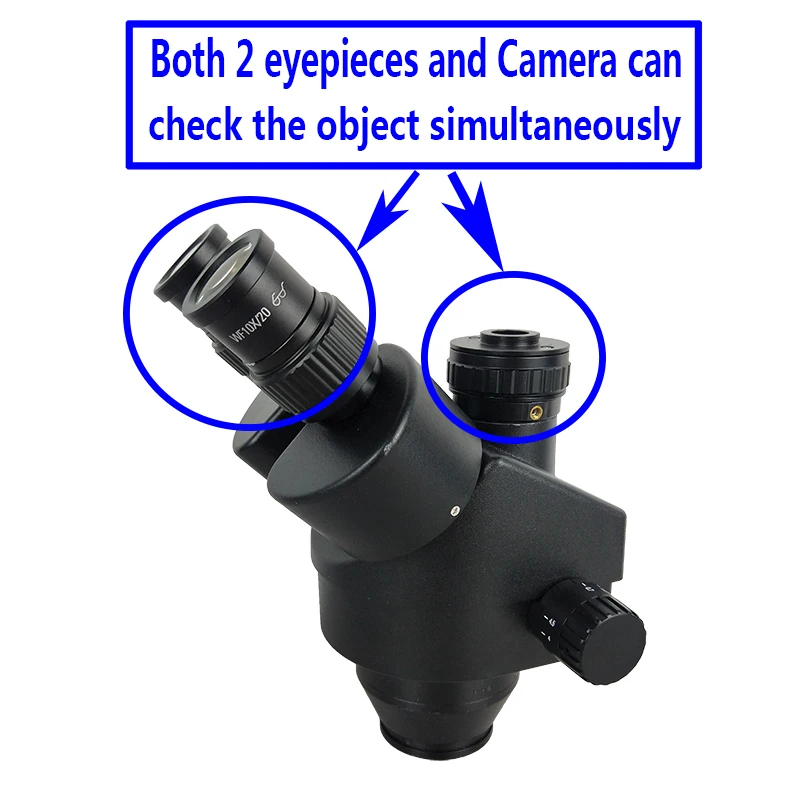

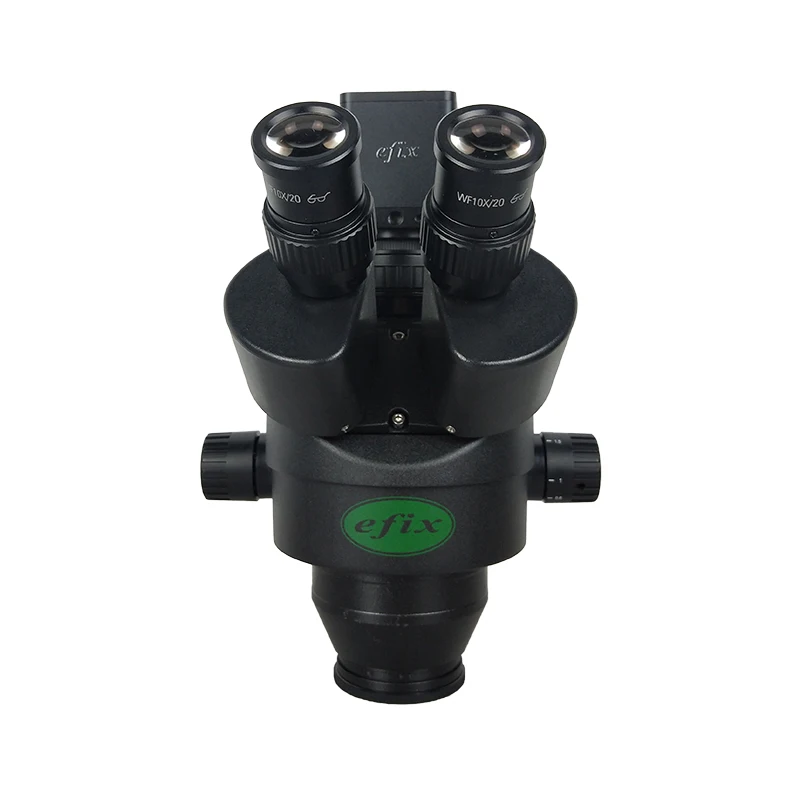

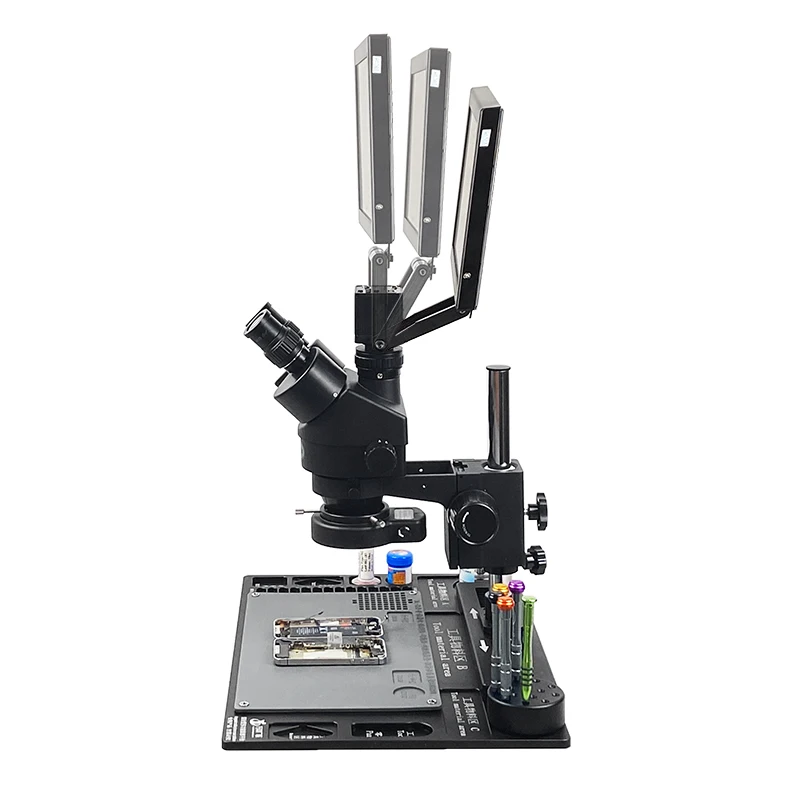

45°inclined 360°rotatable trinocular head
Sharp erect stereo images over a wide field view
Both ocular tubes have diopter adjustment
Adjustable inter-pupillary distance to fit anyone's eyes
Sturdy metal framewor
Head: 45°Inclined 360°rotatable trinocular
Eyepieces: wide field WF10X/20MM
Zoom ratio: 1:6.4
Objective zoom: 0.7x~4.5x
Total magnification: 3.5~45x (with auxiliar lens)
Both ocular tubes have diopter adjustment ±5dp
Interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm）
Focus adjustment stroke: 2-3/8" (50mm)

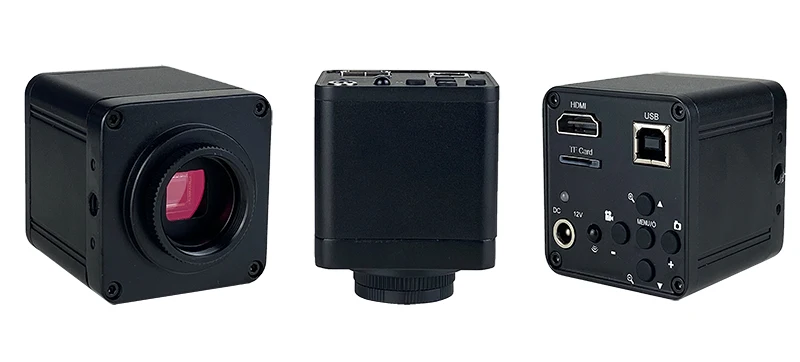

Camera Specification:

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 7120*5344 for TF card.
Video format: AVI
USB Video resolution: 1920 *1080 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,4 horizontal line , 4 vertical line,any positions

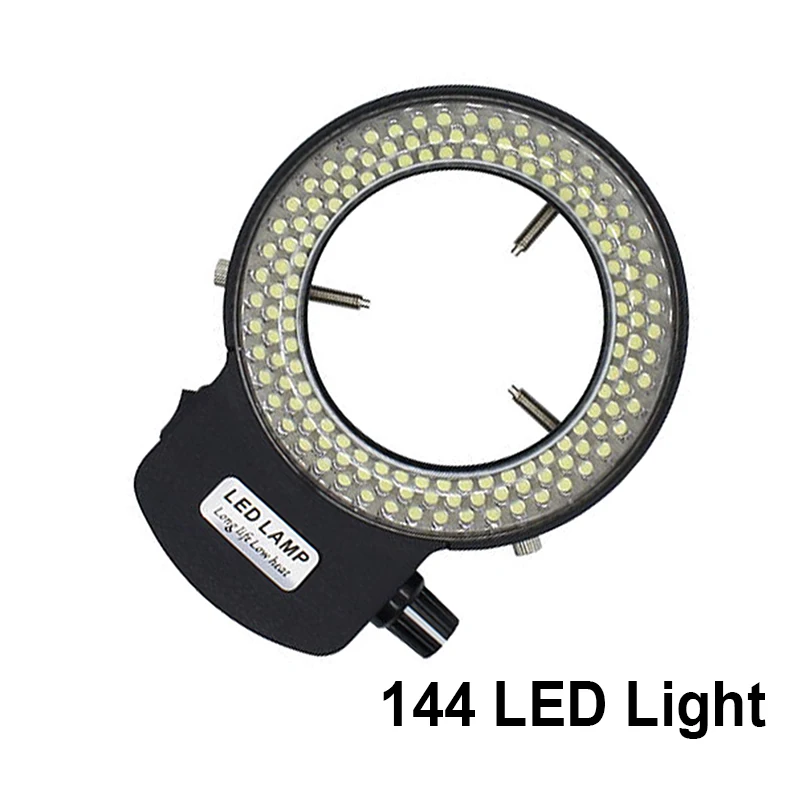

144 LED Light Feature:

Input voltage: AC90V-240V
Output voltage: DC12V
Maximum output power: 8.5W
Brightness adjustment range: 0-100% adjustable
Working distance:40-160MM
Maximum illuminance:30000-35000LUX
Color temperature:6500K-7000K
Effective lighting distance:75MM
Product shell color: white
Product life:＞30000HRS
Product shape: one
Product inside diameter: 64mm
LED type: F3
LED quantity: 144PCS

Note:

1. The shipping package not include screwdriver, tweezer, soldering material, logic board, big LCD and others which showed on picture and video. And the video show us the video effect, and it's only for reference. 2. If connceting camera to the monitor via HDMI cable, the image is better than the method, connecting camera to the computer via USB cable.

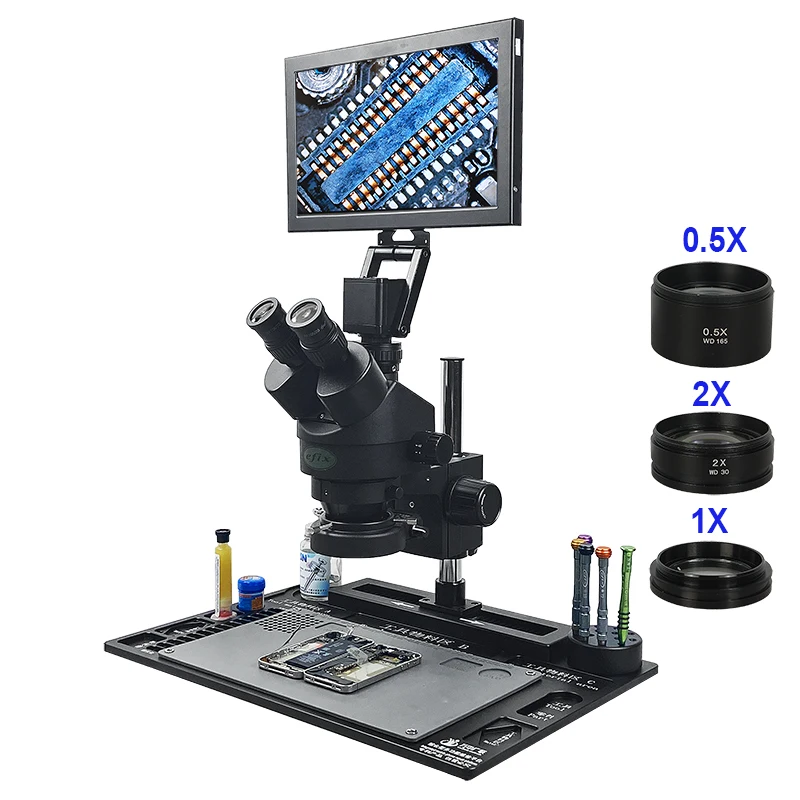

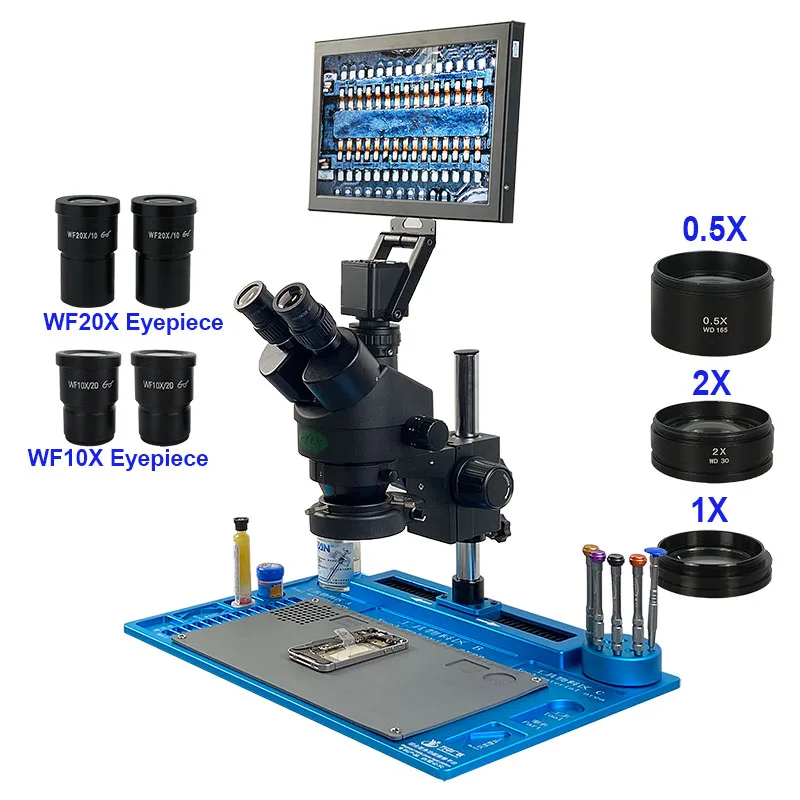

Package Include :（3.5-90X LCD Black ）

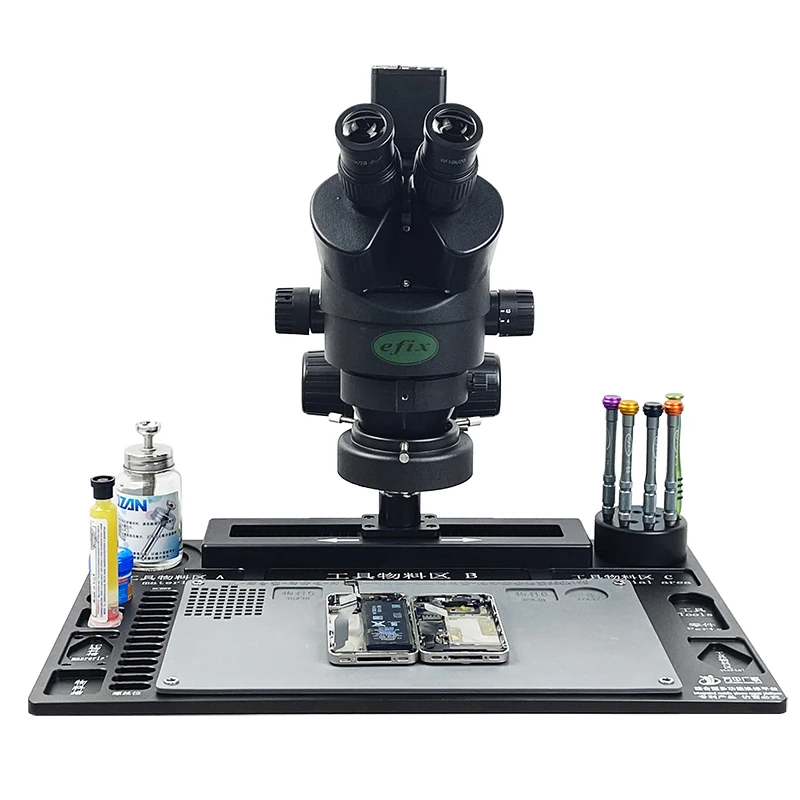

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;

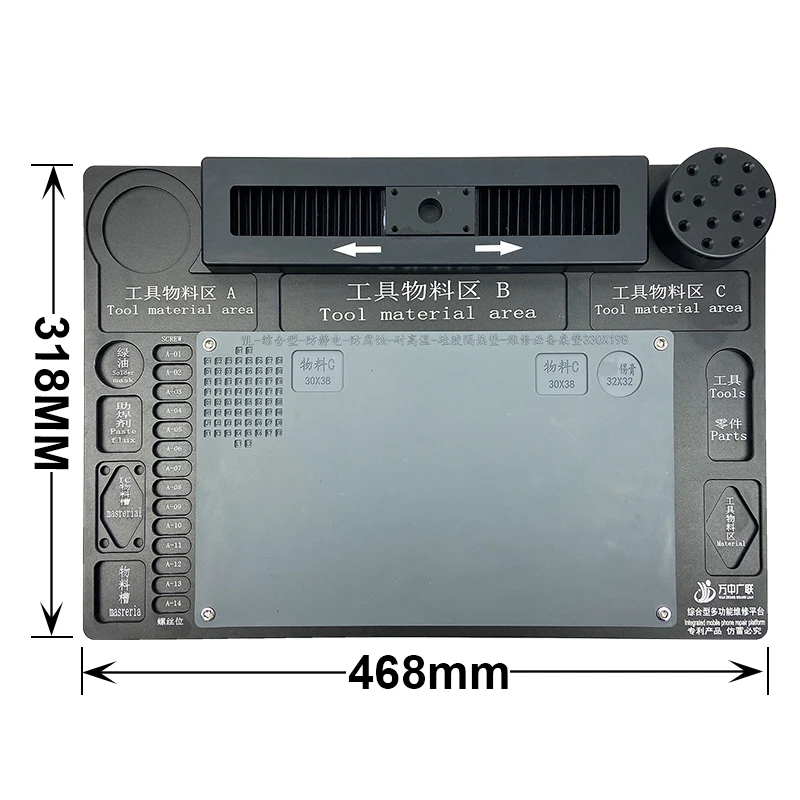

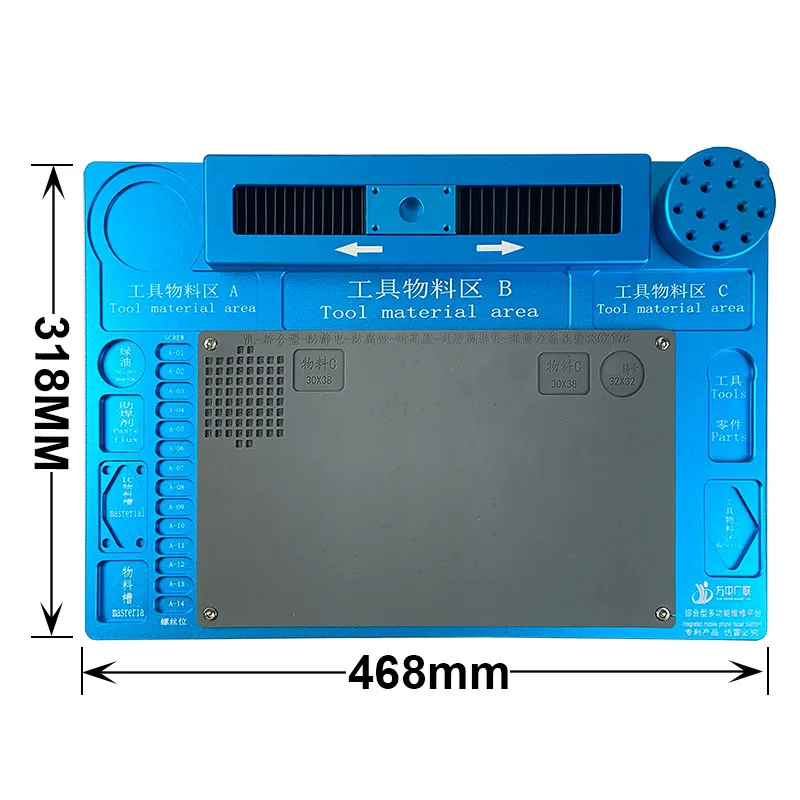

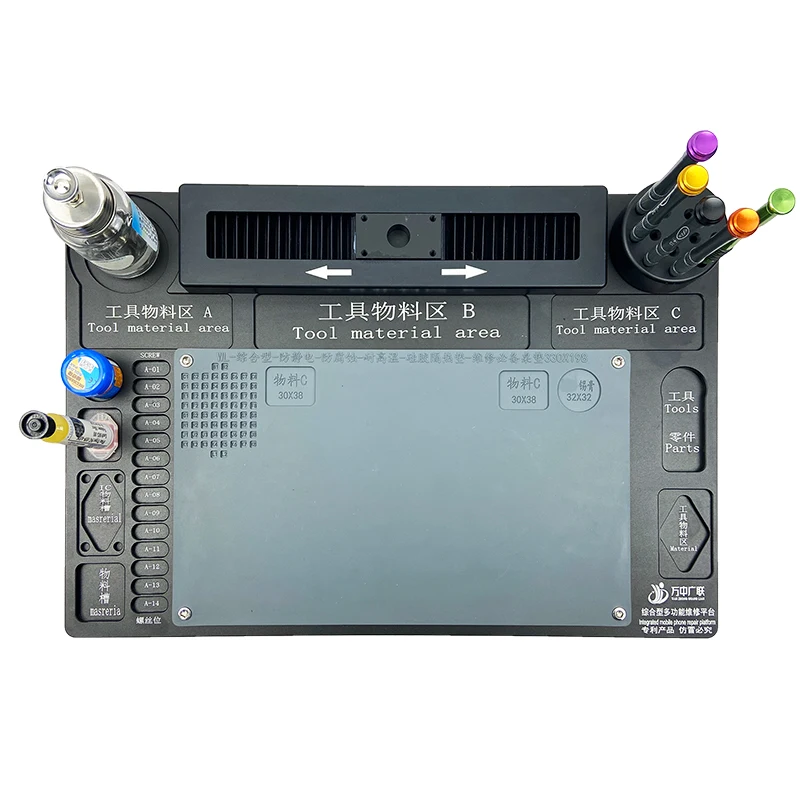

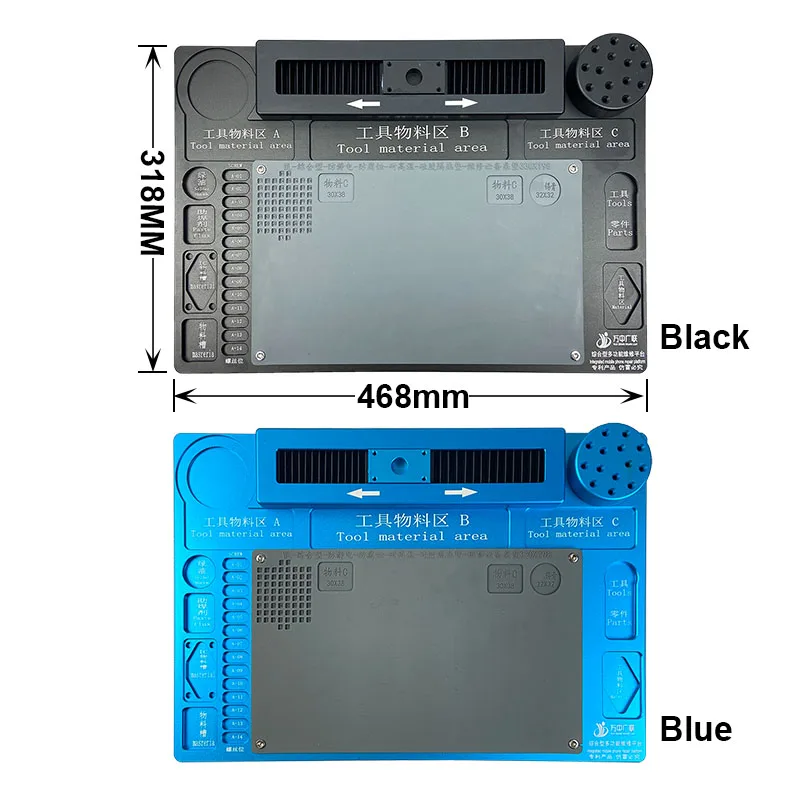

1x Big Black Workbench;
1x Position Ring;
1x Blue Silicone Pad;
1x Dust Cover;
1x Microscope Power;
1x Pair of Super Widefield 10X Eyepieces;
1x 144 LED Light;

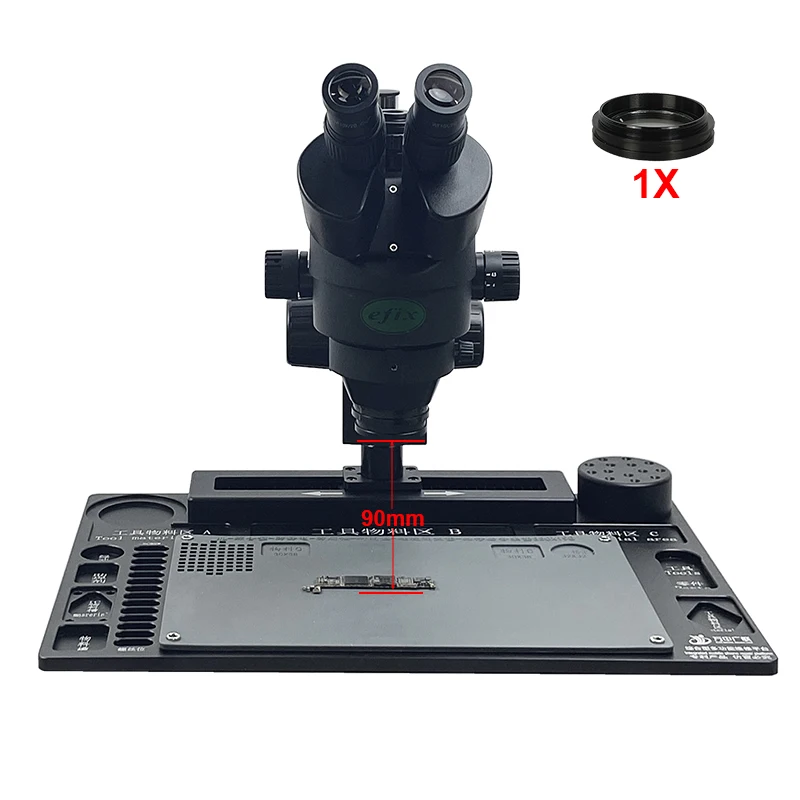

1x 1.0x Auxiliar Lens;

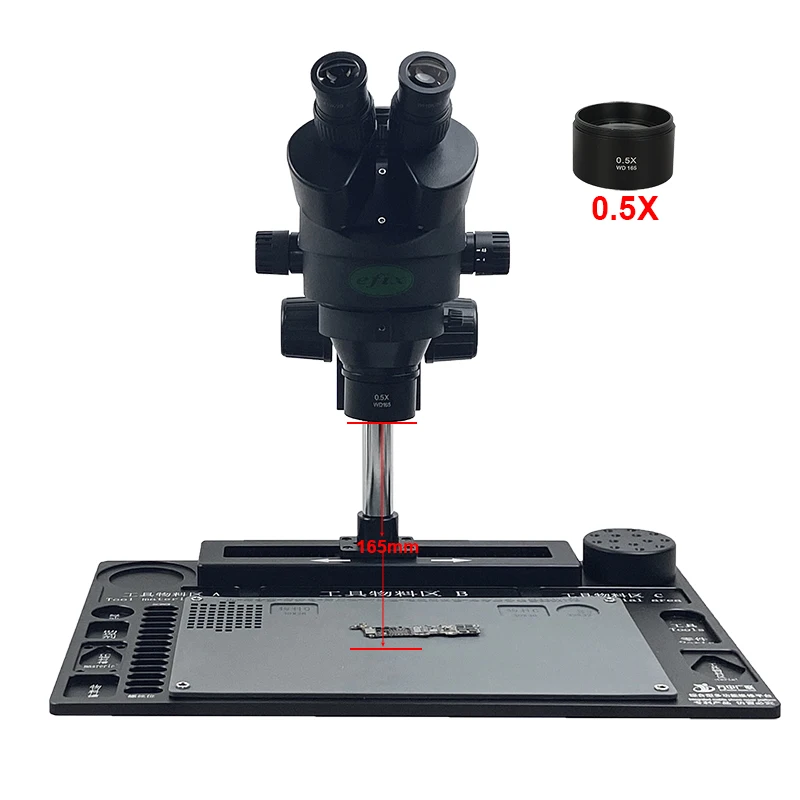

1x 0.5x Auxiliar Lens;

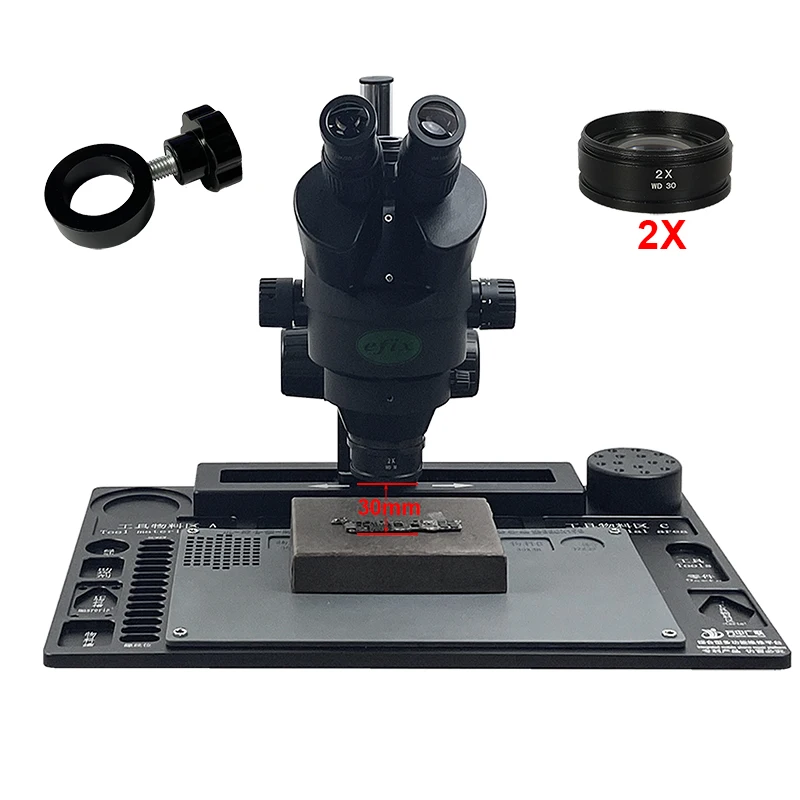

1x 2.0x Auxiliar Lens;

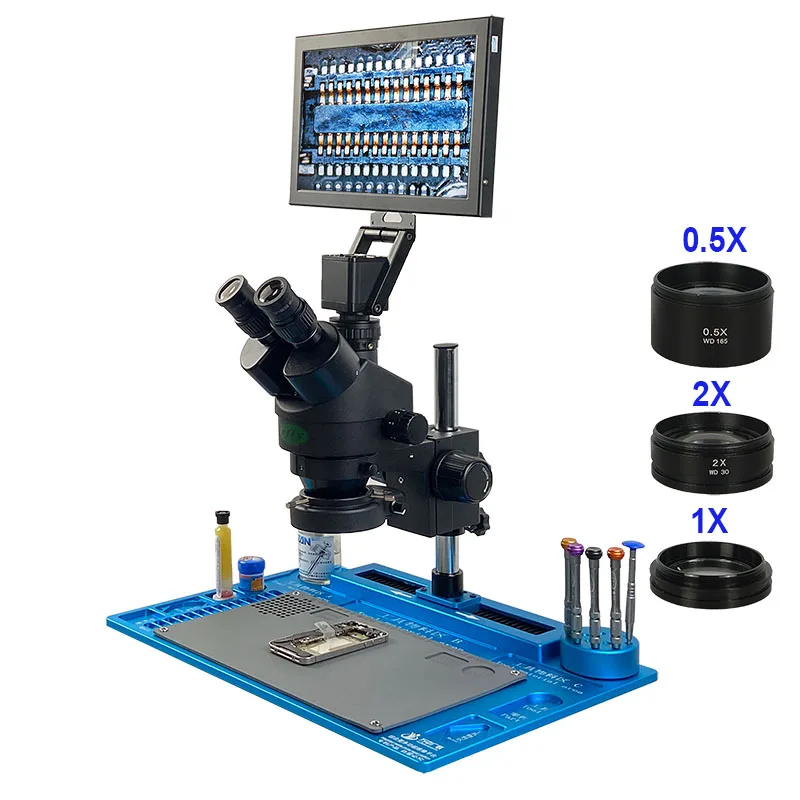

1x 11.6 Inch LCD.

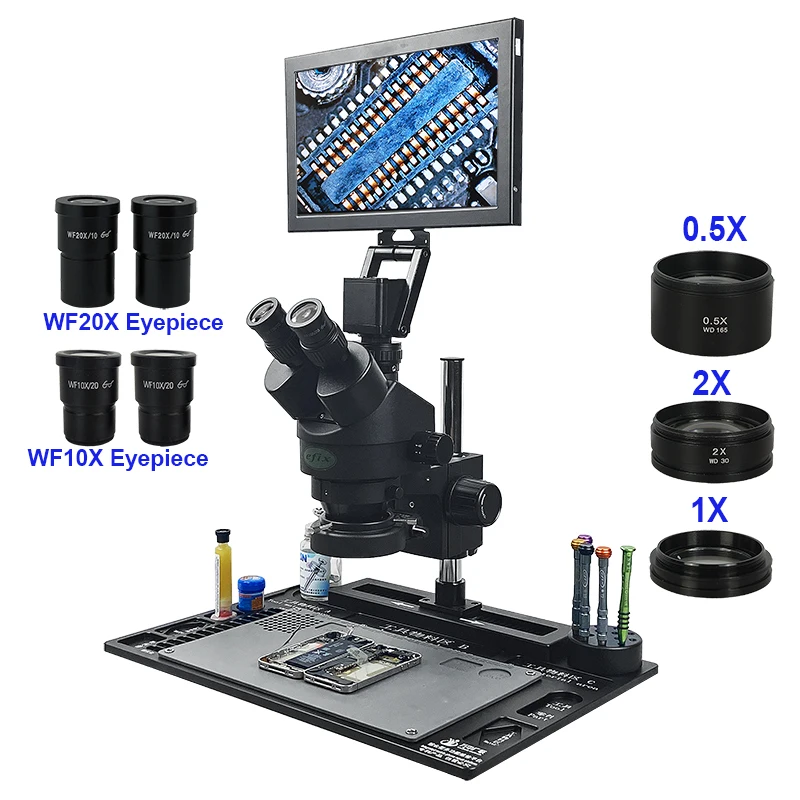

Package Include :（3.5-180X LCD Black）

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;
1x Big Black Workbench;
1x Position Ring;
1x Blue Silicone Pad;
1x Dust Cover;
1x Microscope Power;
1x Pair of Super Widefield 10X Eyepieces;

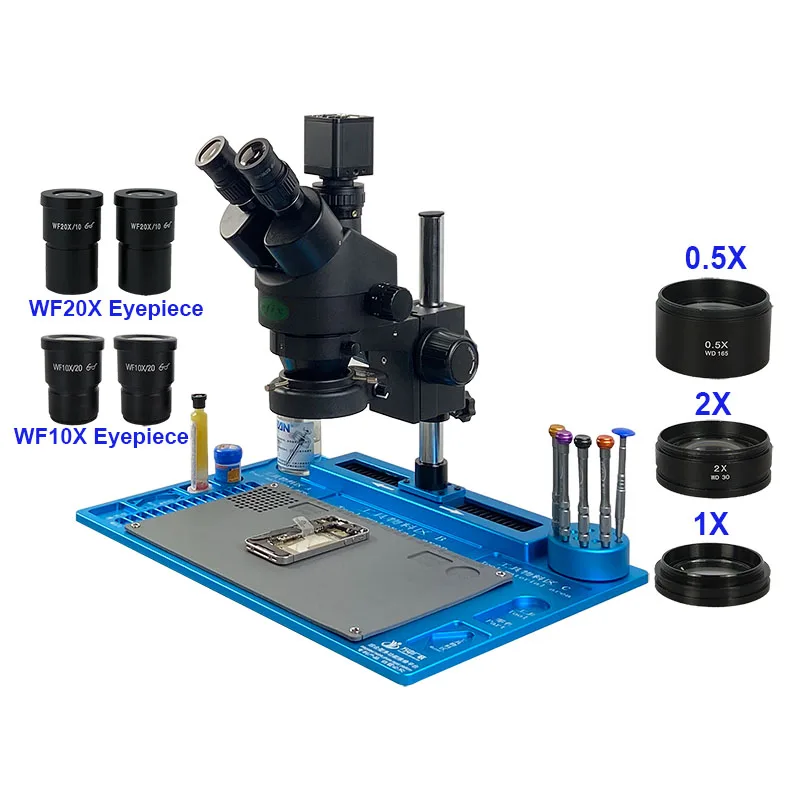

1x Pair of Super Widefield 20X Eyepieces;
1x 144 LED Light;
1x 1.0x Auxiliar Lens;
1x 0.5x Auxiliar Lens;
1x 2.0x Auxiliar Lens;
1x 11.6 Inch LCD.

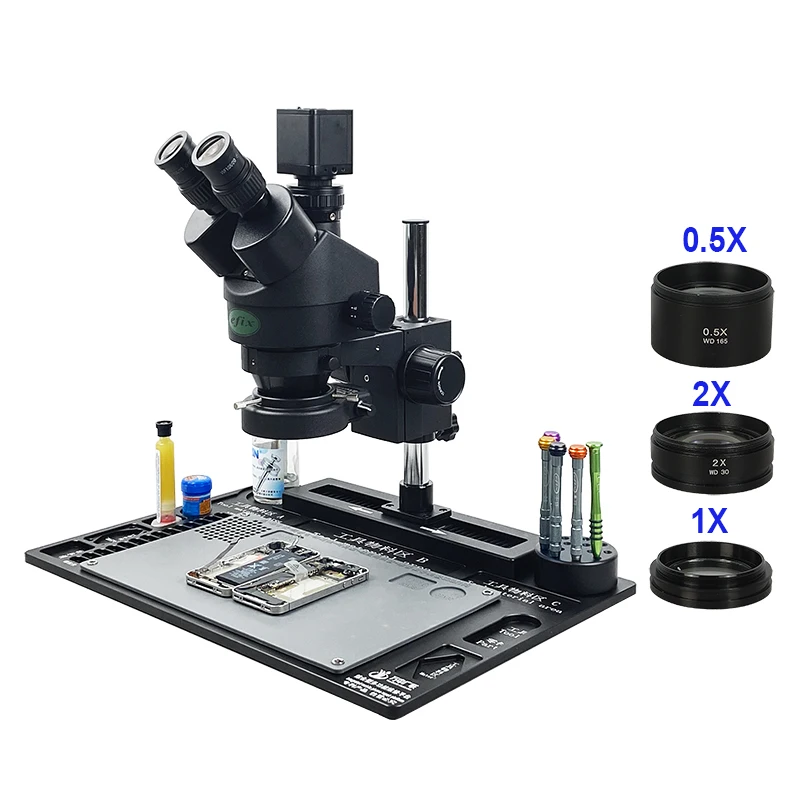

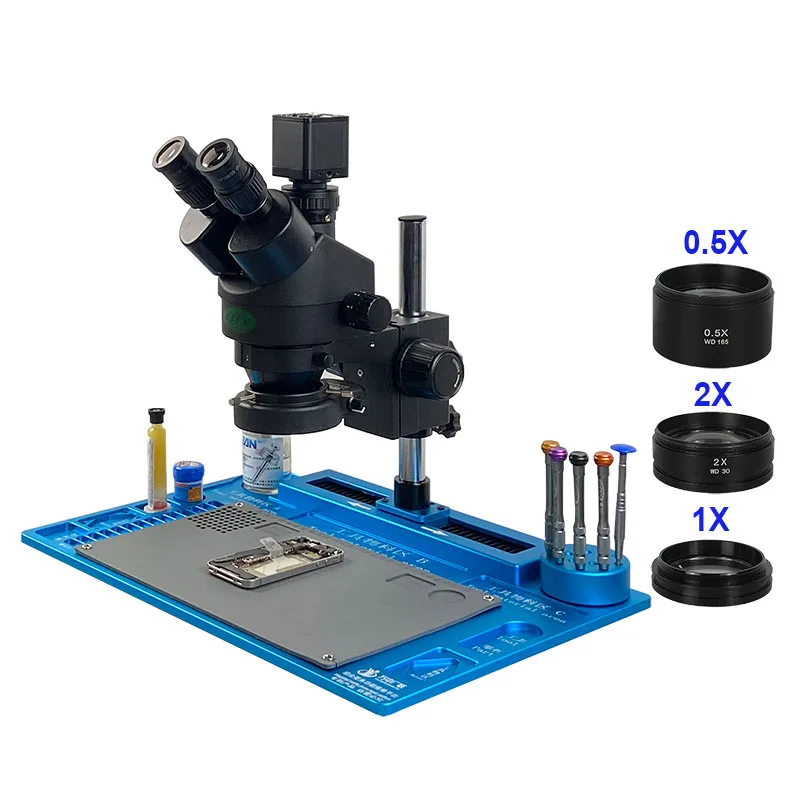

Package Include : （3.5-90X Black）

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;
1x Big Black Workbench;
1x Position Ring;
1x Blue Silicone Pad;
1x Dust Cover;
1x Microscope Power;
1 pair of WF10X eyepiece with rubber eye guards;
1x 144 LED Light;
1x 1.0x Auxiliar Lens;
1x 0.5x Auxiliar Lens;
1x 2.0x Auxiliar Lens.

Package Include：（3.5-180X Black）

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;
1x Big Black Workbench;
1x Position Ring;
1x Blue Silicone Pad;
1x Dust Cover;
1x Microscope Power;
1x Pair of Super Widefield 10X Eyepieces;
1x Pair of Super Widefield 20X Eyepieces;
1x 144 LED Light;
1x 1.0x Auxiliar Lens;
1x 0.5x Auxiliar Lens;
1x 2.0x Auxiliar Lens.

Package Include：（3.5-90X LCD Blue）

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;
1x Big Blue Workbench;
1x Position Ring;
1x Dust Cover;
1x Microscope Power;
1x Pair of Super Widefield 10X Eyepieces;
1x 144 LED Light;
1x 1.0x Auxiliar Lens;
1x 0.5x Auxiliar Lens;
1x 2.0x Auxiliar Lens;
1x 11.6 Inch LCD.
1x 11.6 Inch LCD.

Package Include :（3.5-180X LCD Blue）

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;
1x Big Blue Workbench;
1x Position Ring;
1x Dust Cover;
1x Microscope Power;
1x Pair of Super Widefield 10X Eyepieces;
1x Pair of Super Widefield 20X Eyepieces;
1x 144 LED Light;
1x 1.0x Auxiliar Lens;
1x 0.5x Auxiliar Lens;
1x 2.0x Auxiliar Lens;
1x 11.6 Inch LCD.

Package Include：（3.5-90X Blue）

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;
1x Big Blue Workbench;
1x Position Ring;
1x Dust Cover;
1x Microscope Power;
1 pair of WF10X eyepiece with rubber eye guards;
1x 144 LED Light;
1x 1.0x Auxiliar Lens;
1x 0.5x Auxiliar Lens;
1x 2.0x Auxiliar Lens.

Package Include :（3.5-180X Blue）

1x Black Trinocular stereo microscope with Microscope Stand;
1x 38MP Blcak CMOS Microscope Camera with HDMI,USB Cable;
1x Big Blue Workbench;
1x Position Ring;
1x Dust Cover;
1x Microscope Power;
1x Pair of Super Widefield 10X Eyepieces;
1x Pair of Super Widefield 20X Eyepieces;
1x 144 LED Light;
1x 1.0x Auxiliar Lens;
1x 0.5x Auxiliar Lens;
1x 2.0x Auxiliar Lens.
