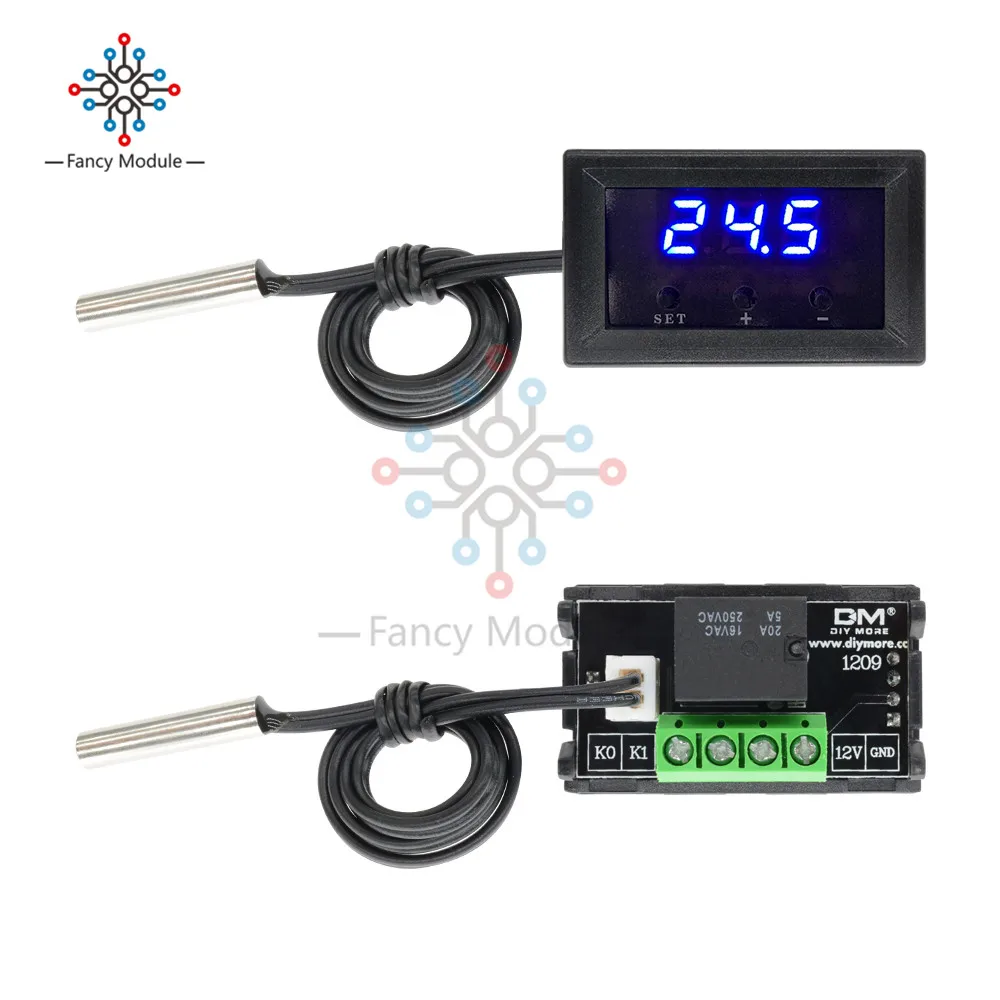

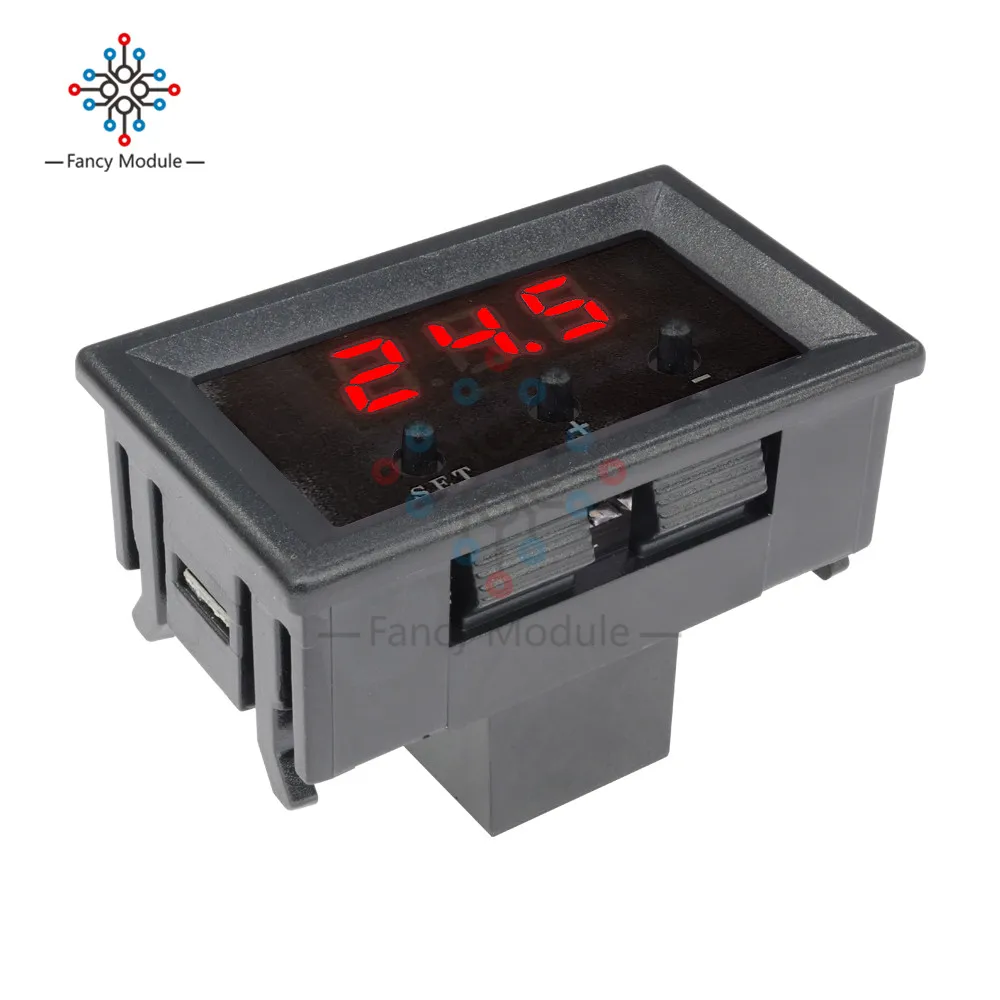

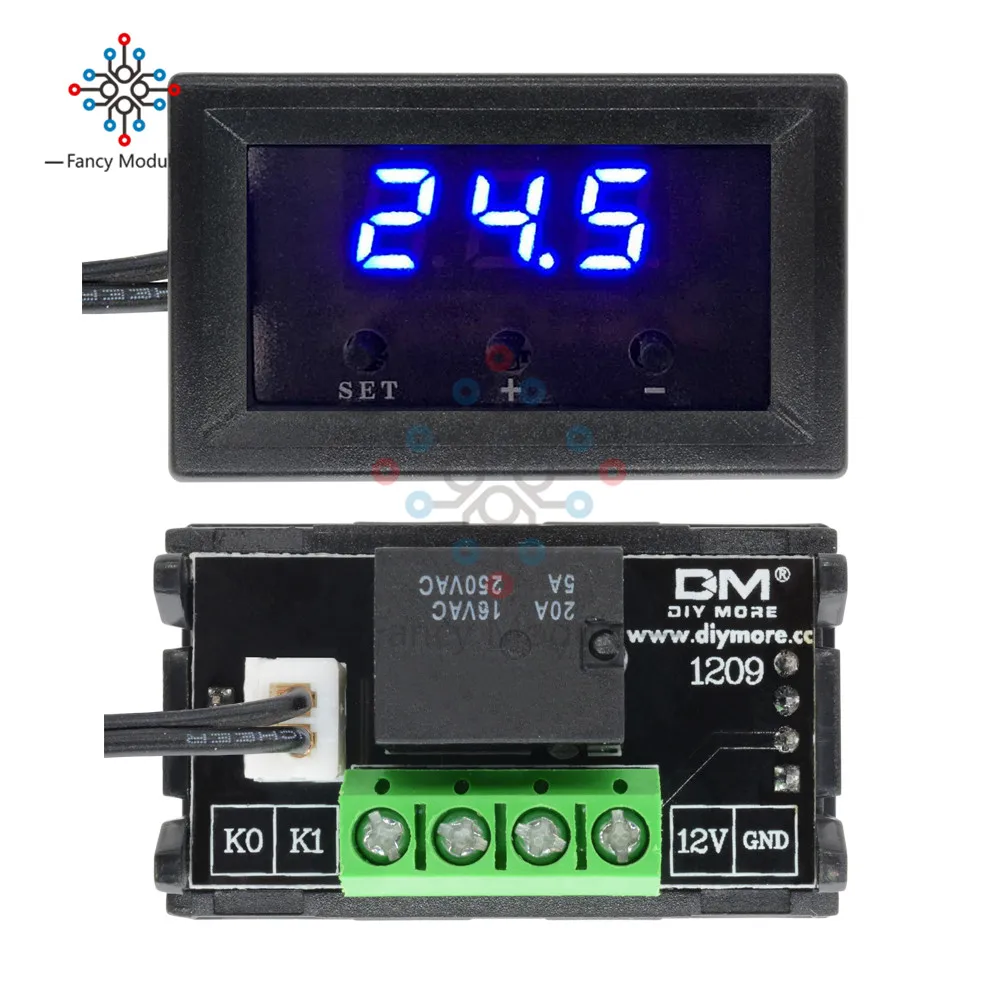

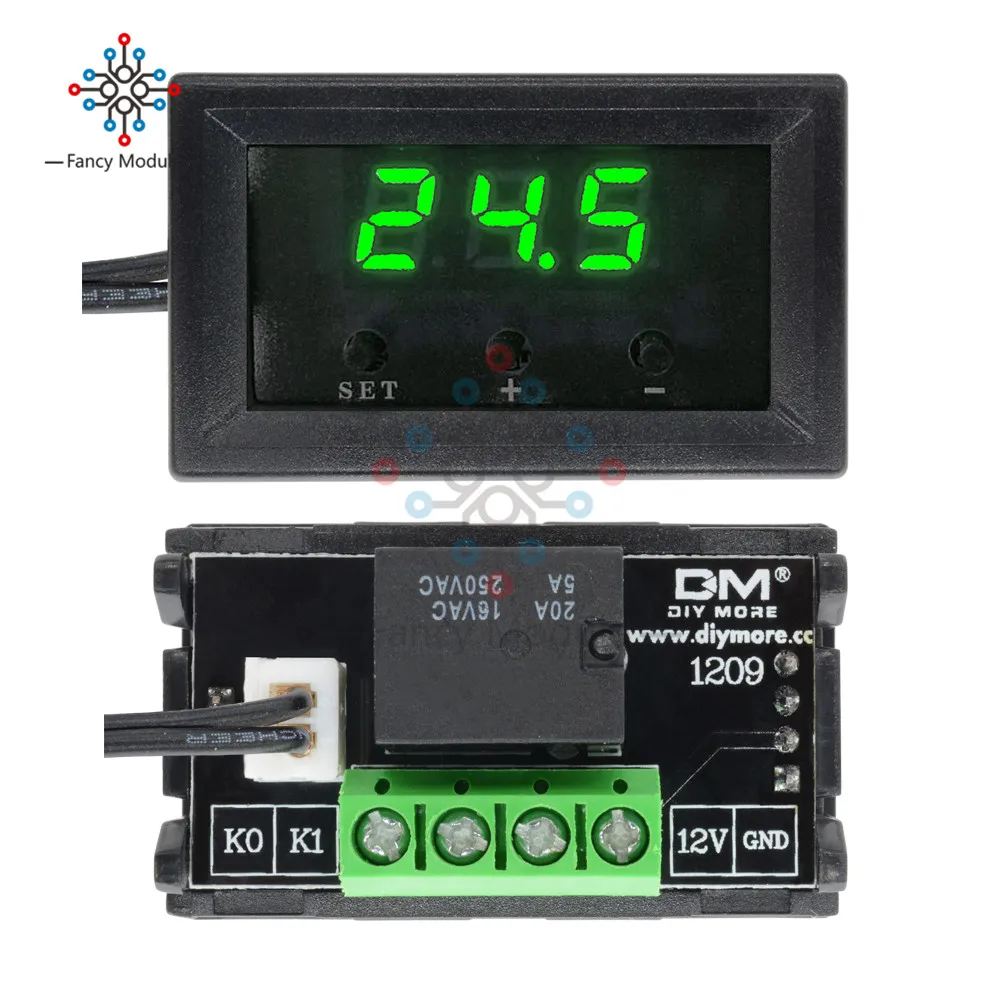

W1209 W1209WK Digital Thermostat Temperature Controller DC 12V Regulator Thermoregulator Thermometer Cool Heat Control Switch |

W1209 W1209WK Digital Thermostat Temperature Controller DC 12V Regulator Thermoregulator Thermometer Cool Heat Control Switch |

Description:

1. product features

① complete machine patch, wave soldering, stable performance, good consistency

② with a shell, more beautiful and practical

③ embedded central processor chip (MCU), smarter, lower power consumption

④ power-off setting automatic memory (MCU built-in EEPROM storage unit)

⑤ control accuracy of 0.1 degrees Celsius

⑥ the setback of 0.1, can control the decimal (0.1-15.0)

2. technical parameters

Temperature control range: -50~110°C

Resolution: -9.9~99.9 when 0.1 °C Other temperature range 1 °C

Temperature measurement accuracy: 0.1 °C

Control accuracy: 0.1 °C

Hysteresis accuracy: 0.1 °C

Refresh rate: 0.5 S

Display type: 0.28 inch three digital tube

Input power: DC 12V

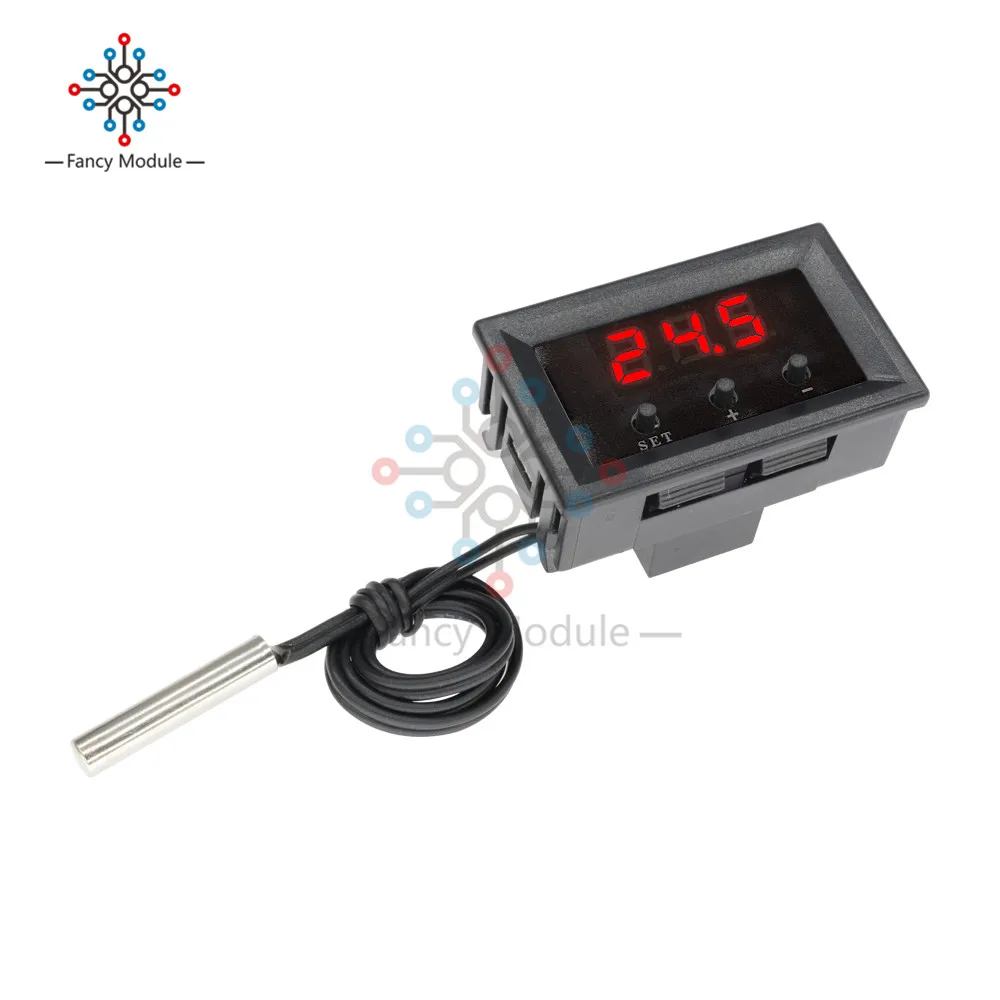

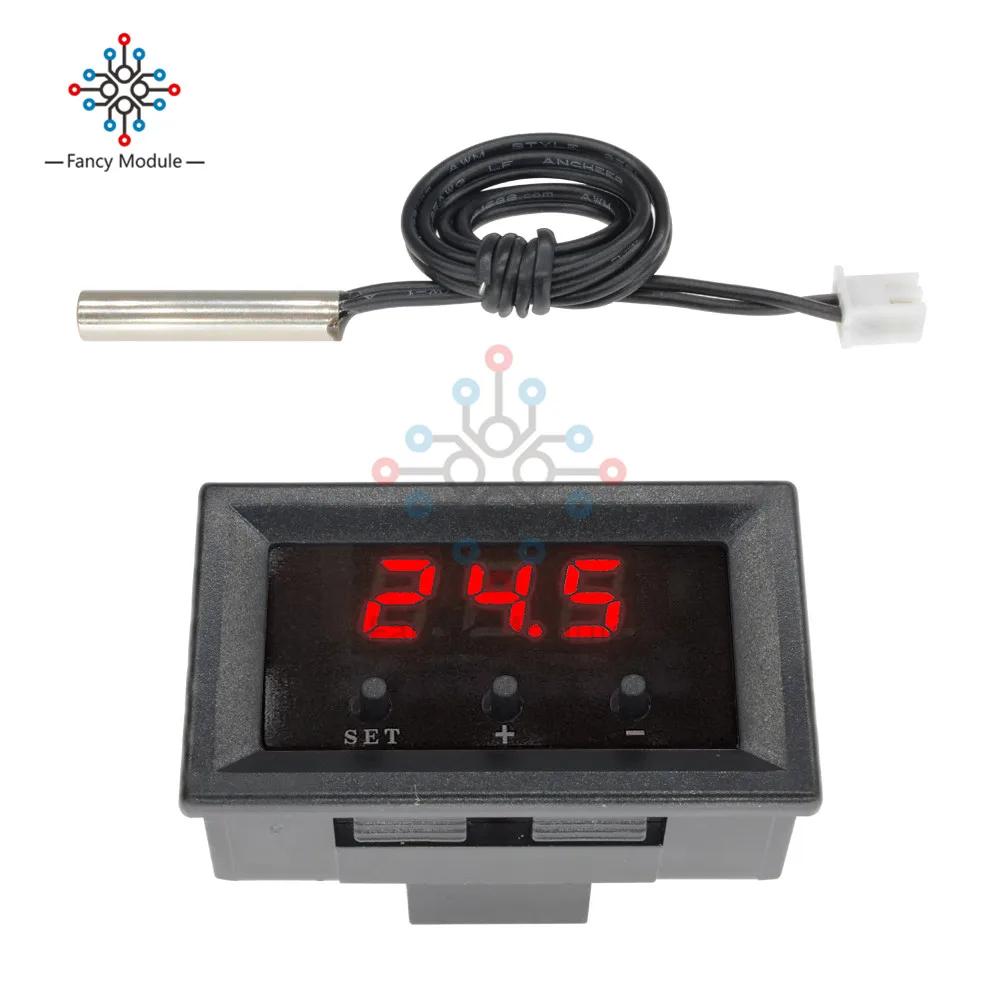

Measurement input: NTC (10K 0.5%) Waterproof sensor Line length 30cm

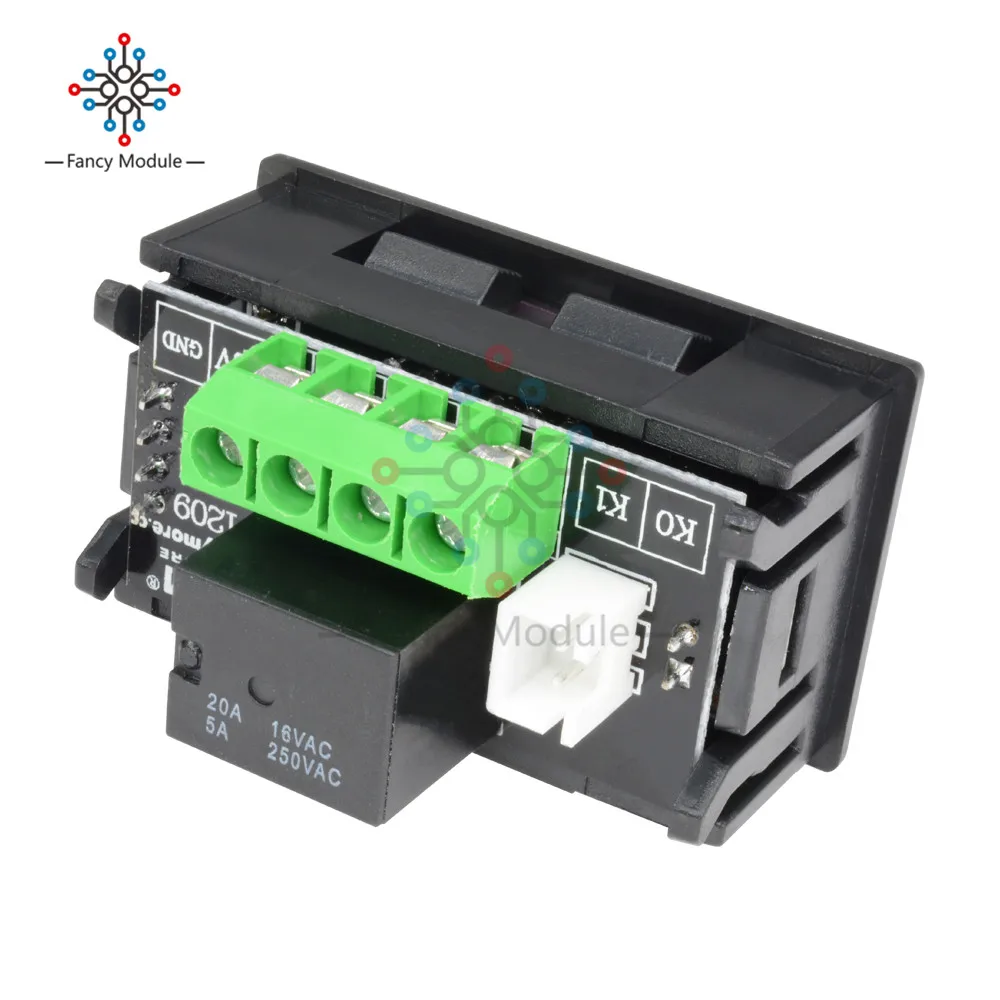

Output: 1 relay output, 5A 250VAC, 20A 16VAC

Environmental requirements: -10~60°C Humidity 20%-85%

Size: 47.5*18.5*31.5mm

Power consumption of the whole machine: quiescent current: ≤10MA Pull-in current: ≤65MA

3. the method of use

Connect the power supply and equipment to supply power to the thermostat. At this time, the temperature is displayed. Press the SET button, the display temperature will flash, press +- to set the desired temperature (press +- to quickly raise and lower) After finishing, press SET to confirm the return. At this time, the thermostat automatically performs relay on/off according to the setting!

4. the indicator light and digital tube status description

Indicator light: The yellow indicator light is always on, indicating that the relay is closed.

Digital tube: Display LLL is the sensor open circuit, please follow the instructions to connect the sensor; display HHH is out of the measurement range, the thermostat will force the relay to open

5. parameter function description

Press and hold SET for 5 seconds to enter the main menu settings, press +- to switch P0...P6, long press SET or 5 seconds without key action, the thermostat automatically confirms the return.

P0 cooling and heating mode (factory is cooling mode)

P1 hysteresis setting (factory value 2 ° C)

P2 upper temperature setting upper limit (factory value 110 °C)

P3 lowest temperature setting lower limit (factory value -50 °C)

P4 temperature correction (factory value 0 ° C)

P5 delay time (factory value 0 minutes)

Restore factory settings:In the off state, press and hold the + and - buttons simultaneously, then turn on the power, the digital tube displays 888 and all parameters are restored to the factory defaults.

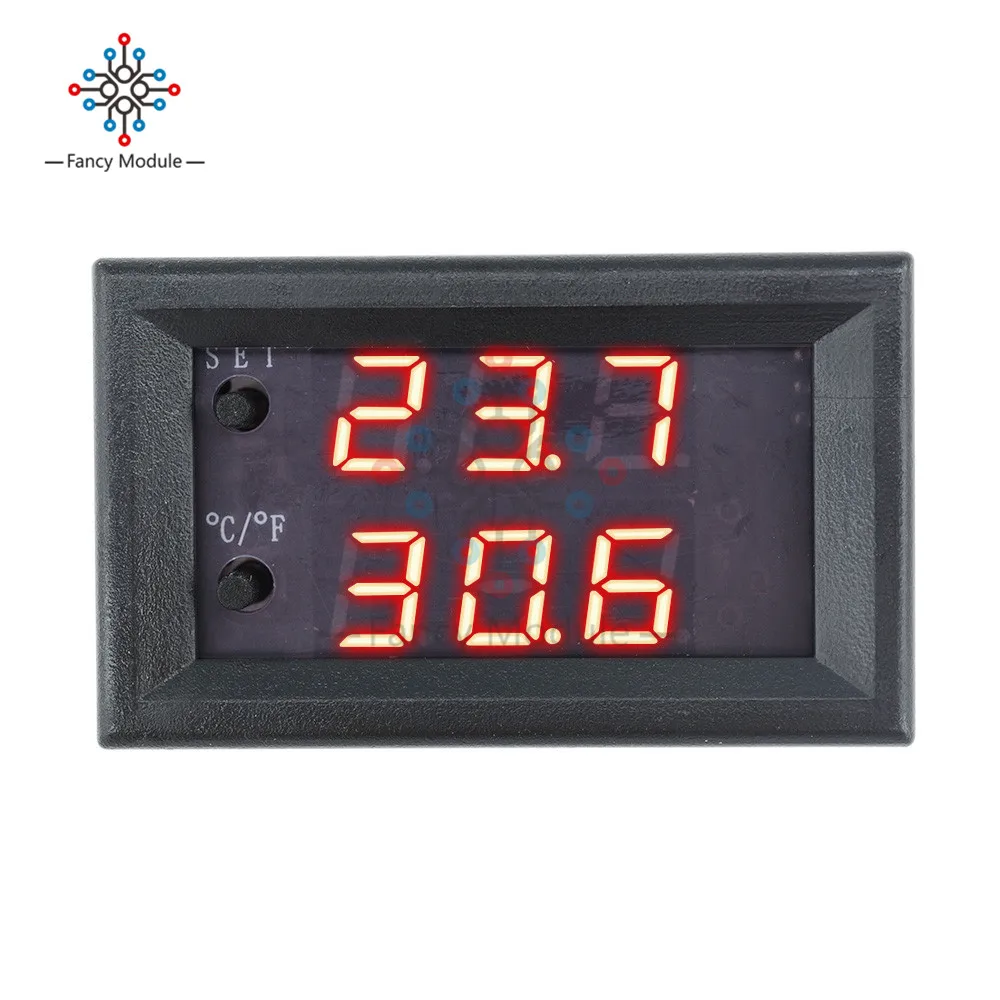

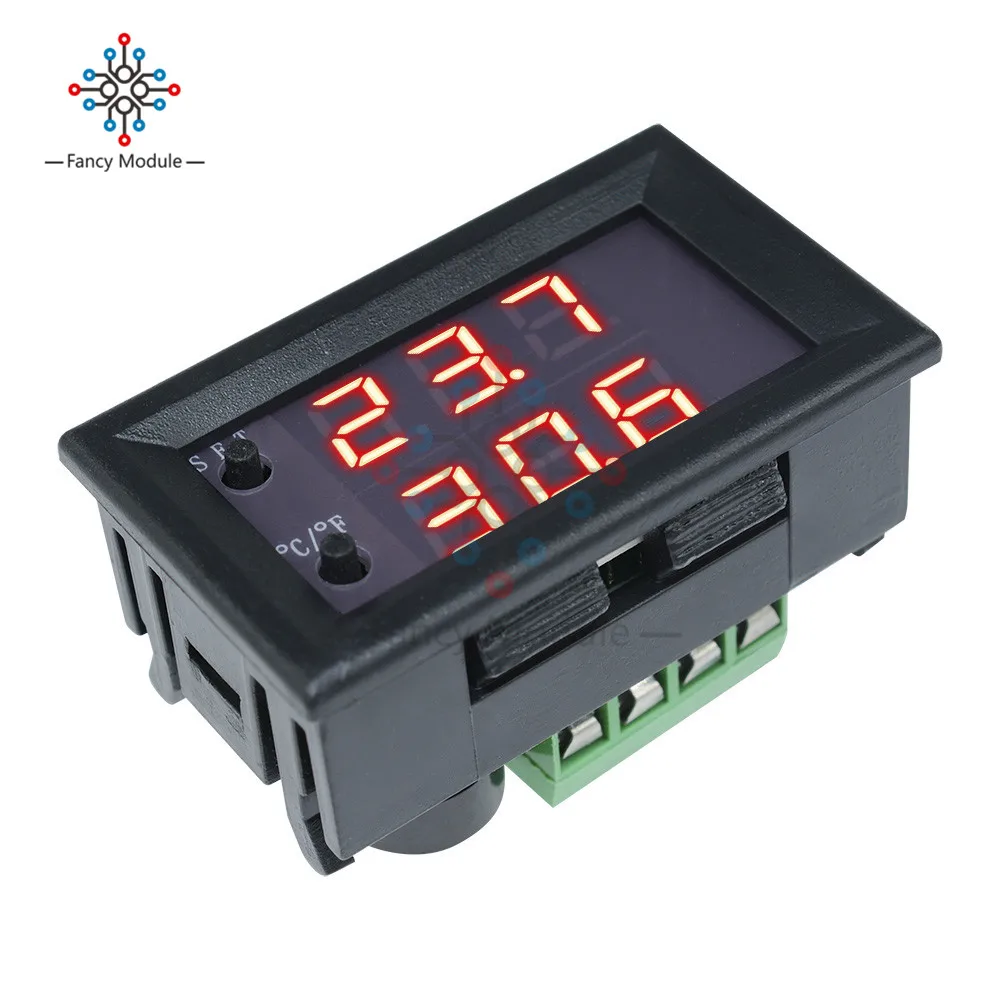

Description:

Temperature measurement range:-50 Celsius-110 Celsius
Temperature 0.1,other paragraph 1 Celsius
Accuracy:0.1Celsius
Return difference accuracy:0.1Celsius
Refresh rate:0.5s
High temperature protection:0-110Celsius
The input voltage:DC12V

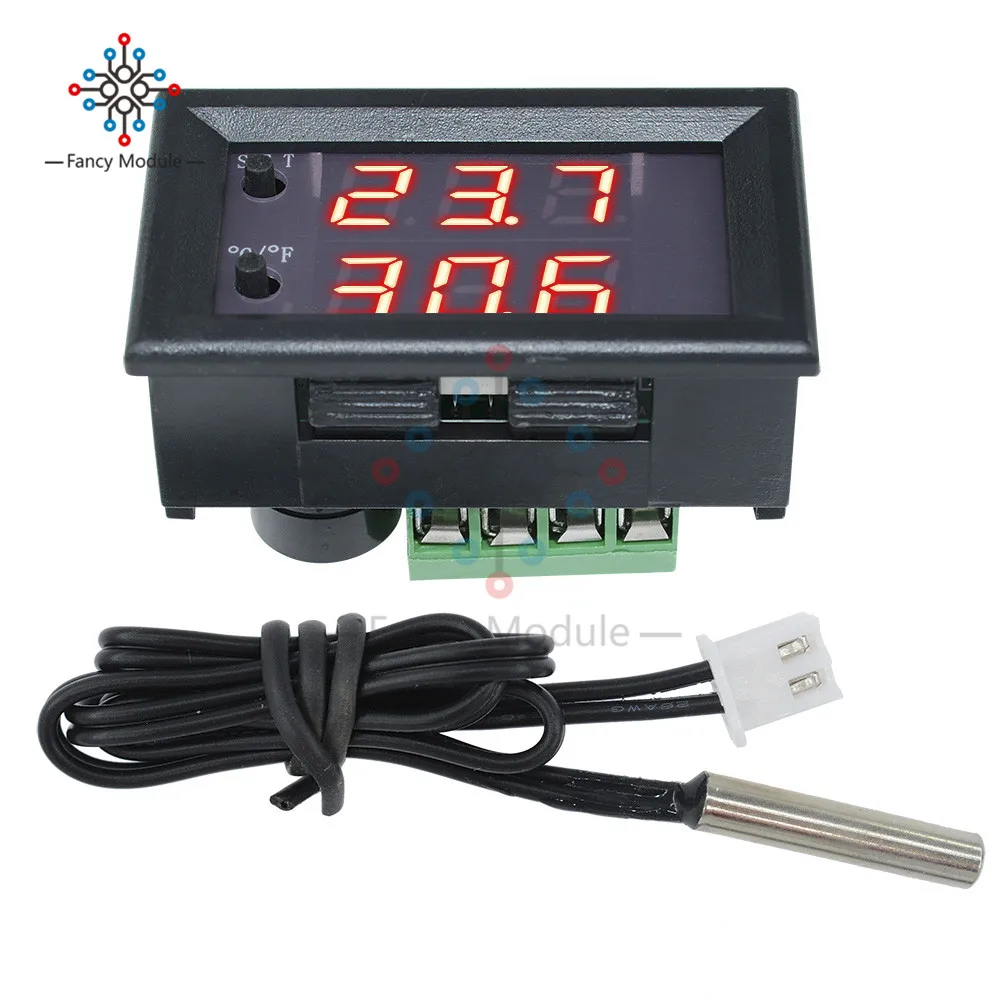

Measurement input:NTC (10K 0.5%) waterproof type sensor
Output:10 a relay all the way
Environmental requirements:-10Celsius,-60Celsius humidity 20%-85%
Size:48mm(length) x 29mm(width) x 32mm
Hole size:46 x 26.5mm
