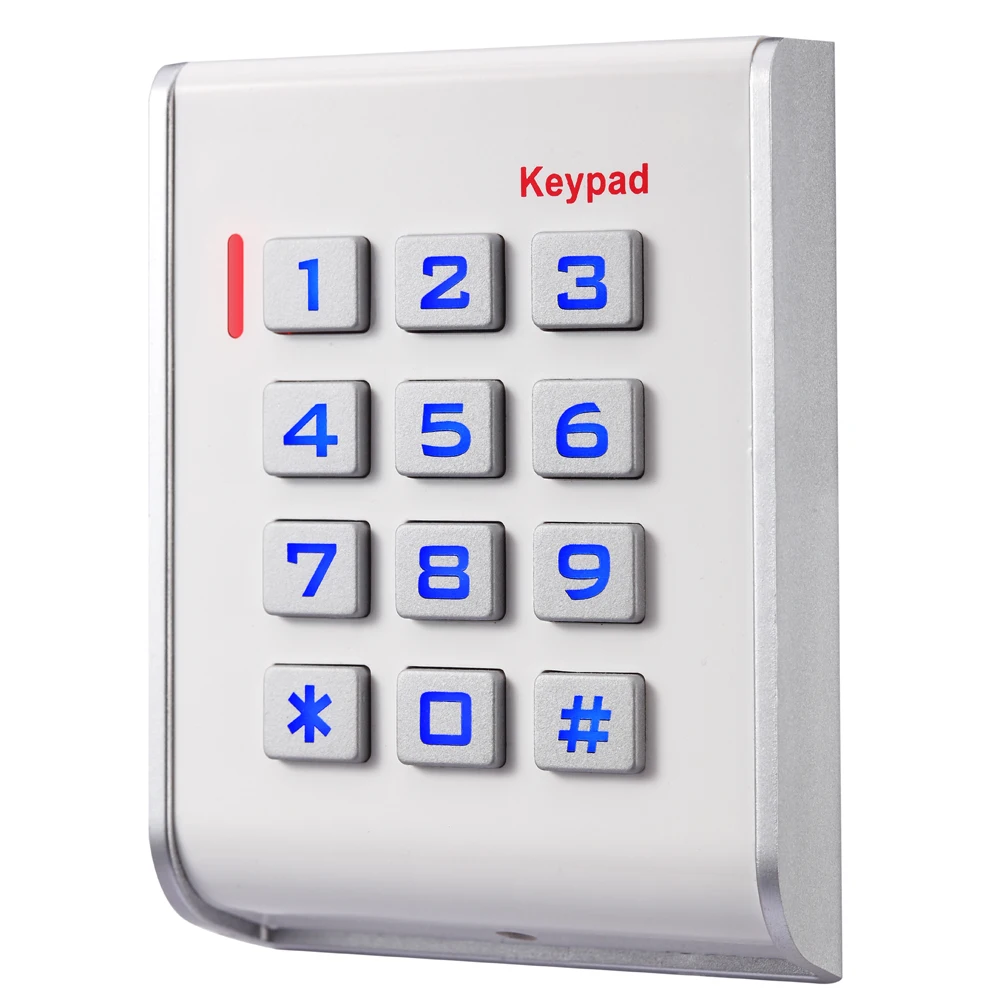

      The product is Contact-less inductive card Password Access Controller. It is one of the most advanced stand alone access controller. It uses Dexterity keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety and reliability is extremely high, can provide a powerful security for 2,000 users. It has strong functions, such as low power consumption, Luminous keyboard, independent passwords, wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition alarm, exit button, level of security Settings, etc. widely used in home, office, residential area and other public places.

   Low power consumption: less than 30mA standby current

   Luminous keyboard: the night can also operate keyboard

User capacity: support 2,000 users

Independent password: can use password which irrelevant with the card to open the door

User modification password: Users can revise the door password

Search speed: charge to open the door time less than 0.1 S.

Output short circuit protection: electric lock or alarm output circuit within 100 μS when shut down automatically output

Wiegand output: With Wiegand output interface,Wg26 card number

Usable keyboard delete card number: After card is lost, usable keyboard delete card, Thoroughly eliminate safety lapses

The demolition alarm: Illegal dismantling machine, built-in alarm sound buzzer

Work Voltage: DC12V

Static Current:≤30mA

Reading Range:3～8cm

Capacity: 2000 users

Ambient Temperature:-25°～60°

Ambient Humidity:10%～90%

Electricity lock output:≤3A

Alarm output:≤20A

Output short circuit protection time:≤100μS

Open time:0 ~ 99 seconds (adjustable)

Size:96 *73*20mm

Packing list

Name

Model/specification

Quantity

Note

Metal waterproof access control

access control

1

User manual

 access control

1

Tapping screws

Φ4mm×28 mm

4

Used for installation fixed

Stopper

Φ6mm×30 mm

4

Used for installation fixed

Star screwdriver

Φ20mm×60mm

1

Secial

Star screws

Φ3mm×6mm

1

Used between the front cover and back cover for a fixed

* Before the installation on the wall, if you want to punch, please check carefully wiring or line tube, prevent drilling broken wiring etc unnecessary trouble, please use safe glasses when drilling or fixed line clip.

* If product upgrades, specifications will likely differ, without prior notice.
