Feature:

Fully DVB Compliant and H.264/MPEG-2/MPEG-4/AVS.

Support Full / Blind Search on Single / Multiple Satellites.

Support Auto / Manual Search on Terrestrial Network.

Support DiSEqC 1.0 / 1.1 / 1.2 / USALS / Unicable.

Powerful Service Control by Favorites, Lock, Skip, Move, Rename & Delete.

Support 7-day EPG, Event Recording by EPG.

Support Multi-Language (OSD & Menu).

Description:

Item type:Smart Digital Satellite TV Receiver DVB-T2+DVB-S2

Hardware:

CPU: Montage VT6000

Memory: 32X16Mbit DDR2 f #400MHz, Flash: 4M bytes

Demodulator Type: M88DM6000

S2 TUNER: M88TS2022

T2 TUNER: MaxLinear MXL 608

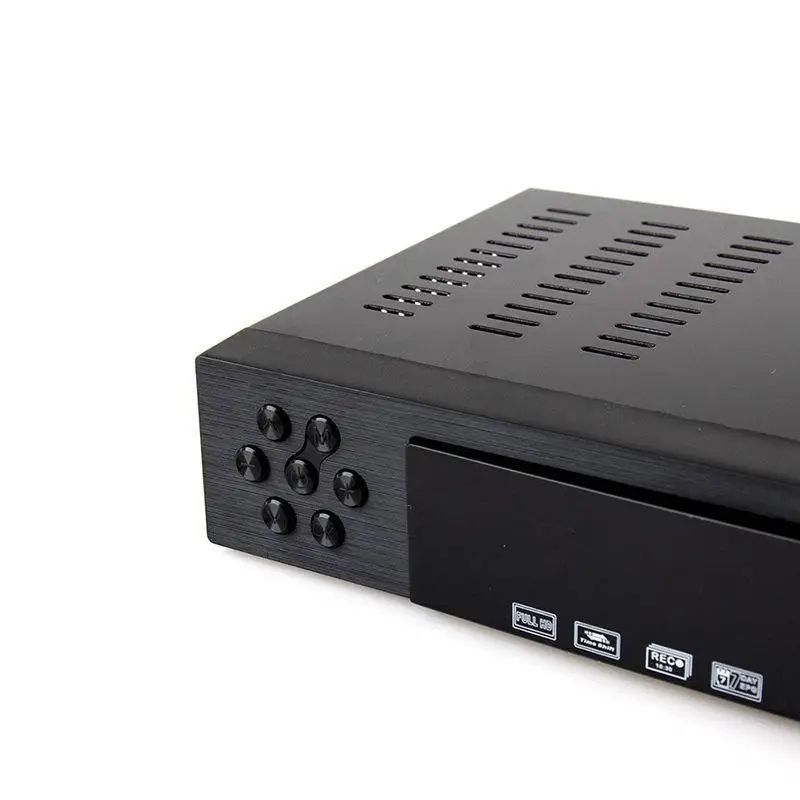

Front Panel: USB 2.0 Embedded One Host,

4-digit LED display on front panel

Red LED Standby,green LED Lock

Panel KEY, POWER, CH+ ,CH-

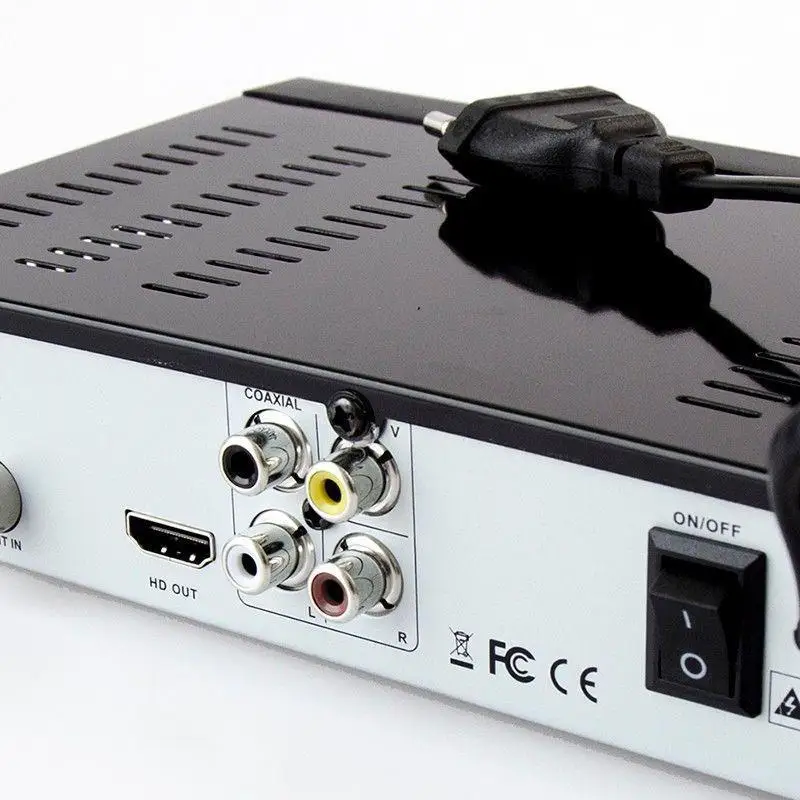

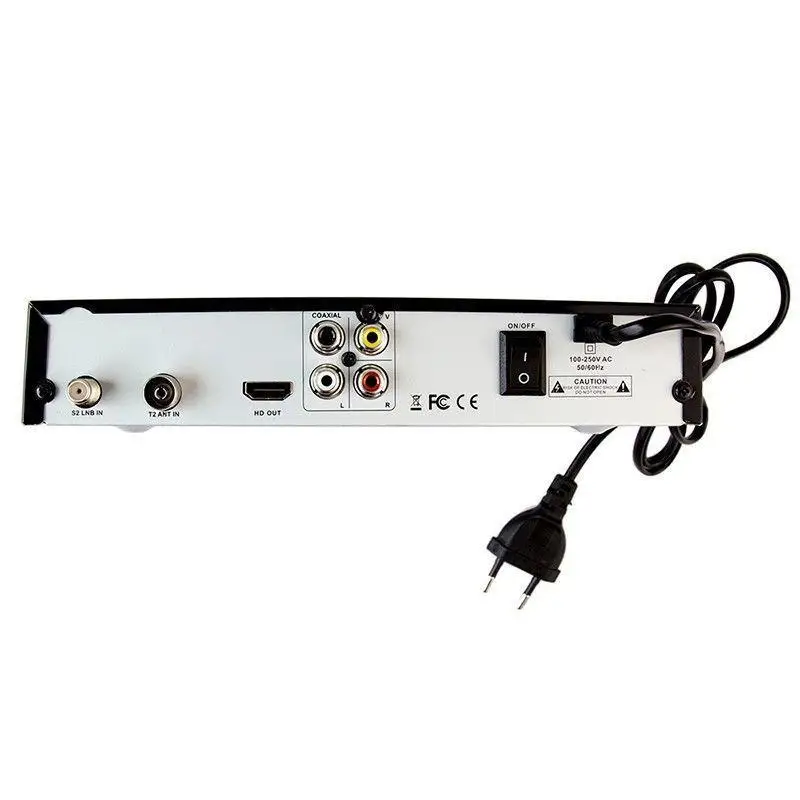

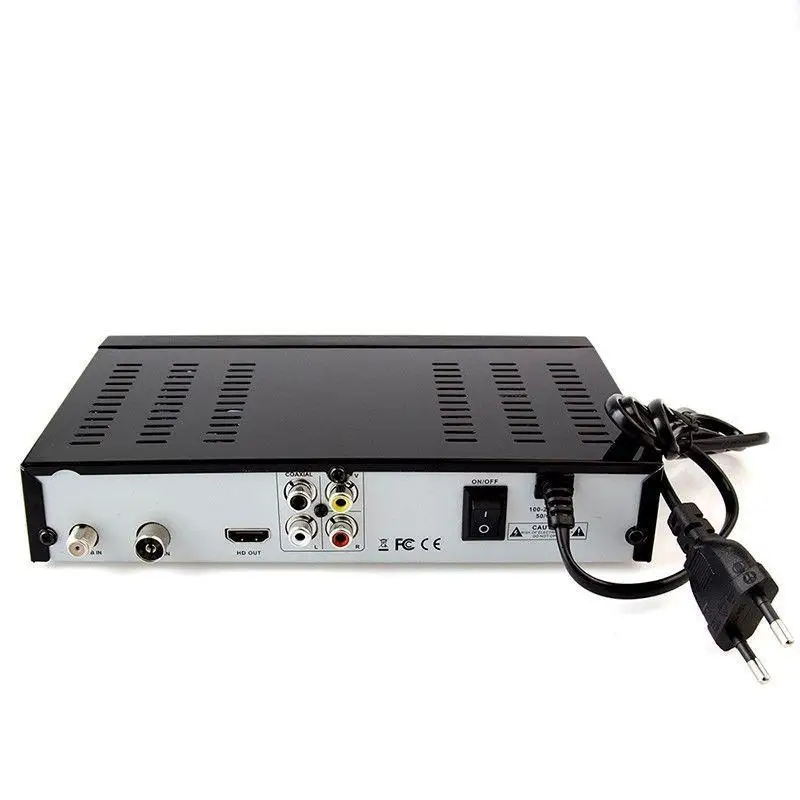

Rear Panel: S2 LNB IN input connector IEC60169-2

T2 ANT input connector IEC-162-2(IEC Female)

HDMI V1.3, RCA CVBS AL AR Connector x1

Ypbpr RCAx1, Coaxial x1, Power AC100~240V 50Hz/60Hz

DVB-T2 Demodulation :

Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)

Input RF Frequency 48~866MHZ, Bandwidth6MHz,7MHz,8MHz

Constellation QPSK 16-QAM 64-QAM and 256-QAM

FEC 1/2, 3/5,2/3, 3/4,4/5,5/6

Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4

FFT Mode 2K/ 8K/32K, Support Single and multiple PLPS

Input level -83~ -5dBm

DVB-S2 Channel Decoder :

Frequency Range 950MHz-2150MHz, Sensitivity Level - 10~ - 81dBm

Mode IFFT 2k,8k, FEC Mode 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Guard intervals 1/4,1/8,1/16,1/32, Constellation QPSK.8PSK.16APSK.

Support bisskey,Not support Dobly(AC-3)

Neighboring channels

immunity and Protection According to ETSI TR 101 190 V1.2.1

Active Ant Power 13/18V DC # 500mA MAX,Overload Protection

Fully DVB Compliant and H.264/MPEG-2/MPEG-4/AVS

Support Full / Blind Search on Single / Multiple Satellites

Support Auto / Manual Search on Terrestrial Network

Support DiSEqC 1.0 / 1.1 / 1.2 / USALS / Unicable

Powerful Service Control by Favorites, Lock, Skip, Move, Rename & Delete

Support 7-day EPG, Event Recording by EPG

Support Multi-Language (OSD & Menu)

Maximum 4000 Service Programmable

TV System: Auto / PAL / NTSC

Aspect Mode: Auto / 4:3LetterBox / 4:3PanScan / 16:9

Video Output Resolution: 480i/576i/480p/576p/720p/1080i/1080P

Support Audio Description (Thailand Standard)

Support Teletext, Subtitle

Support Find / Zoom

Support Parental Lock

Support Software Upgrade by OTA/USB

USB 2.0 Host Support (Time Shift, PVR, MP3 Player & Picture Viewer Media Player)

Video Decoder

MPEG2 MP#ML for SD

MPEG2 MP#HL for HD

H.264/AVC MP#L3.0 for SD

H.264/AVC HP#L4.1 for HD

AVS Jizhun profile #L6.0

MPEG4 Simple profile # all levels

MPEG4 Advanced Simple Profile# L5 without GMC, data partitioning and Reversible VLC.

MPEG4 Xvid1.3.2 without GMC

MPEG4 DivX without GMC

MPEG4 H263 baseline profile

Audio Decoder

MPEG-1 LayerI Layer II Musicam

MPEG-2 AAC-LC

MPEG4 HE-AAC

AAC 5.1

Powerful Multimedia Features

Media Codec mpeg2, m2ts, ts, avi, mkv, asf, 3g2, 3gp, mp4, mov, flv, f4v, vob, dvix

Audio Codec wav, mp3

Photo Codec jpeg, gif, bmp, png

Package Include:

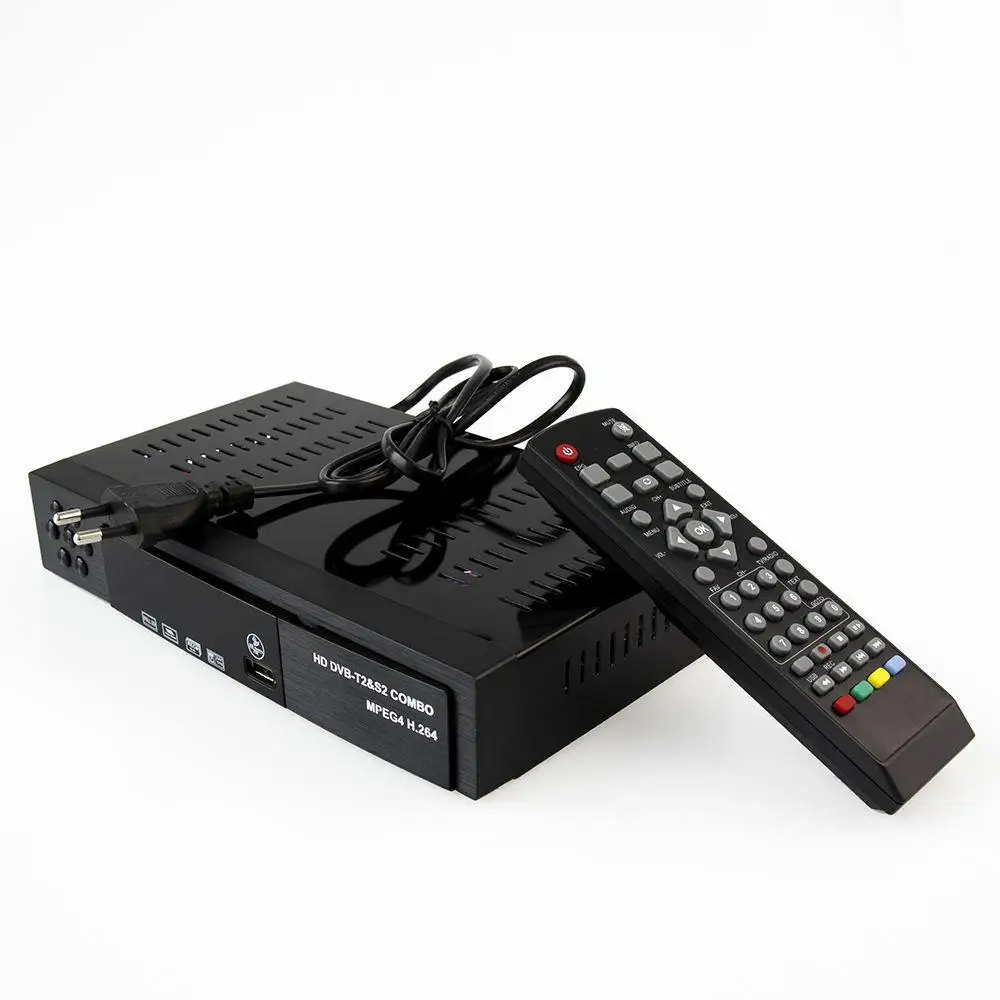

1x Smart Digital Satellite TV Receiver DVB-T2+DVB-S2

Note:

The colors deviation might differ due to different monitor settings.
