Hwato sdz-iii Electro Muscle Stimulation Massager Acupuncture Needle Electrical Therapy Machine 3 Waveform | Красота и здоровье

Hwato sdz-ii electro muscle stimulation massager electric acupuncture needle electrical stimulation therapy machine 3 waveform

If you need an English user manual, please leave a message under the order: email address. I will send it to your email address.

Electro Acupuncture Stimulators
SDZ - III(Upgrade)
hwato brand

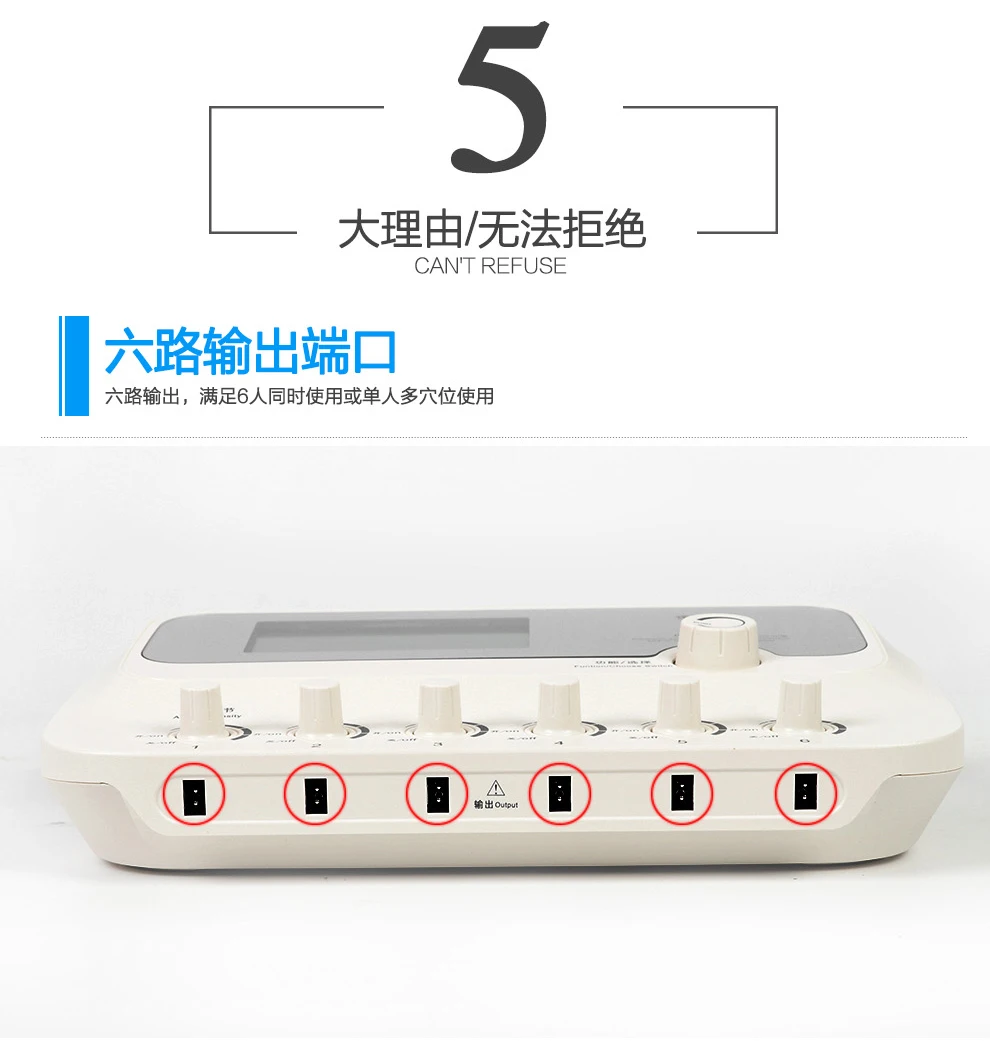

6 outputs

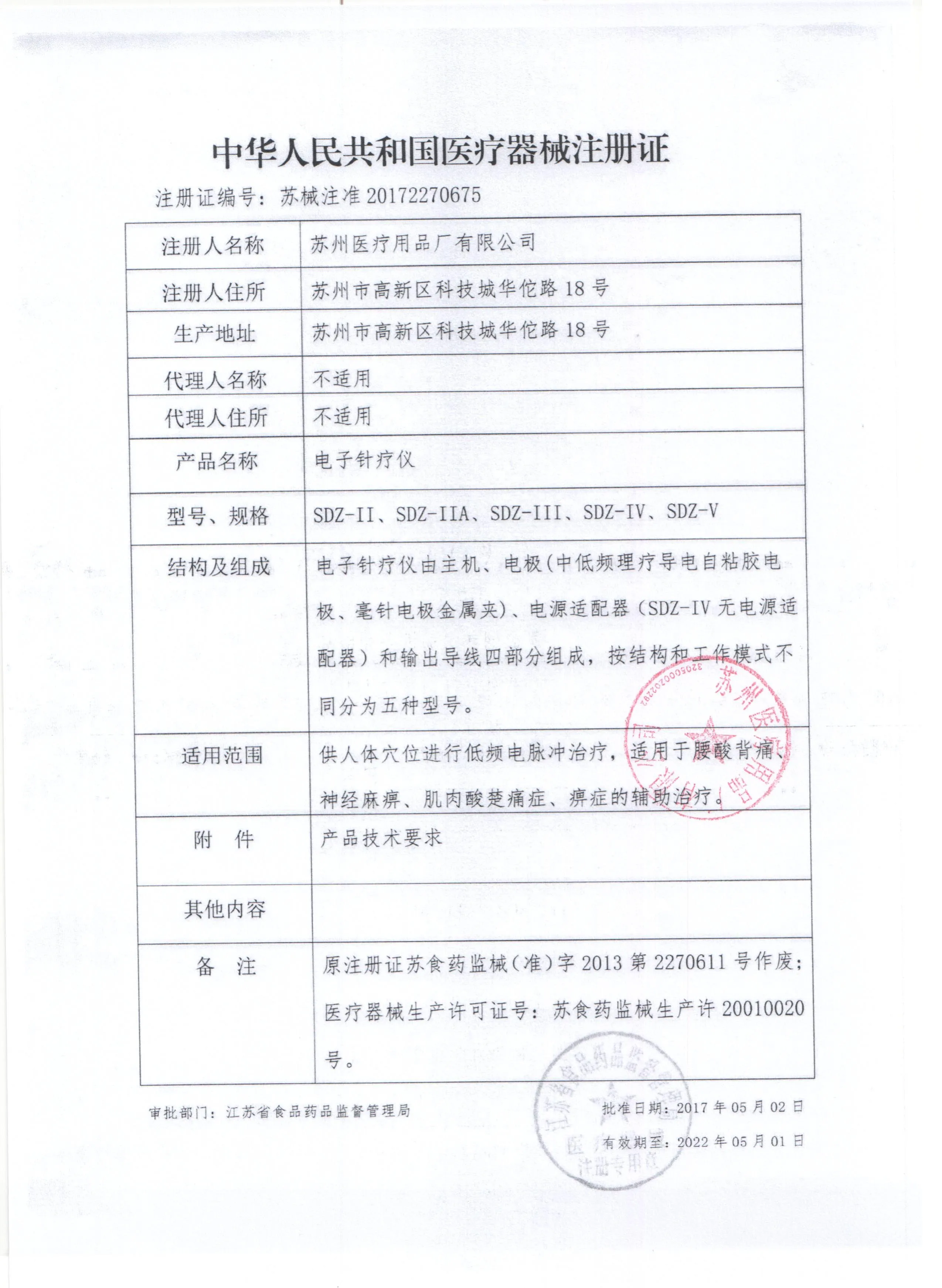

CE certificate

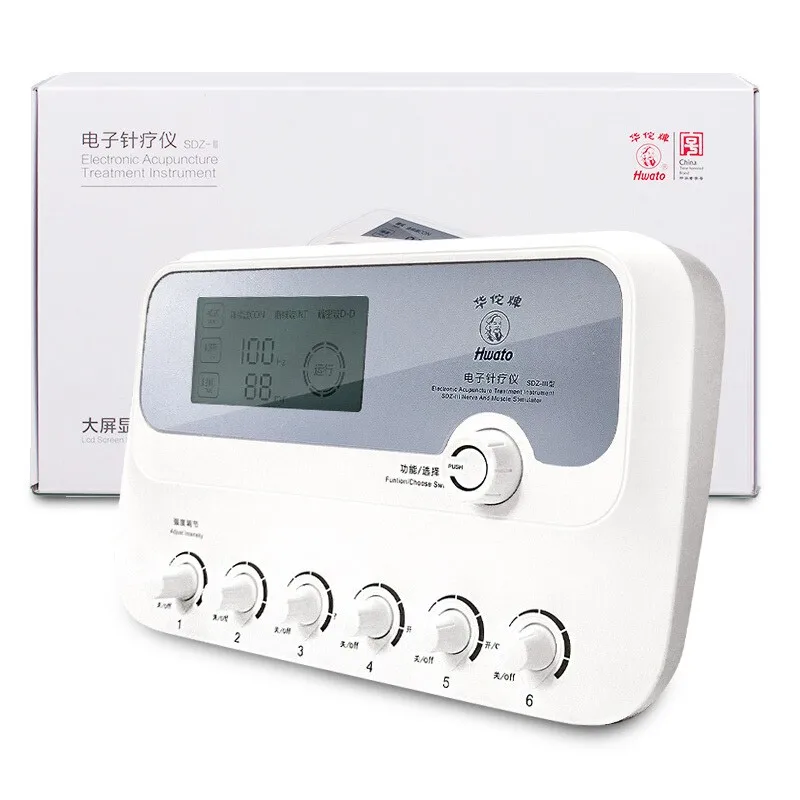

INTRODUCTION:  SDZ-III Electronic Acupuncture Treatment Instrument( Nerve and Muscle Stimulator ) is combined modern micro computer technique with traditional Chinese Medicine Acupuncture and Meridian Theory, based on the traditional SDZ series of electronic acupuncture treatment instrument. It consists of the generator, electrodes, AC Adapter and output wires four parts.lt doesn't contain acupuncture needles, but with Filiform Needle Electrode Metal Clip. Can use acupuncture needles as Electric-Acupuncture therapy, and recommend to use disposable acupuncture needles.    INTENDED USE:  SDZ-Ill Nerve and Muscle Stimulator is used for applying low frequency pulse to stimulate the acupoints of human body, may be used to apply an electrical current to electrodes on a patient 's skin to treat pain, which is indicated for use in the practice of acupuncture by qualified practitioners of acupuncture.

Application:
1. Improve the sleep quality
2. Eliminating physical fatigue caused by long-time work
3. Cleaning meridian relaxing muscles and joints
4. Pain relief enhance human immunity
5. Stay away from the sub-health
6. Enhancing circulation system of body

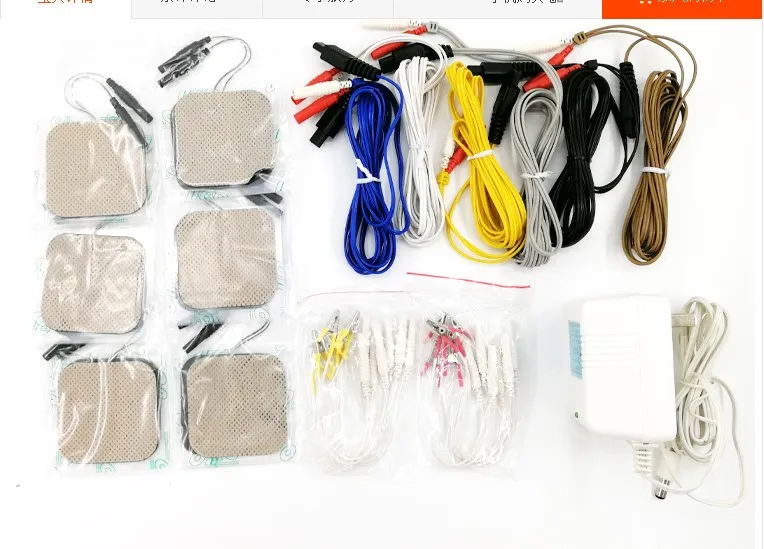

TECHNICAL SPECIFICATIONS:  • Output Pulse Wave: un-symmetry bi-direction pulse wave  • Pulse Frequency: frequency adjustable in 1 - 100Hz, ± 15% tolerance • Output pulse frequency:  ► Continuous Wave: 1-100Hz adjustable continuously  ► Intermittent Wave: Continuous Wave frequency 1-100Hz adjustable continuously; interval time between Continuous Wave groups 5 sec, duration time of Continuous Wave 15 secretary.  ► Distant-dense Wave: frequency of distant wave is one fifth of the frequency of dense wave, frequency of dense wave is 5-100Hz adjustable, the duration time of distant wave 5sec, the duration time of dense wave 10 secretary. • Output Pulse width: 0.20 ms ± 30% (EMC TEST) • Output current: <10mA (Load 250Ω) • Output Pulse channel: 6 channels  • Power supply:  ► Power DC9V .1MIntemal Electrical Power Source or AC Adapter (input AC220V 50HzJAC1101/ 60Hz; output DC9V)  • Input power: 10VA • Output power: 0.3VA (Load 250Ω) • Volume: 210mm x 100mm x 300mm • Quality: 0.7 kg   ACCESSORIES:  • Six pieces of output electrode wires  • Six pairs of Self-adhesive electrode ( size: 50min x 50mm)  • Six pairs of Metal clamp • One user manua  • One certificate of product quality conformity  • One foam box against shock

If you need an English user manual, please leave a message under the order: email address. I will send it to your email address.
